Mercedes A1248303896 - Шланг

300 TE-24,AMG 300 TE 3.4 200-300 9/89-10/92, 200D-300D 9/89-7/93 124.091

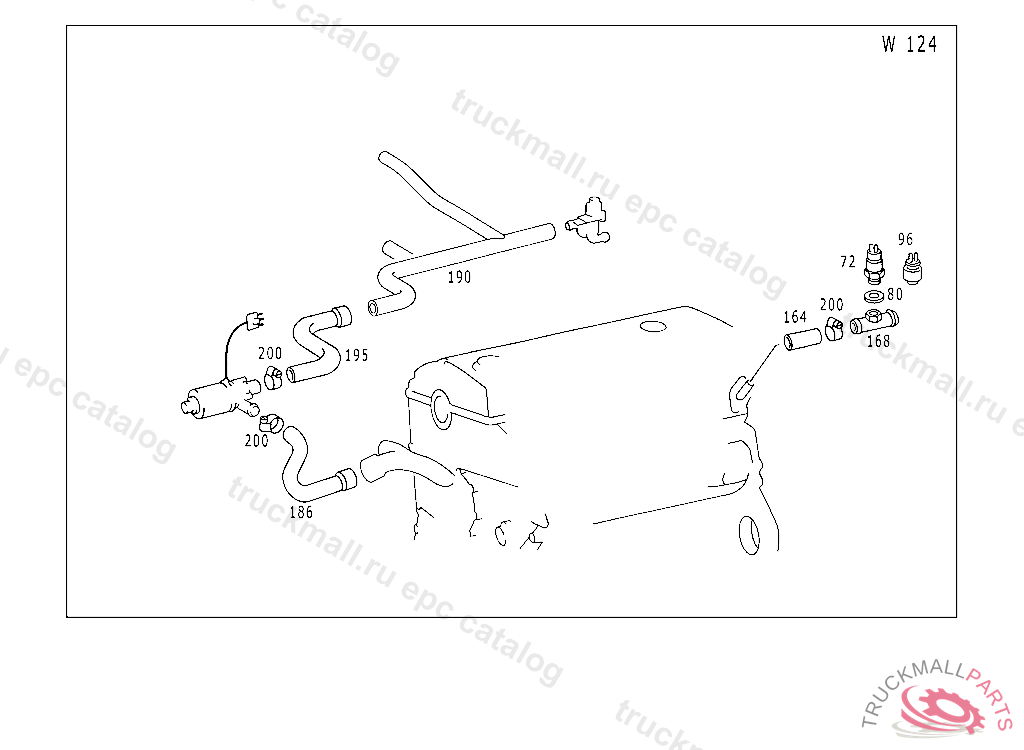

83 HEATING AND VENTILATION - 001 HEATING WITH RESIDUAL HEAT UTILIZATION IL.3

Поз.
Артикул
Описание
72
A0065454324
SWITCH,AUTOMATIC FEED LINE
80
N007603014100
SEAL RING
96
A2018210325
PLUG IN PLACE OF TEMPERATURE SWITCH
164
N900271018036
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
168
A1238301816
PIPE LINE FROM ENGINE TO HEAT EXCHANGER
168
A1248303415
PIPE LINE FROM ENGINE TO HEAT EXCHANGER, B 261792 B 976852 F 258571
186
A1248303896
HOSE FROM RECIRCULATING PUMP TO ENGINE
186
A1248329094
HOSE FROM RECIRCULATING PUMP TO ENGINE
190
A1248329494
HOSE FROM DOUBLE WATER VALVE TO RECIRCULATING PUMP,5/91
195
A1248325894
HOSE FROM DOUBLE WATER VALVE TO RECIRCULATING PUMP,F 016102
200
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
200
N916026020001
CLAMP , Replaced By: N000000000667
999
A2018300661
HEATER UNIT RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
