Mercedes N304017006018 - Болт

320 TE / E 320 / E36 AMG 200-320 FROM 10/92, 250D-300D FROM 7/93 124.092

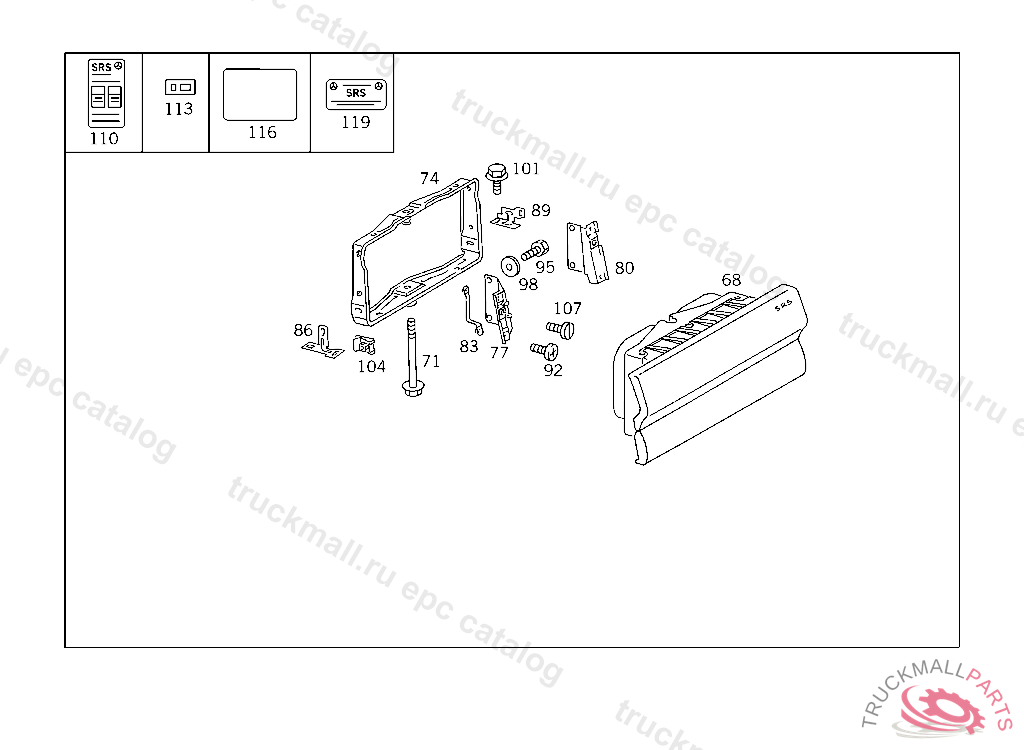

62 FRONT PANEL - 060 FRONT STIFFENING AND RADIATOR SUPPORT

Поз.
Артикул
Описание
68
A1248600305
AIRBAG UNIT , FROM CHASSIS NEW EQUIPMENT 9/89 UP TO CHASSIS NEW EQUIPMENT 7/93 NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6121I NO.3111I NO.7095I
71
A1269900215
SCREW
74
A1246800916
REINFORCEMENT
77
A1246800514
BRACKET INSTRUMENT PANEL,LEFT
80
A1246800414
BRACKET INSTRUMENT PANEL,RIGHT
83
A1246800111
PLATE
86
A1246892314
BRACKET
89
A1246892414
BRACKET
92
N914116006412
SCREW
95
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
98
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
101
N914112006002
SCREW HINGE TO BEARING BRACKET AND TO PAD
104
A1249900091
NUT RETAINER LEFT AND RIGHT BUMPER FACE BARS TO CENTRAL PART
107
A1249900422
SCREW
110
A1268173520
GUIDE SIGN CENTRAL PILLAR,LEFT FAHRER-UND BEIFAHRER-AIRBAG
113
A1268173020
GUIDE SIGN EXPIRY DATE
116
A2028171320
GUIDE SIGN FOOTREST
119
A1268173820
GUIDE SIGN FRONT CROSS MEMBER
