Mercedes A1244400209 -

320 TE / E 320 / E36 AMG 200-320 FROM 10/92, 250D-300D FROM 7/93 124.092

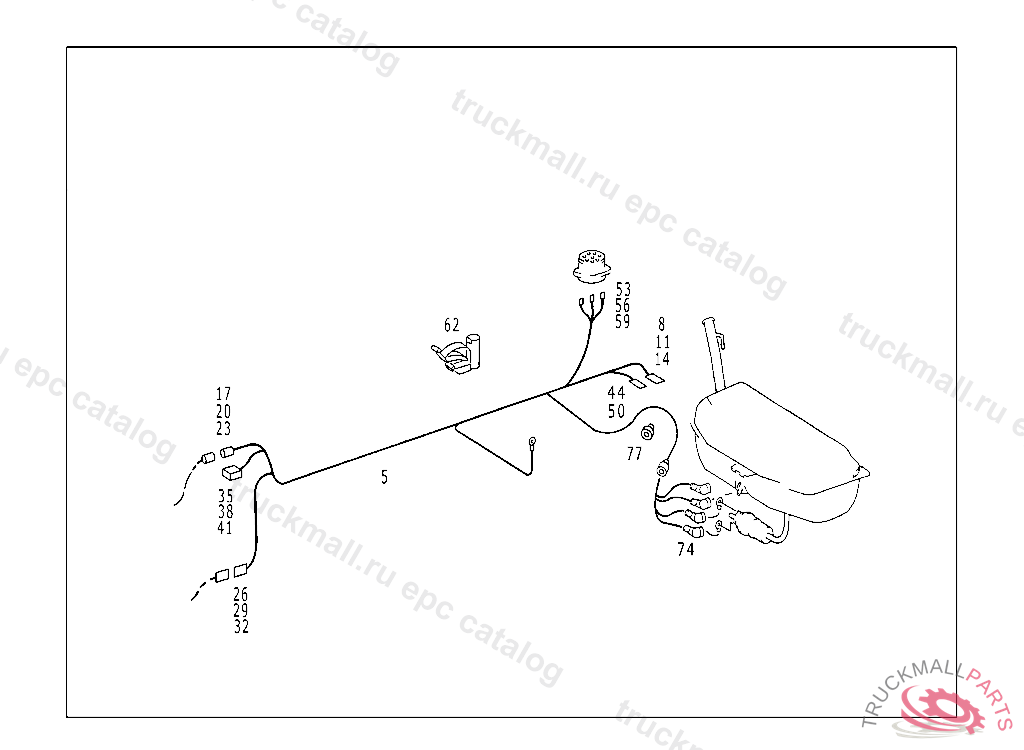

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 535 FUEL PUMP CABLE

Поз.
Артикул
Описание
5
A1244400209
CABLE HARNESS FUEL PUMP & SPEED SENSOR ABS/ASR
5
A1244409508
CABLE HARNESS FUEL PUMP & SPEED SENSOR ABS/ASD
8
A0085450828
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
14
A0015454426
ROUND PIN BUSHING4 MM2
17
A0115451028
PLUG HOUSING MAIN CABLE HARNESS
20
A0095451428
COVERTO 011 545 10 28
23
A0115451228
PLUG PIN
29
A0085451028
COVERTO 008 545 08 28
35
A0065457828
PLUG HOUSING
38
A0095453028
COVER
41
A0015453826
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
44
A0125458628
PIN BUSHING HOUSING TELL-TALE LAMP ASD
50
A0035450626
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
53
A0175458128
PIN BUSHING HOUSING REAR AXLE TRANSFER CASE PLUGCONNECTION E
53
A0175457628
PIN BUSHING HOUSING. PLUG REAR AXLE TRANSFER CASE PLUGCONNECTION A
53
A0175458028
PIN BUSHING HOUSING REAR AXLE TRANSFER CASE PLUGCONNECTION D
56
A0005454140
BRACKETTO 017 545 79 28
59
A0035454826
ROUND PIN BUSHING1 MM
62
A0009957744
CLAMP
74
A1239971681
GROMMET
77
A0089970981
GROMMET FUEL PUMP BRANCH-OFF TO LUGGAGE COMPARTMENT FLOOR
77
A1119971481
GROMMET ENGINE COMPARTMENT LAMP
