Mercedes A1243200714 - БАЧОК РАСШИРИТЕЛЬНЫЙ

320 TE / E 320 / E36 AMG 200-320 FROM 10/92, 250D-300D FROM 7/93 124.092

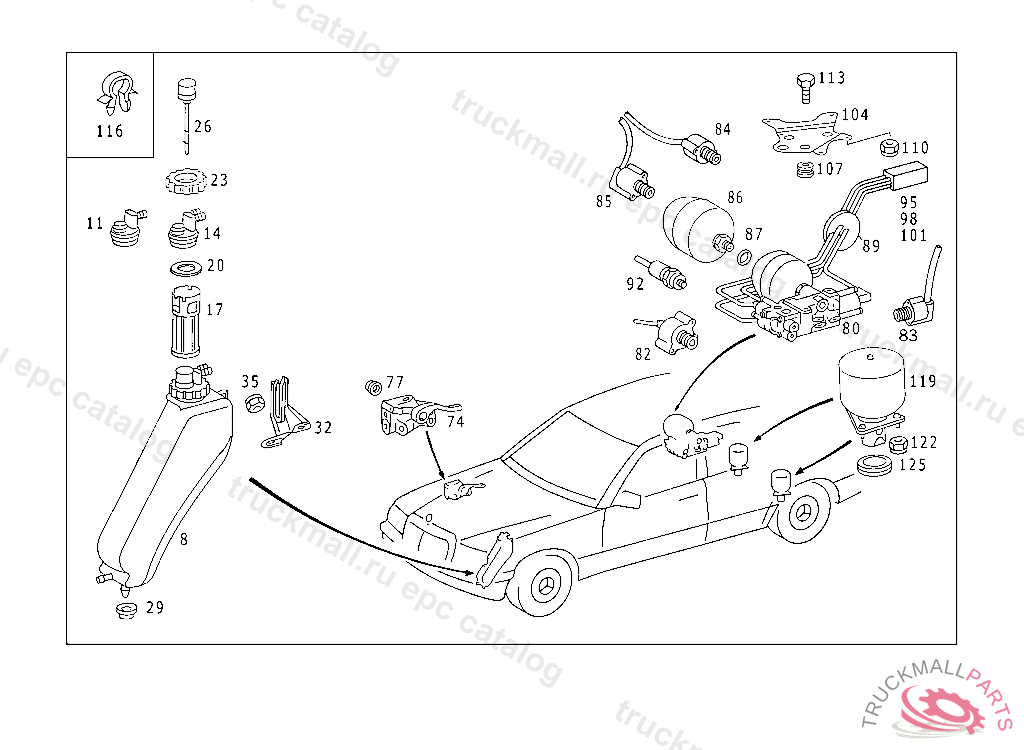

32 SPRINGS,SUSPENSION AND HYDRAULICS - 220 OIL TANK & VALVES OF HYDRAULIC SYSTEM

Поз.
Артикул
Описание
8
A1243200714
RESERVOIR OIL RESERVOIR USED FOR AUTOMATIC LOCKING DIFFERENTIAL (ASD) 4-MATIC
8
A1243200814
RESERVOIR , Replaced By: A1243200714, +001A2013270621
11
A2013270221
COVER SELF-LEVELLING DEVICE OIL RESERVOIR
17
A1293270091
FILTER
20
A2013270060
SEAL RING
23
A2013270072
NUT
26
A2013200259
HOUSING OIL DIPSTICK
29
A1299971681
GROMMET UNDER OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
32
A1243281140
BRACKET OIL RESERVOIR TO LEFT FRONT WHEELHOUSE PANEL
35
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
119
A1243200315
AIR CELL , Replaced By: A1403280215
119
A1403280215
AIR RESERVOIR , Replaced By: A1403280515
119
A1403280515
AIR RESERVOIR (SPRING LOAD ACCUMULATOR)
122
N910113006000
NUT HEATING PIPE TO BRACKET
122
N913004006001
NUT PUMP TO BRACKET
125
A1249970940
SEAL RING SPRING LOAD ACCUMULATOR TO FRAME
