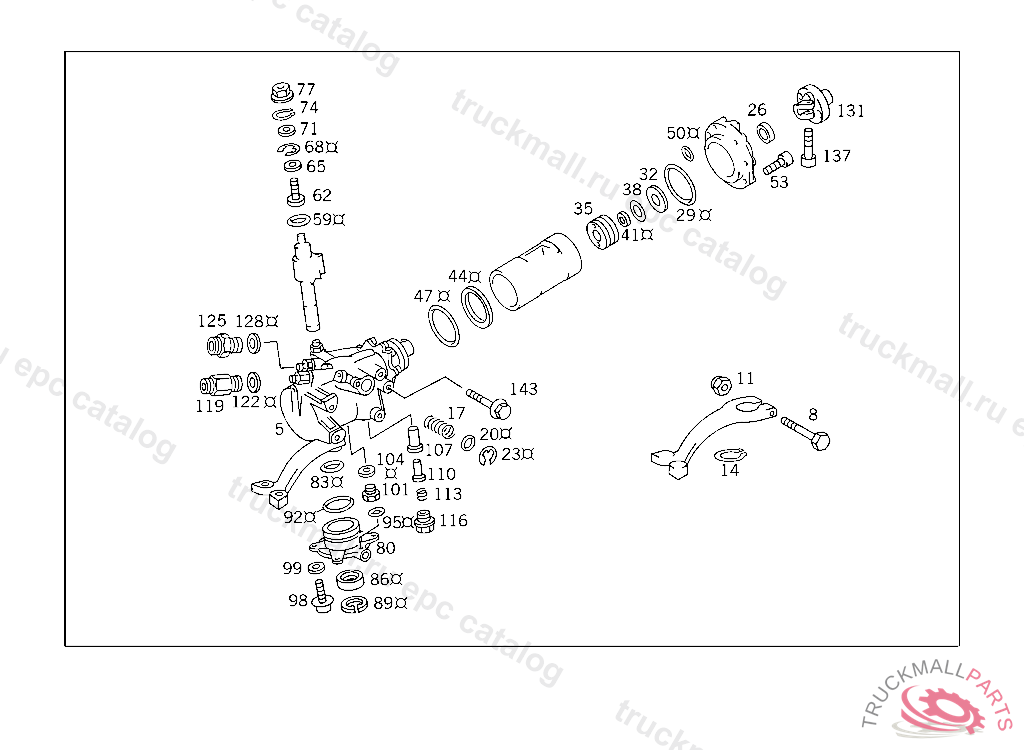

Поз.
Артикул
Описание
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, ONLY APPLICABLE TO VEHICLES WITH SPORTS UNDERCARRIAGE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A1244606301, +001A2019970172
5
STEERING BOX ASSEMBLY , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A1244607201
8
SCREW , Replaced By: N308676010017
8
SCREW CLAMP, ONE-HOLE
11
HEXAGON NUT
11
NUT , Replaced By: N910113010002
14
LOCK RING
14
LOCK PITMAN ARM TO STEERING BOX ASSEMBLY
17
SPRING CONTROL VALVE
20
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
23
LOCK CONTROL VALVE
26
SEAL RING
26
SEAL RING , Replaced By: A0199975147
29
SEAL RING STEERING NUT BEARING 75X3 MM
32
THRUST WASHER
35
THREADED INSERT
38
WASHER
41
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
44
SEAL RING
47
SEAL RING
50
SEAL RING VALVE
53
SCREW. CAP BOLT COVER TO CASE M8X25
53
SCREW , Replaced By: N000912008202
59
SEAL RING
62
SCREW
65
THRUST WASHER2.95 MM
65
THRUST WASHER3.10 MM
65
THRUST WASHER2.70 MM
65
THRUST WASHER2.80 MM, TO BE ADAPTED DURING ASSEMBLY
65
THRUST WASHER2.65 MM
65
THRUST WASHER2.85M
65
THRUST WASHER2.80 MM, Replaced By: A1074620262
65
THRUST WASHER3.00 MM
65
THRUST WASHER2.75 MM
65
THRUST WASHER3.05 MM
68
LOCK
71
THRUST WASHER SHOCK ABSORBER TO TOP BRACKET
74
LOCK RINGTO 000 553 37 01,000 553 39 01,
77
NUT
77
NUT , Replaced By: A0009904050
80
STEERING BOX COVER , Replaced By: A2014600315
80
STEERING BOX COVER , Replaced By: A2014600415
80
STEERING BOX COVER
83
SEAL RING
86
SEAL RING
86
SEAL RING
89
LOCK
92
SEAL RING
95
SEAL RING VALVE
98
SCREW
99
WASHER BRACKET TO CROSS MEMBER
101
SCREW PLUG MID-POSITION BORE
104
SEAL RING PNEUMATIC VALVE
104
SEAL RING , Replaced By: N007603010110
107
BUSHING
110
PIN
113
SPRING , 1F 058035 2F 052098
116
SCREW PLUG
119
FITTING ENGINE BREATHING
119
FITTING HIGH PRESSURE, F269811
122
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
125
FITTING LOW PRESSURE
128
SEAL RINGTO 000 553 03 05,000 553 18 05,
131
STEERING COUPLING
137
SCREW
137
SCREW , Replaced By: A2029902101
137
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
143
SCREW , Replaced By: A1299901101
143
SCREW
