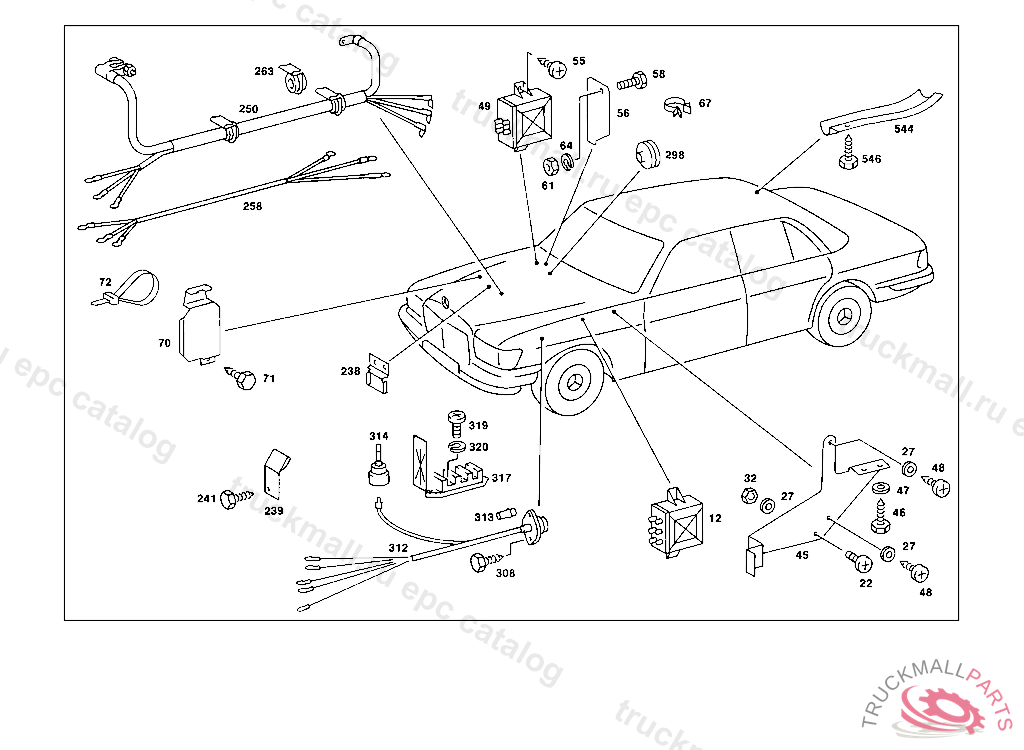

Поз.
Артикул
Описание
12
RELAY
22
SCREW ELECTRIC CABLE TO FUSE BOX
27
WASHER
32
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
45
BRACKET
46
SHEET METAL SCREW BRACKET TO CAB FLOOR
47
WASHER
48
SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
48
SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
48
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
48
SHEET METAL SCREW BRACKET TO FLOOR PLATE
49
CONTROL UNIT , Replaced By: A0045457532
49
CONTROL UNIT OVERHEAT WARNING INDICATOR
49
CONTROL UNIT OVERHEAT WARNING INDICATOR
49
CONTROL UNIT OVERHEAT WARNING INDICATOR
55
SHEET METAL SCREW BRACKET TO CAB FLOOR
55
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
55
SHEET METAL SCREW BRACKET TO FLOOR PLATE
56
BRACKET , UP TO CHASSIS:116.032,033 085691
58
SCREW COVER PLATE TO COVER PLATE M 6 X 10
58
SCREW , Replaced By: N304017006034
61
NUT CYLINDER TO BRACKET TO0002902112
61
NUT BATTERY MOUNTING
64
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
67
CLAMP , Replaced By: A0009955244
67
CLAMP
70
BRACKET , UP TO IDENT NO. 107.024 025404 107.044 053272 FROM CHASSIS SEE SA 11 163
71
SHEET METAL SCREW BRACKET TO CAB FLOOR
72
LOOM TIE TO MOUNT PLASTIC PIPING
72
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
72
LOOM TIE , Replaced By: A0019974390
238
BRACKET , Replaced By: A1265453840
238
BRACKET
239
BRACKET
241
SHEET METAL SCREW BRACKET TO CAB FLOOR
250
POSITIVE CABLE
250
POSITIVE CABLE
250
POSITIVE CABLE
258
CABLE HARNESS
258
CABLE HARNESS
258
CABLE HARNESS
263
GROMMET , 003 038504 EXCEPT FOR 038143,038206,038214,038216-038220,038223-038227,038229,038231,038232,038234-038311,038313,038314, 038316-038324,038326-038330,038332-038335,038337,038338,038340,038342,038343,038345-038350,038352- 038368,038372-038374,038376,038380,038382,038383,038385-038387,038389-038397,038401-038405,038408- 038424,038426-038494,038496-038502.
298
GROMMET
308
SHEET METAL SCREW ALARM UNIT TO STRUT
308
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
312
CABLE HARNESS , FIRST EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 107.045 008585, Replaced By: A1075405308
312
CABLE HARNESS , Replaced By: A1165400108
312
CABLE HARNESS , Replaced By: A1235404708
312
CABLE HARNESS
312
CABLE HARNESS DIAGNOSIS
312
CABLE HARNESS DIAGNOSIS
313
ROUND PIN BUSHING2.5 MM2
313
PIN BUSHING , Replaced By: A0025459926
314
PLUG , Replaced By: A1265401081
314
PLUG HOUSING , Replaced By: A0045458428
314
COVER , Replaced By: A0045458428
314
PLUG , Replaced By: A0045458428
314
PLUG SOCKET UNIPOLAR
317
SOCKET-TERMINAL STRIP 3-POLE
319
SCREW APPARATUS PLATE TO CAB,K 062140
319
SCREW ,K 062140, Replaced By: N007985006580
320
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
544
COVERING STARTING CABLE
546
SHEET METAL SCREW ALARM UNIT TO STRUT
546
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
999
GROMMET , Replaced By: A0005460937
999
GROMMET OVER STARTING CABLE AND MAIN CABLE HARNESS
999
GROMMET
999
INSULATING HOSE
999
RELAY , 107.042 011569 ALSO INSTALLED ON 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009132 ALSO INSTALLED ON 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 046 009987 ALSO INSTALLED ON 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
999
PART NAME MISSING. PLUG , Replaced By: A0125450328, +014A0015453826, +001A0095455728
999
PLUG
999
PLUG
999
LOCK
999
POSITIVE CABLE
999
CABLE HARNESS
999
CAP DIAGNOSIS BOX
999
CABLE HARNESS
999
CABLE HARNESS
999
ELECTRIC CABLE
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
