Главная
›
Mercedes
›
CAR
›
200 D TO 09/89
›
124.120
›
83 HEATING AND VENTILATION
›
150 HEATING/AIR-CONDITIONER OPERATING UNIT IL. 3
Mercedes A1248320988 - Шланг
200 D TO 09/89 124.120

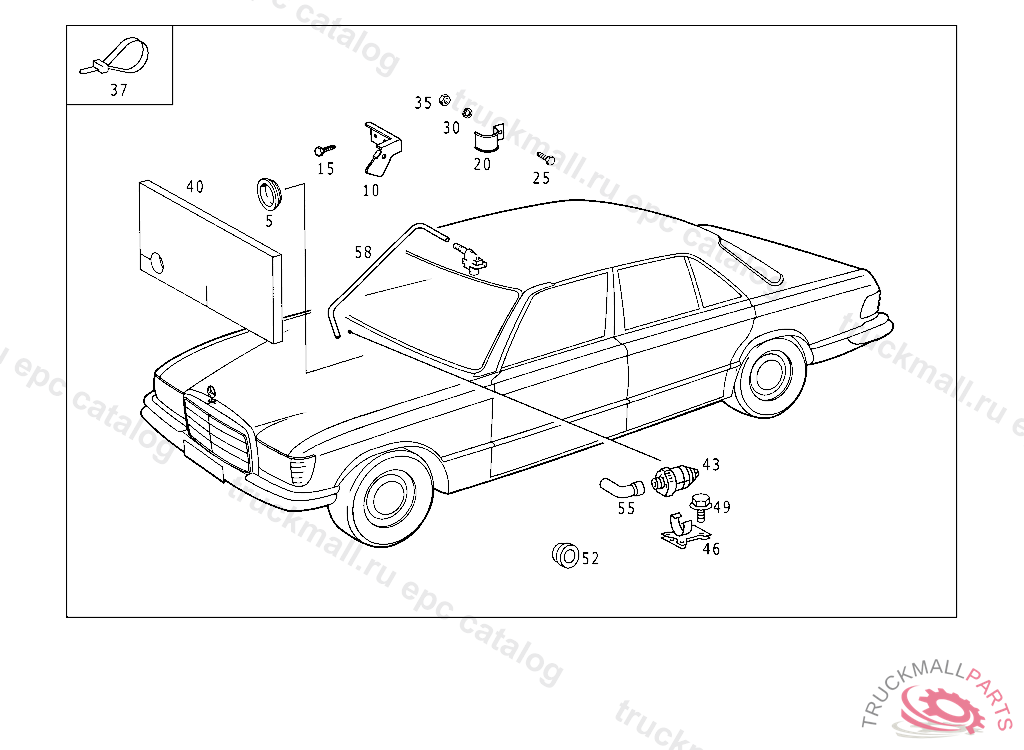

83 HEATING AND VENTILATION - 150 HEATING/AIR-CONDITIONER OPERATING UNIT IL. 3
Поз.
Артикул
Описание
5
A1109870744
EXPANSION PLUG
5
A1009870044
EXPANSION PLUG AT BRACKET
10
A1078350514
BRACKET , FROM CHASSIS 107.024 012079 107.044 029876
15
N007976004205
SHEET METAL SCREW BRACKET TO CAB FLOOR
20
A1239950320
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
25
N000933006102
SCREW COVER PLATE TO BRACKET
30
N912004006102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
35
N000934006007
NUT BALL PIVOT TO LEVER
37
A1149970590
LOOM TIE
40
A1156821601
INSULATION
43
A0008309608
BLOWER , Replaced By: A0008301908
43
A0008301908
BLOWER
46
A1268301914
BRACKET
49
N914136004203
SCREW
52
A1169871444
EXPANSION PLUG AT FRONT PANEL PILLAR,RIGHT
55
A1268321788
HOSE
58
A1248320988
HOSE , TO BE ADAPTED DURING ASSEMBLY
