Mercedes A1247320709 -

250 D 200-300 9/89-10/92, 200D-300D 9/89-7/93 124.127

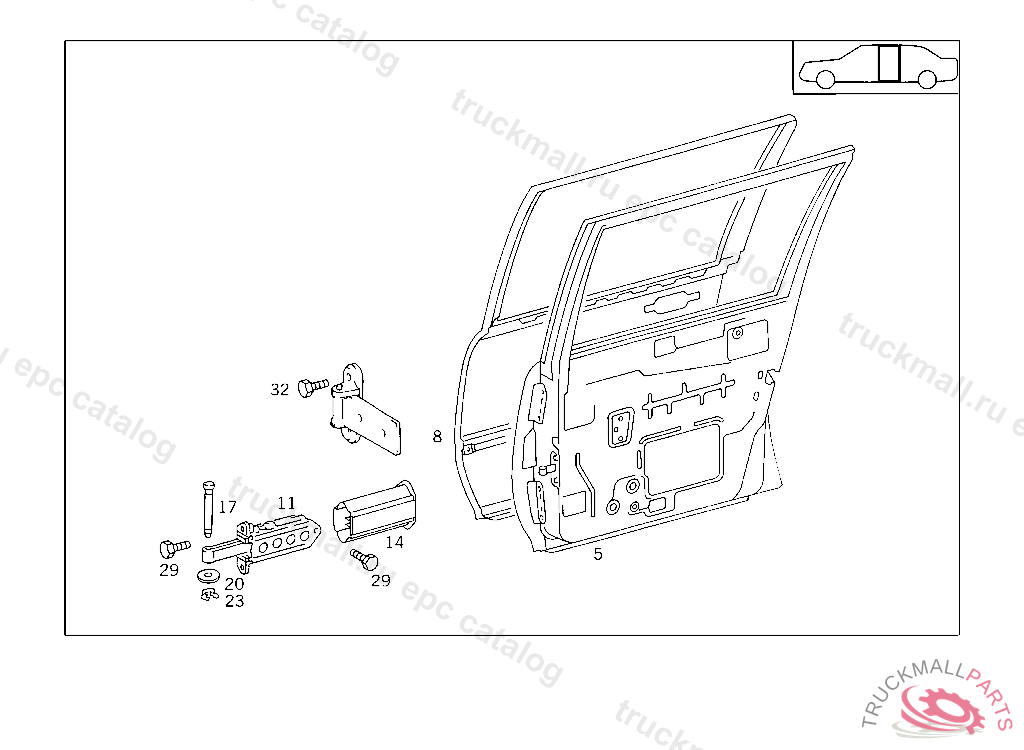

73 DOORS - 100 CENTRAL DOOR

Поз.
Артикул
Описание
5
A1247304305
DOOR SHELL CENTRAL LEFT
5
A1247304405
DOOR SHELL CENTRAL RIGHT
8
A1247320709
PANELLING CENTRAL LEFT
8
A1247320809
PANELLING CENTRAL RIGHT
11
A1267200516
DOOR CHECK FRONT DOORS
14
A1247220008
COVERING
17
A1239910207
PIN
20
A1269900840
WASHER , 023 195544 033 091265 123 258174 130 242529
20
A1269900940
WASHER SEAT HEATER CONTROL TO CROSS MEMBER AND TO FRONT SEAT
23
N912001006002
LOCK
29
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
29
N914007006012
COMBINATION BOLT , Replaced By: N304017006018, +001N006902006102
29
N304017006034
SCREW COVER PLATE TO COVER PLATE M 6 X 10
32
A2019900017
SCREW REAR DOORS TO CENTRAL PILLAR HINGES
