Mercedes A1244270092 - Крепёж

250 D TURBODIESEL TO 09/89 124.128

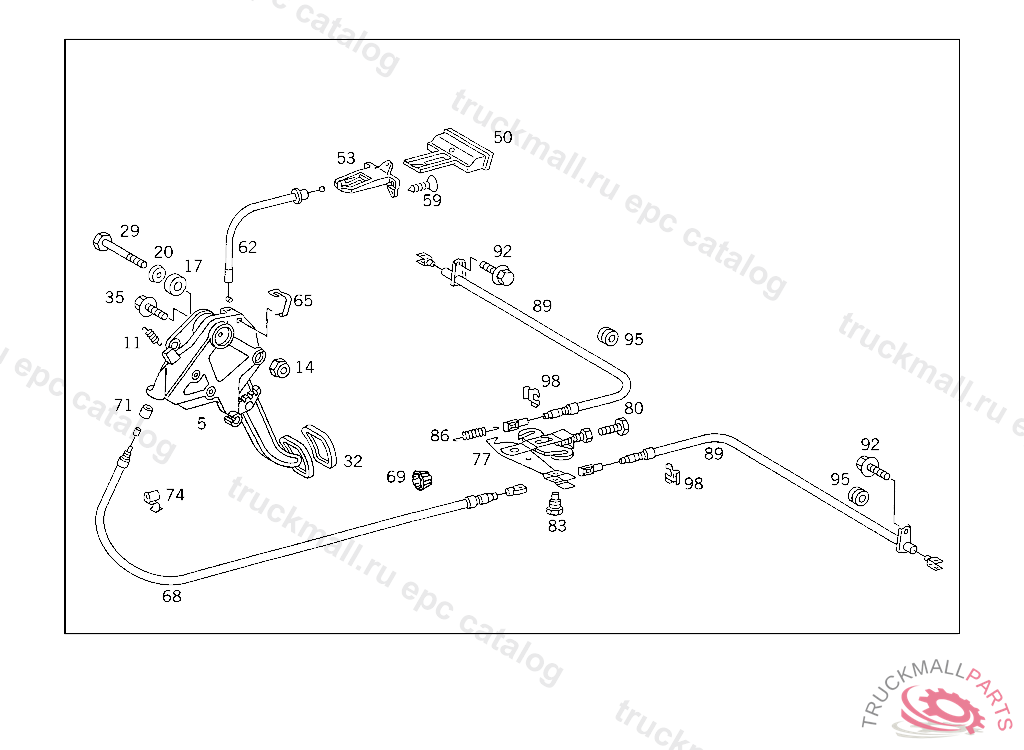

42 BRAKES - 120 PARKING BRAKE

Поз.
Артикул
Описание
5
A2024200284
PARKING BRAKE ,F 131809
11
A1249930510
SPRING , Replaced By: A1249932810
11
A1249932810
SPRING
14
N913002006009
NUT OIL TANK TO BRACKET
17
A1244270386
DAMPING RING
20
A1244270276
WASHER
29
N000931006094
SCREW
32
A1244270382
PAD PEDAL
35
N914130008104
SCREW FOOT OPERATED PARKING BRAKE TO FIRE WALL
50
A1244270220
HANDLE
53
A1244200277
GUIDE
59
N900162005104
SCREW
62
A1244201685
BRAKE CABLE
62
A1244204285
BRAKE CABLE
65
A1249881278
CLIP
68
A1244202685
BRAKE CABLE FRONT
69
A1244270092
CLAMPING PIECE
71
A0009870232
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
74
A0009955020
CLAMP
77
A1244200289
SHACKLE BRAKE READJUSTMENT
80
N304017008027
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
83
A2014270071
SCREW FRONT BRAKE CABLE TO BRAKE READJUSTMENT
86
A1269930210
SPRING
89
A1244201185
BRAKE CABLE REAR
92
N914125008511
SCREW BRAKE CABLE TO REAR AXLE
95
A1159970681
GROMMET BRAKE CABLE TO REAR AXLE
98
A1159930325
SPRING
