Mercedes N000137016202 - ШАЙБА ПРУЖИННАЯ

OM 355 355.970 TO MOTOR 533223

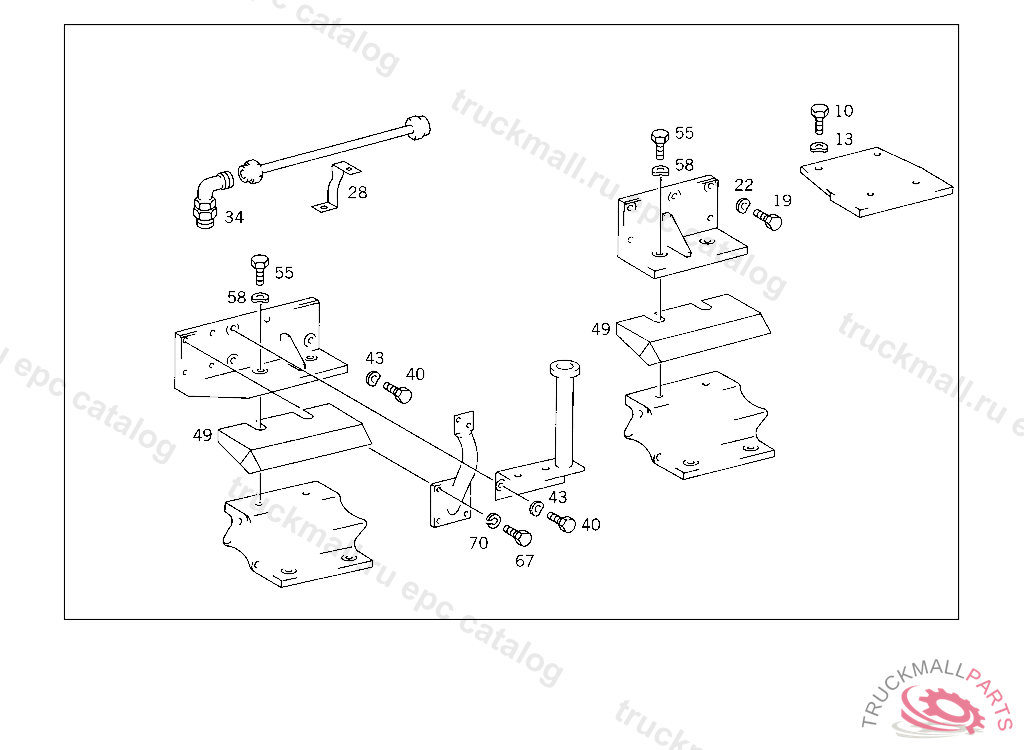

22 ENGINE SUSPENSION - 001 FLEXIBLE MOUNTING

Поз.
Артикул
Описание
10
N000933016031
SCREW
13
N000137016202
SPRING WASHER BRACKET TO TIMING CASE
19
N000933012133
SCREW , Replaced By: N304017012013
19
N304017012013
SCREW RUBBER MOUNTING TO ENGINE M 12X35
22
N000137012202
SPRING WASHER
22
N000137012206
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
28
A0461810895
BRACKET
34
A0009902271
ELBOW FITTING
40
N000931012115
SCREW
40
N000931012033
SCREW , Replaced By: N000933012102
40
N000933012102
SCREW , Replaced By: N304017012018
40
N304017012018
SCREW RELEASE LEVER TO SHAFT
43
N000137012202
SPRING WASHER
43
N000137012206
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
49
A0462230013
PROTECTIVE CAP
55
A0469900201
SCREW
55
N000933016031
SCREW
58
N000137016202
SPRING WASHER BRACKET TO TIMING CASE
67
N304017008021
SCREW PIPE CLAMP
67
N000933008147
SCREW , Replaced By: N304017008021
70
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
A0461801140
BRACKET
999
A0461804027
OIL LINE
999
A0462200216
ENGINE SUPPORT FRONT
999
A0462201007
ENGINE SUPPORT REAR
999
A0462201107
ENGINE SUPPORT REAR
999
A0462230052
SPACER WASHER
999
A0462230112
RUBBER MOUNTING
999
A0465100240
BRACKET
