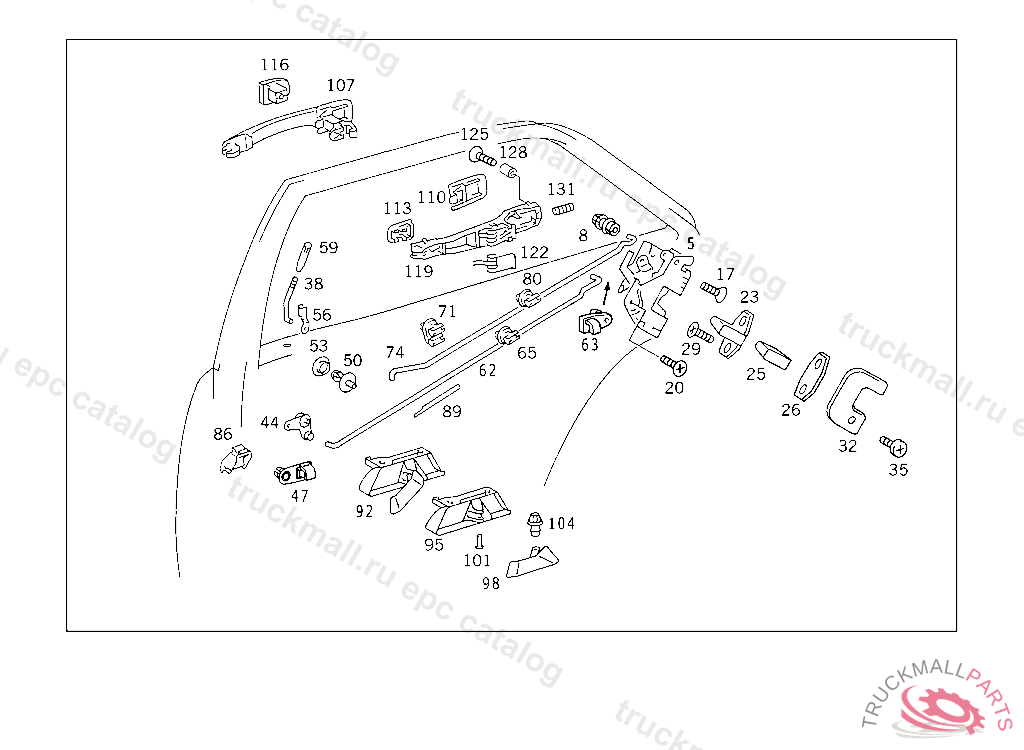

Поз.
Артикул
Описание
5
DOOR LOCK USED W/INFRA-RED CLOSING SYSTEM,RIGHT
5
DOOR LOCK RIGHT, NOT FOR AUSTRALIA
5
DOOR LOCK LEFT, NOT FOR AUSTRALIA
5
DOOR LOCK USED W/INFRA-RED CLOSING SYSTEM,LEFT
8
CLIP
17
SCREW
20
SCREW DOOR LOCK TO REAR DOOR
23
LOCKING EYE DOOR LOCK
25
INSERT REPAIR SIZE
26
PLATE LOCKING EYE REAR FENDER
26
PLATE LOCKING EYE
29
SCREW LOCKING EYE REAR FENDER
29
SCREW , Replaced By: A1409840429
32
EDGING LEFT DOOR LOCK
32
EDGING RIGHT DOOR LOCK
35
SCREW FUSE BOX TO SIDE MEMBER,5 097182
35
SCREW , Replaced By: N000000001933
38
LOCKING ROD DOOR LOCKING DEVICE
44
LEVER , TO BE ADAPTED DURING ASSEMBLY
47
CLIP
50
RIVET UPPER PART
53
WASHER LOWER PART
56
LOCK PULL ROD TO DOOR LOCK
59
LOCK (LOCKING KNOB),DOOR LOCKING MECHANISM, 023 116974 033 048511 123 097281 130 120564
62
LOCKING ROD INTERIOR LOCKING DEVICE,LEFT
62
LOCKING ROD INTERIOR LOCKING DEVICE,RIGHT
63
CLIP
65
CLIP
71
CLIP LOCK ROD TO FRONT DOOR
74
PULL ROD RIGHT DOOR INTERIOR HANDLE ASSEMBLY
74
PULL ROD LEFT DOOR INTERIOR HANDLE ASSEMBLY
80
CLIP
89
HOSE PULL ROD TO FRONT DOOR INTERIOR PART
92
INTERIOR HANDLE ASSEMBLY LEFT DOOR LOCK
92
INTERIOR HANDLE ASSEMBLY RIGHT DOOR LOCK
95
RECESS LEFT
95
RECESS RIGHT
98
LEVER RIGHT
98
LEVER LEFT
101
PIN
104
CLIP
107
HANDLE REAR DOORS
110
PAD REAR, TO BE ADAPTED DURING ASSEMBLY
113
PAD FRONT
116
COVERING
119
MOUNTING DOOR HANDLES
122
SPRING BEARING CLAMP
125
SCREW BEARING CLAMP
128
BUSHING BEARING CLAMP
131
THREADED PIN BEARING CLAMP
