Поз.
Артикул
Описание

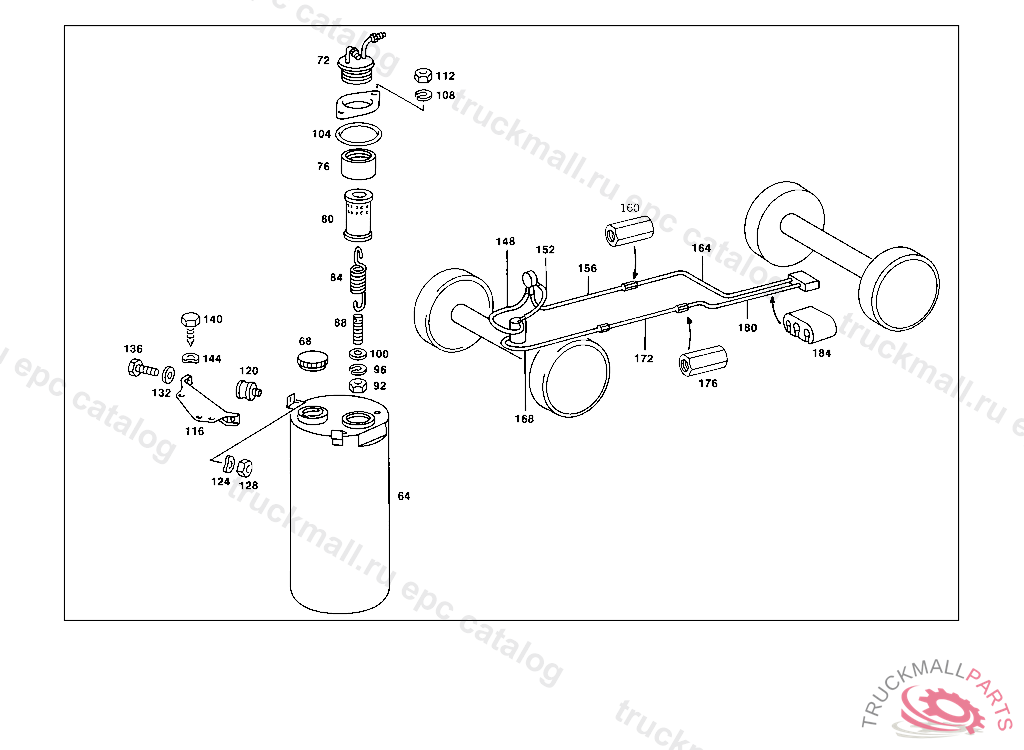

64
RESERVOIR
68
COVER
72
COVER
76
VALVE HOUSING
80
OIL FILTER
84
SPRING
88
THREADED PIN , 116.020 061809 024 059140 116.020 092525 024,025 099722 028,029 043104 032,033 072836
92
NUT CYLINDER TO BRACKET TO0002902112
92
NUT BATTERY MOUNTING
96
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
100
WASHER
104
SEAL RING
108
LOCK WASHER BRACKET TO STEERING COLUMN END
112
NUT TACHOGRAPH TO BRACKET
116
BRACKET RESERVOIR UNIT TO FRAME
120
BUFFER RESERVOIR UNIT TO FRAME
124
SPRING WASHER LICENSE PLATE TO BRACKET
128
NUT CYLINDER TO BRACKET TO0002902112
128
NUT BATTERY MOUNTING
132
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
132
WASHER COMPRESSED AIR LINE TO BRACKET
136
SCREW COVER PLATE TO COVER PLATE M 6 X 10
136
SCREW , Replaced By: N304017006034
140
SHEET METAL SCREW VALVE TO WINDOW SILL
144
SPRING WASHER LICENSE PLATE TO BRACKET
148
HOSE FROM OIL RESERVOIR TO OIL PIPE AT OIL PUMP 350 MM, ORDER BY THE METER
152
HOSE220 MM, ORDER BY THE METER
156
LINE FROM OIL PUMP TO COUPLING
160
INTERMEDIATE PIECE FROM PUMP TO SELF-LEVELLING UNIT
164
LINE FROM COUPLING PIECE TO REGULATING VALVE
168
LINE FROM OIL RESERVOIR TO CENTRAL OIL RETURN LINE
172
LINE FROM FRONT OIL RETURN LINE TO CONNECTOR
176
INTERMEDIATE PIECE
180
LINE FROM CONNECTOR TO CONTROL VALVE
184
DAMPING STRIP
999
HOSE80 MM, ORDER BY THE METER
999
SEAL RING
999
REAR SPRING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A1233243004
999
REAR SPRING
999
BRACKET
999
REAR SPRING
