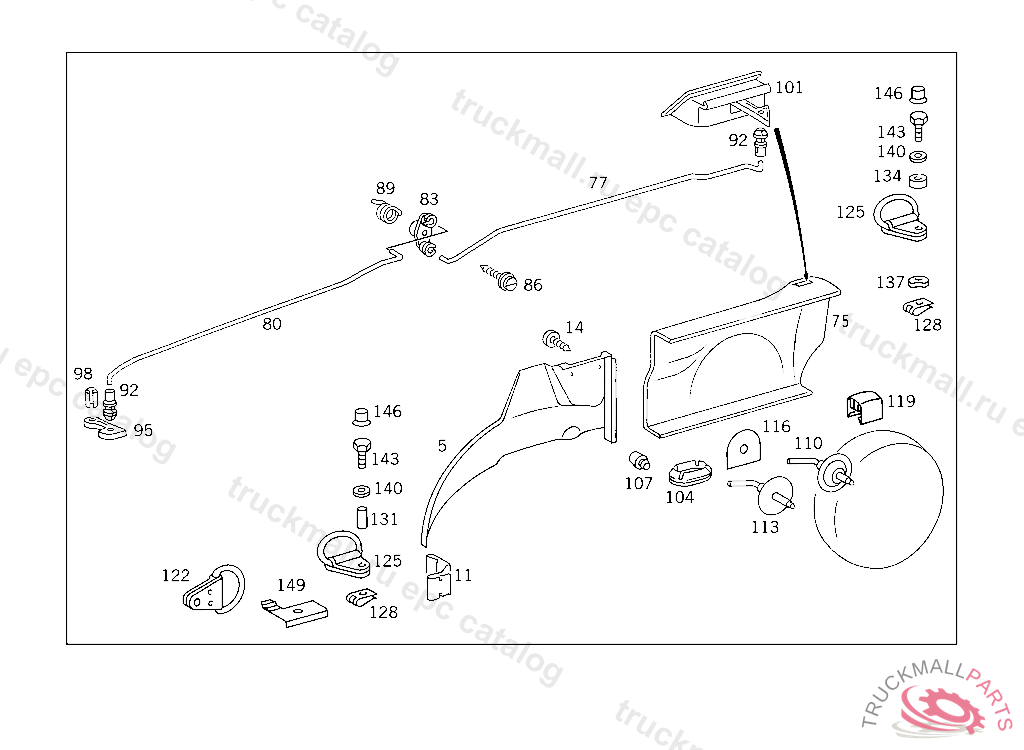

Поз.
Артикул
Описание
5
PANELLING LEFT REAR WHEELHOUSE VELOURS, F 264672 EXCEPT FOR F 259905 - F 264671 WITH CODE 859NO.7145I NO.5088I NO.8442I NO.8423I NO.8424I NO.6129I NO.3117I NO.7144I
11
CLIP PANELLING TO WHEELHOUSE
14
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
75
PANELLING LEFT,LOADING COMPARTMENT,TO SPARE WHEEL VELOURS
77
ROD FROM LOCKING MECHANISM TO GUIDE PLATE
80
ROD FROM GUIDE PLATE TO LOCKING HOOK
83
PLATE LOCKING MECHANISM TO PANELLING
86
SCREW GUIDE PLATE TO COVERING
89
SPRING ROD TO COVERING
92
CLIP
95
HOOK SPARE WHEEL PANELLING
98
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
101
LOCKING MECHANISM SPARE WHEEL PANELLING
104
GROMMET SPARE WHEEL PANELLING
107
RUBBER BUFFER
110
BRACKET SPARE WHEEL CARRIER, USED WITH STEEL DISC WHEELS
113
BRACKET SPARE WHEEL CARRIER, USED WITH ALUMINUM DISC WHEELS
116
PAD SPARE WHEEL CARRIER, USED WITH ALUMINUM DISC WHEELS
119
SPACER
122
BRACKET CENTRAL PILLAR,BOTTOM, AT SAFETY BELT
125
BRACKET SIDE MEMBER,LEFT
128
SOCKET NUT. NUT RETAINER EXHAUST MUFFLER TO SUPPORT
131
SPACER TUBE BRACKET TO REAR WHEELHOUSE, FROM CHASSIS 123.093 014792 123.183 028940 123.190 030489 123.193 017449 123.280 010007 123.283 021200
131
SPACER TUBE BRACKET TO RIGHT REAR PILLAR
134
SPACER TUBE LINE MOUNTING
137
SPRING WASHER LEVER MOUNTING
140
WASHER EXHAUST MUFFLER TO STRAP
143
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
143
SCREW BRACKET TO FIRE WALL
146
PROTECTION CAP
149
COVERING RIGHT
149
COVERING LEFT
