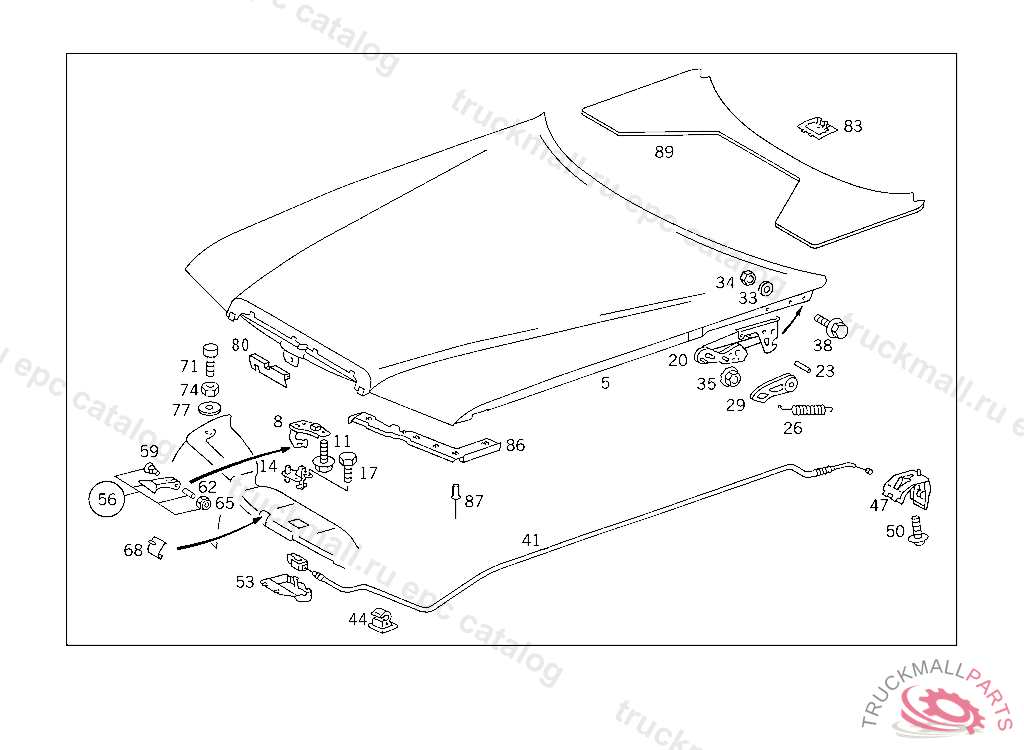

Поз.
Артикул
Описание
5
ENGINE HOOD
8
ENGINE HOOD CATCH UPPER PART
11
SCREW
14
ENGINE HOOD CATCH LOWER PART
17
SCREW COVER PLATE TO COVER PLATE M 6 X 10
20
HINGE RIGHT,LESS INTERIOR LOCKING MECHANISM,F 085718 ATTENTION: PRIOR TO INSTALLATION,CHECK ENGINE HOOD TILT LOCKING LEVER ON THE LEFT
20
HINGE LEFT,WITH INTERIOR LOCKING MECHANISM,F 085718 ATTENTION: PRIOR TO INSTALLATION,CHECK ENGINE HOOD TILT LOCKING LEVER ON THE LEFT
23
BUSHING
26
SPRING ENGINE HOOD HINGE,LEFT
26
SPRING ENGINE HOOD HINGE,RIGHT
29
LEVER ENGINE HOOD HINGE,LEFT
29
LEVER ENGINE HOOD HINGE,RIGHT
33
WASHER BRACKET TO LEFT SIDE MEMBER
34
NUT
35
NUT HINGE TO WHEELHOUSE
38
SCREW HINGE TO ENGINE HOOD
41
ENGINE HOOD RELEASE CABLE
41
ENGINE HOOD RELEASE CABLE
44
CLIP ENGINE HOOD RELEASE CABLE TO FRONT PANEL,BOTTOM
47
HANDLE ENGINE HOOD RELEASE CABLE
50
SCREW HANDLE TO BRACKET
53
COVERING ENGINE HOOD CATCH
56
HANDLE HANDLE FOR ENGINE HOOD SAFETY HOOK
59
PIN
62
SPACER TUBE
65
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
68
DEFLECTOR SAFETY HOOK
68
DEFLECTOR SAFETY HOOK, C 020765 ALSO INSTALLED ON B 891779 - C 020763 WITH CODE 859
71
BUFFER LEFT, FROM CHASSIS: 010 077937
74
NUT BALL PIVOT TO LEVER
77
WASHER COMPRESSED AIR LINE TO BRACKET
80
SEAL ENGINE HOOD,FRONT CENTRAL
83
COVERING ENGINE HOOD STIFFENING,REAR
86
SEAL ENGINE HOOD BRACKET,FRONT LEFT
86
SEAL ENGINE HOOD BRACKET,FRONT RIGHT
87
RIVET
