Поз.
Артикул
Описание
5

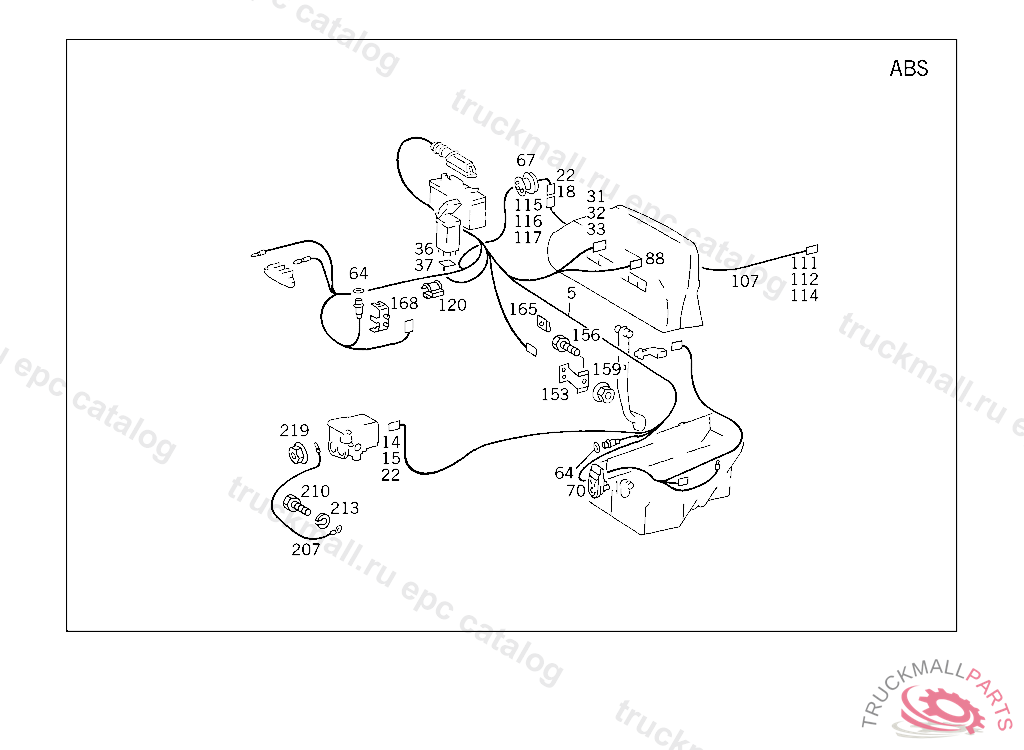

CABLE HARNESS ANTI-LOCK BRAKING SYSTEM, FROM MODEL YEAR 94
14
PIN BUSHING HOUSING 12-POLE
15
COVERTO 009 545 26 28
18
PIN BUSHING HOUSING 4-POLE, BLOWER MOTOR
18
PLUG TRIPLE
22
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
31
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
32
COVERTO 011 545 10 28
33
ROUND PIN BUSHING4 MM2
36
PIN BUSHING HOUSING OVERLOAD PROTECTOR,F 017704
37
ROUND PIN BUSHING4.0 MM
64
SEAL RING COAXIAL PLUG
67
GROMMET ELECTRIC CABLE THRU FIRE WALL
70
GROMMET , ONLY WITH AIR CONDITIONING AUTOMATICS
107
CABLE HARNESS REAR SPEED SENSOR
111
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
112
COVERTO 008 545 08 28
114
ROUND PIN BUSHING4 MM2
115
PLUG HOUSING BIPOLAR
115
PLUG HOUSING DOUBLE
116
COVERTO 008 545 08 28
116
COVERTO 007 545 00 28
117
PLUG PIN , 107.042 L.H.D. A 005252 107.042 R.H.D. A 007245 123. L.H.D. A 154544,F 019237 123. R.H.D. A 118487,F 020926
117
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
165
CLIP
168
BRACKET ABS PLUG-CONNECTION, C 009356 ALSO INSTALLED ON B 891779 - C 009354 WITH CODE 859
207
NEG. CABLE
210
SCREW COVER PLATE TO COVER PLATE M 6 X 12
213
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
219
NUT HOOK TO BRACKET
