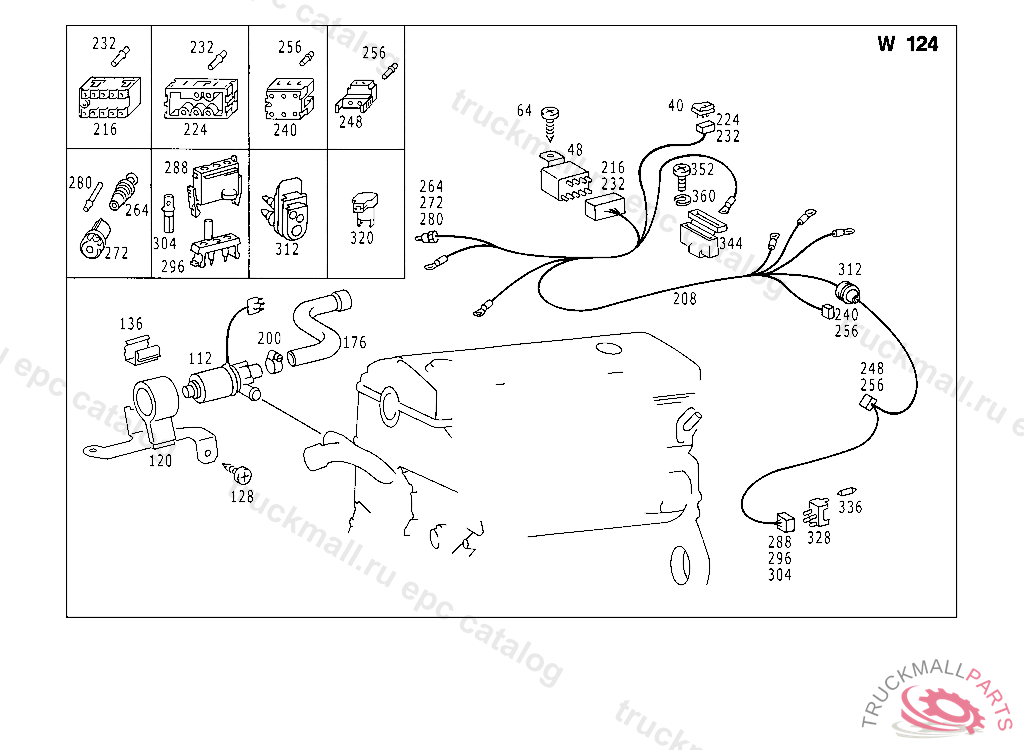

Поз.
Артикул
Описание
40
SWITCH TOP COVERING IN HOUSING
48
CONTROL UNIT FIRE WALL
64
SHEET METAL SCREW ALARM UNIT TO STRUT
64
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
64
SHEET METAL SCREW BRACKET TO FIRE WALL
112
RECIRCULATING PUMP. PUMP , NOT FOR AUSTRALIA
112
RECIRCULATING PUMP , FROM MODEL YEAR '81
112
RECIRCULATING PUMP ,5/91
112
RECIRCULATING PUMP"SWF",5/91
112
RECIRCULATING PUMP ,F 185093 NOT FOR AUSTRALIA
112
RECIRCULATING PUMP
120
BRACKET
120
BRACKET
128
SHEET METAL SCREW
128
SCREW BRACKET TO FIRE WALL
128
SHEET METAL SCREW , Replaced By: N000000000542
136
CLIP PLUG TO REAR PILLAR
176
HOSE ,F 845139
176
HOSE FROM RETURN LINE TO RECIRCULATING PUMP
200
CLAMP , Replaced By: N000000000667
200
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
208
CABLE HARNESS , ONLY WITH AIR CONDITIONING AUTOMATICS10/92
208
CABLE HARNESS , NOT WITH AIR CONDITIONING AUTOMATICS10/92
208
CABLE HARNESS , NOT WITH AIR CONDITIONING AUTOMATICS10/92
208
CABLE HARNESS , NOT WITH AIR CONDITIONING AUTOMATICS10/92
208
CABLE HARNESS , ONLY WITH AIR CONDITIONING AUTOMATICS10/92
208
CABLE HARNESS , ONLY WITH AIR CONDITIONING AUTOMATICS10/92
208
CABLE HARNESS , ONLY WITH AIR CONDITIONING AUTOMATICS10/92
208
CABLE HARNESS , NOT WITH AIR CONDITIONING AUTOMATICS10/92
216
PIN BUSHING HOUSING LAMP CONTROL
224
PIN BUSHING HOUSING SWITCH
232
ROUND PIN BUSHING2.5 MM2
240
PIN BUSHING HOUSING FUSE BOX
248
PIN BUSHING HOUSING BIPOLAR
256
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
264
PLUG HOUSING MAIN CABLE HARNESS
272
COVERTO 011 545 10 28
280
PLUG PIN
288
PLUG HEATING WATER VALVE, 4-POLE
296
PLUGTO 014 545 38 28
304
PIN BUSHINGTO 000 821 19 26
312
GROMMET , ONLY WITH AIR CONDITIONING AUTOMATICS
320
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
328
FUSE BOX
336
FUSEA16
344
SOCKET-TERMINAL STRIP
352
SCREW , Replaced By: N007985004107
360
LOCK WASHER T-FITTING TO BRACKET
999
HEATER UNIT RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
