300 TE 4 MATIC JAPAN TO 09/89
124.290
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
001 ELECTRICAL EQUIPMENT USED FOR AUTOMATIC TRANSMISSION (FOR TYPE 124, SEE STANDARD

Mercedes A1149970581 - Втулка

300 TE 4 MATIC JAPAN TO 09/89 124.290

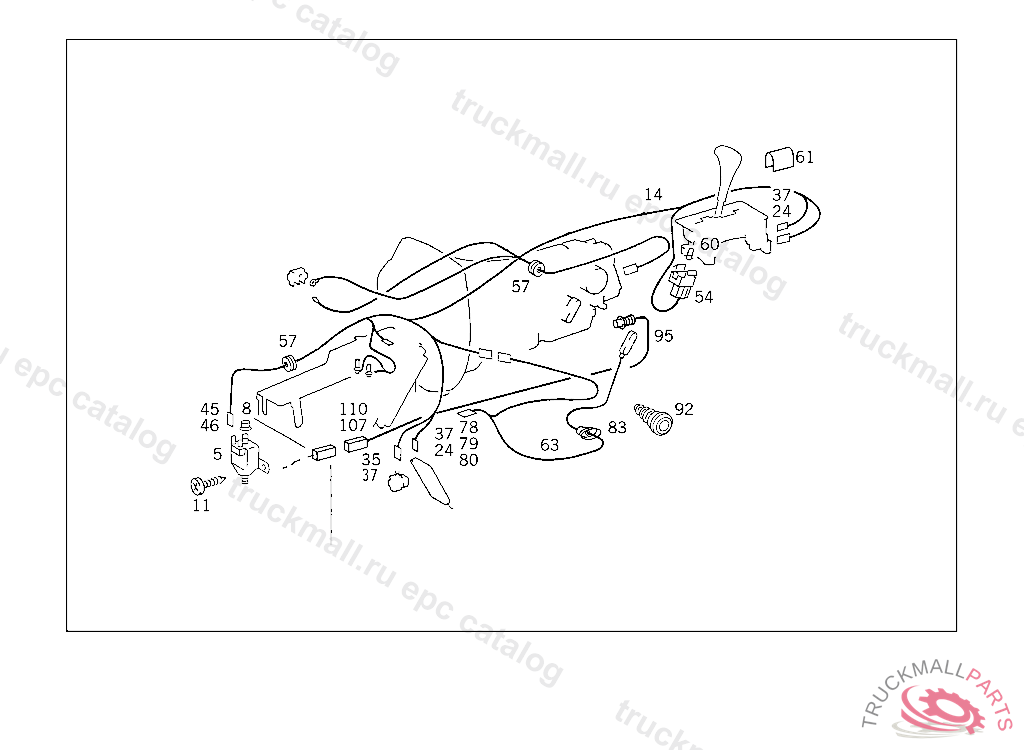

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT USED FOR AUTOMATIC TRANSMISSION (FOR TYPE 124, SEE STANDARD

Поз.
Артикул
Описание
5
A0015408697
VALVE (3/2-WAY SOLENOID VALVE)
8
A1170780981
HOSE SOLENOID VALVE
11
N007981004243
SHEET METAL SCREW , Replaced By: N000000002062
11
N914127004301
SHEET METAL SCREW , Replaced By: N007981004243, +001N000125004319
11
N000000002062
SCREW
14
A1245401413
CABLE HARNESS KICK-DOWN SWITCH ADDITIONAL CABLE
24
A0025456326
PIN BUSHING HOUSING ECONOMY DRIVE SWITCH, 4-POLE
35
A0125450428
PIN BUSHING HOUSING BIPOLAR
37
A0015454426
ROUND PIN BUSHING4 MM2
45
A0125453528
PIN BUSHING HOUSING KICK-DOWN SOLENOID VALVE
46
A0025454226
ROUND PIN BUSHINGTO 012 545 35 28
54
A0005453319
SOCKET
57
A0089970581
GROMMETD4/34
60
N072601012230
BULB , Replaced By: A6885447093
63
A1245433926
CABLE HARNESS STARTER NON-REPEAT AND BACK-UP LIGHT SWITCH
78
A0095455228
PLUG HOUSING DOUBLE
79
A0095452128
COVERTO 007 545 00 28
80
A0015453826
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
83
A1149970581
GROMMET
92
A2012950183
BOOT FLEXIBLE SHAFT THRU FIRE WALL
