300 TE 4 MATIC JAPAN TO 09/89
124.290
83 HEATING AND VENTILATION
001 REAR SPACE HEATING IL.3

Mercedes A1248326594 - Шланг

300 TE 4 MATIC JAPAN TO 09/89 124.290

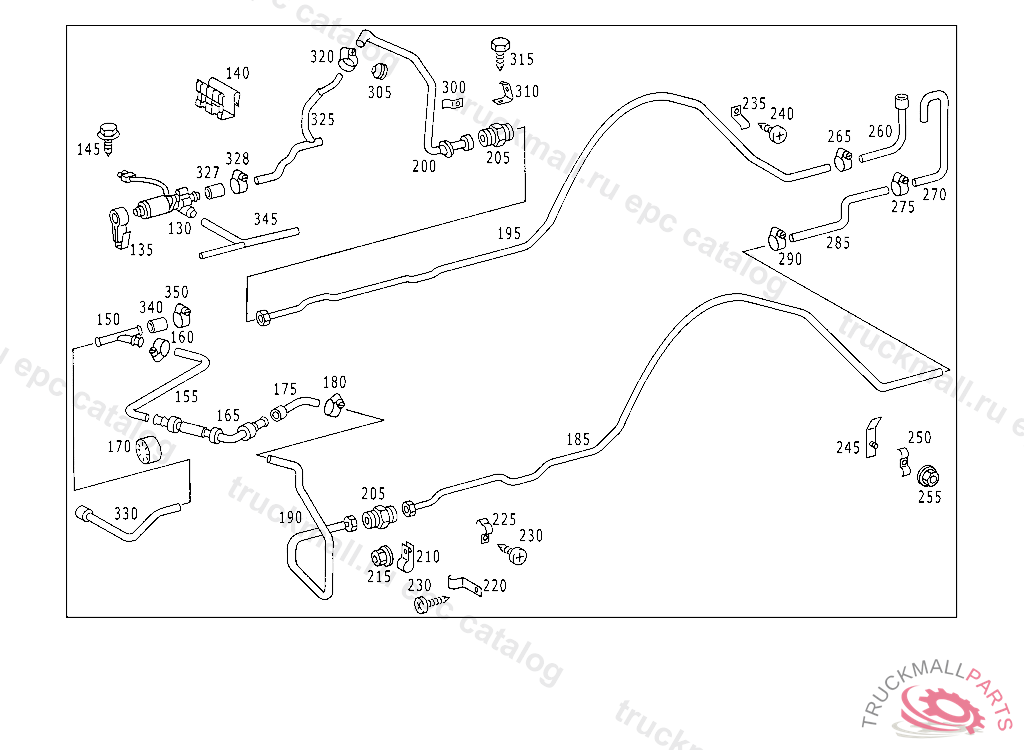

83 HEATING AND VENTILATION - 001 REAR SPACE HEATING IL.3

Поз.
Артикул
Описание
130
A0018351164
RECIRCULATING PUMP"SWF",5/91
130
A0018351364
RECIRCULATING PUMP. PUMP , NOT FOR AUSTRALIA
130
A0018352364
RECIRCULATING PUMP ,F 185093 NOT FOR AUSTRALIA
130
A0018352564
RECIRCULATING PUMP ,5/91
135
A1248302214
BRACKET
140
A0029884878
CLIP PLUG TO REAR PILLAR
145
N000000000542
SCREW BRACKET TO FIRE WALL
145
N914128006300
SHEET METAL SCREW , Replaced By: N000000000542
150
A1248303515
PIPE LINE FROM ENGINE TO HEAT EXCHANGER, B 26179202/93
150
A1248301915
PIPE LINE FROM ENGINE TO HEAT EXCHANGER
155
A1248323794
HOSE
160
A0059970190
HOSE CLAMP LINE MOUNTING
165
A1248320315
PIPE LINE
170
A1164661282
RUBBER RING
175
A1248326594
HOSE
180
A0059970190
HOSE CLAMP LINE MOUNTING
185
A1248300815
PIPE LINE
190
A1248301115
PIPE LINE
195
A1248301215
PIPE LINE
200
A1248301515
PIPE LINE
205
A0029906171
FITTING (PARTS KIT),LINE RUPTURE
210
A1249950101
CLAMP
215
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
220
A1249950042
CLAMP
225
A1249950142
CLAMP
230
N007981004318
SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
235
A1249950442
CLAMP
240
N007981004318
SHEET METAL SCREW ANTENNA CABLE TO REAR INSIDE PILLAR
245
A1248301214
BRACKET
250
A1249950342
CLAMP
255
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
260
A1248323994
HOSE
265
A0059970190
HOSE CLAMP LINE MOUNTING
270
A1248324094
HOSE
275
A0059970190
HOSE CLAMP LINE MOUNTING
275
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
275
N916026020001
CLAMP , Replaced By: N000000000667
285
A1248324194
HOSE
290
N916026020001
CLAMP , Replaced By: N000000000667
290
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
290
A0059970190
HOSE CLAMP LINE MOUNTING
300
A1129950120
CLAMP , 107.022 005200 EXCEPT FOR 005190-005192,005194-005199. 107.023 012496 107.024 021803 EXCEPT FOR 021794,021804
305
A1839970081
GROMMET
310
A1248320914
BRACKET
315
N914128004303
SHEET METAL SCREW ALARM UNIT TO STRUT
320
A0059970190
HOSE CLAMP LINE MOUNTING
325
A1248304396
HOSE FROM RETURN LINE TO RECIRCULATING PUMP,9/88 USED WITHOUT AUXILIARY HEATER
325
A1248300996
HOSE FROM RETURN LINE TO RECIRCULATING PUMP,9/88 USED WITHOUT AUXILIARY HEATER
325
A1248304496
HOSE FROM RETURN LINE TO RECIRCULATING PUMP,9/88 ONLY USED WITH AUXILIARY HEATER
325
A1248301096
HOSE FROM RETURN LINE TO RECIRCULATING PUMP,9/88 ONLY USED WITH AUXILIARY HEATER
327
N073379008100
HOSE HAND BRAKE VALVE BLEEDING, ORDER BY THE METER
328
A0059970190
HOSE CLAMP LINE MOUNTING
330
A1248301496
HOSE FROM DOUBLE WATER VALVE TO RETURN LINE
340
N900271018036
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
345
A1248303896
HOSE FROM RECIRCULATING PUMP TO ENGINE
350
N000000000667
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
350
N916026020001
CLAMP , Replaced By: N000000000667
