280 SE JAPAN TO 09/85
126.022
72 DOORS

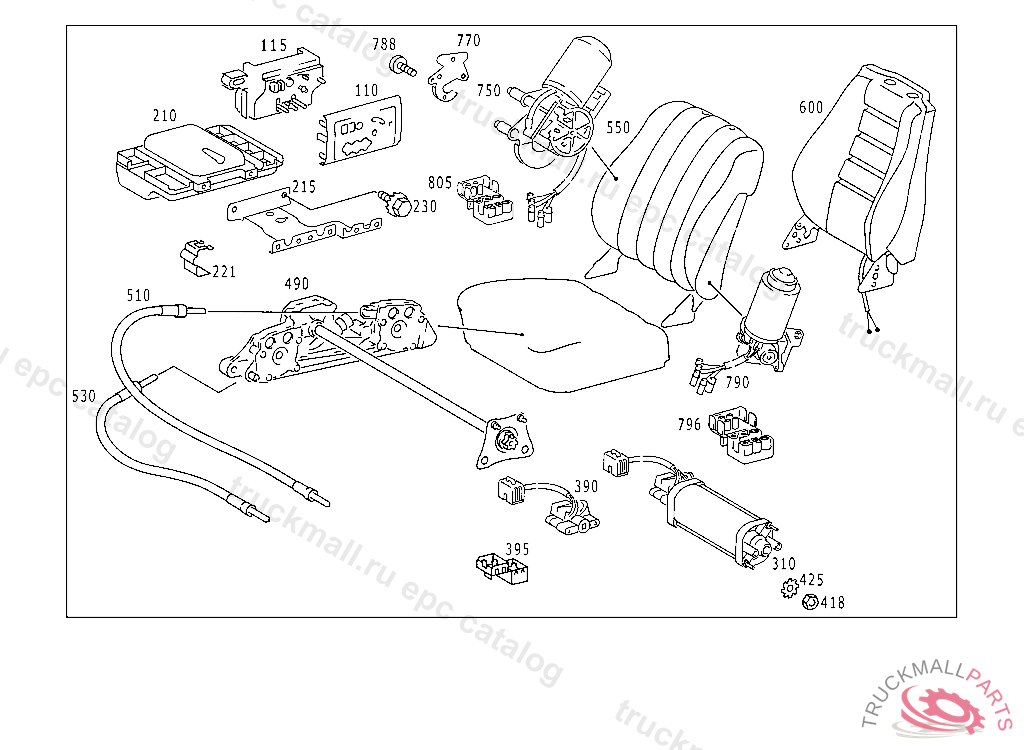

001 SEAT PROGRAMMING USED FOR ELECTRICALLY ADJUSTED FRONT SEAT

Mercedes A0028202242 - ЭЛЕКТРОМОТОР

280 SE JAPAN TO 09/85 126.022

72 DOORS - 001 SEAT PROGRAMMING USED FOR ELECTRICALLY ADJUSTED FRONT SEAT

Поз.
Артикул
Описание
110
A1267665391
COVERING LEFT ELECTRIC SEAT ADJUSTMENT SWITCH, USED WITH ELECTRICALLY ADJUSTABLE HEADREST
110
A1267665491
COVERING RIGHT ELECTRIC SEAT ADJUSTMENT SWITCH, USED WITH ELECTRICALLY ADJUSTABLE HEADREST
115
A0038202710
SWITCH LEFT FRONT DOOR
115
A0038202810
SWITCH ELECTRIC SEAT ADJUSTER, WITH PROGRAMMING,RIGHT
115
A0028206010
SWITCH LEFT FRONT DOOR
115
A0028206210
SWITCH RIGHT FRONT DOOR
210
A1268200026
CONTROL UNIT SEAT ADJUSTER
210
A1268200526
CONTROL UNIT SEAT ADJUSTER
215
A1268214614
BRACKET CONTROL UNIT TO SEAT HEIGHT ADJUSTMENT
221
A1269885778
CLIP PLUG MOUNTING
230
A0059901901
SCREW MOTOR TO BRACKET,B 090000 ELECTRIC SEAT ADJUSTER WITH MEMORY
310
A0028202242
ELECTRIC MOTOR SEAT HEIGHT ADJUSTMENT,FRONT, ELECTRIC SEAT ADJUSTER WITH MEMORY
310
A0028202142
ELECTRIC MOTOR FORE-AND-AFT ADJUSTMENT, ELECTRIC SEAT ADJUSTER WITH MEMORYA 297972
310
A0028202342
ELECTRIC MOTOR SEAT HEIGHT ADJUSTMENT,REAR
390
A0008215660
RESISTOR POTENTIOMETER, ELECTRIC SEAT ADJUSTER WITH MEMORY
395
A1265453428
PIN BUSHING HOUSING SEAT HEIGHT ADJUSTMENT,FRONT
395
A1265453128
PIN BUSHING HOUSING FORE-AND-AFT ADJUSTMENT
395
A1265453028
PIN BUSHING HOUSING SEAT HEIGHT ADJUSTMENT,REAR
418
N000439004201
NUT MOTOR TO BRACKET
425
N006798004101
SERRATED WASHER MOTOR TO BRACKET
490
A1268200407
GEARING SEAT HEIGHT ADJUSTMENT, WITH PROGRAMMING,A 502268
510
A1269100598
SHAFT SEAT HEIGHT ADJUSTMENT, WITH PROGRAMMING
530
A1269100698
SHAFT SEAT HEIGHT ADJUSTMENT, WITH PROGRAMMING
550
A1269101742
BACKREST , NO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I
550
A1269109232
BACKREST
550
A1269109132
BACKREST
550
A1269109532
BACKREST
550
A1269100066
BACKREST RIGHT FRONT SEAT, NO.7156I NO.5089I NO.8434I......I NO.8433I......I NO.3120I NO.7155IA 428784
550
A1269107733
BACKREST
550
A1269101166
BACKREST ,A 479890 NO.9A88I NO.5B01I NO.8E94I NO.8E95I NO.8E93I NO.6B54I NO.3B35I NO.7C29I NO.7C29I NO.7C29I NO.8E95I I
550
A1269109242
BACKREST
550
A1269109332
BACKREST
550
A1269107833
BACKREST
550
A1269109032
BACKREST
550
A1269109432
BACKREST
550
A1269109632
BACKREST
550
A1269107242
BACKREST
550
A1269108242
BACKREST
550
A1269100042
BACKREST , NO.7156I NO.5089I NO.8434I......I NO.8433I......I NO.3120I NO.7155IA 428783
550
A1269108932
BACKREST
550
A1269101266
BACKREST
600
A1269108033
BACKREST
600
A1269107933
BACKREST
600
A1269102166
BACKREST
600
A1269103242
BACKREST , NO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
600
A1269102266
BACKREST
600
A1269103142
BACKREST , NO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
600
A1269101166
BACKREST ,A 479890 NO.9A88I NO.5B01I NO.8E94I NO.8E95I NO.8E93I NO.6B54I NO.3B35I NO.7C29I NO.7C29I NO.7C29I NO.8E95I I
600
A1269101266
BACKREST
750
A1268203842
ELECTRIC MOTOR BACKREST ADJUSTER
770
A1269102414
BRACKET ELECTRIC MOTOR TO CENTRAL SEAT BACKREST FRAME
770
A1269102314
BRACKET ELECTRIC MOTOR TO BACKREST FRAME
788
N914141006702
SCREW ELECTRIC MOTOR TO BACKREST FRAME
788
N000000000125
SCREW , Replaced By: N914141006702
788
N914146006700
SCREW , Replaced By: N000000000125
790
A0028203242
ELECTRIC MOTOR HEADREST
796
A1265453328
PIN BUSHING HOUSING HEADREST ADJUSTMENT ELECTRIC MOTOR, 5-POLE
805
A1265452628
PIN BUSHING HOUSING BACKREST ADJUSTMENT MOTOR, ELECTRIC SEAT ADJUSTER WITH MEMORY
