Поз.
Артикул
Описание
5

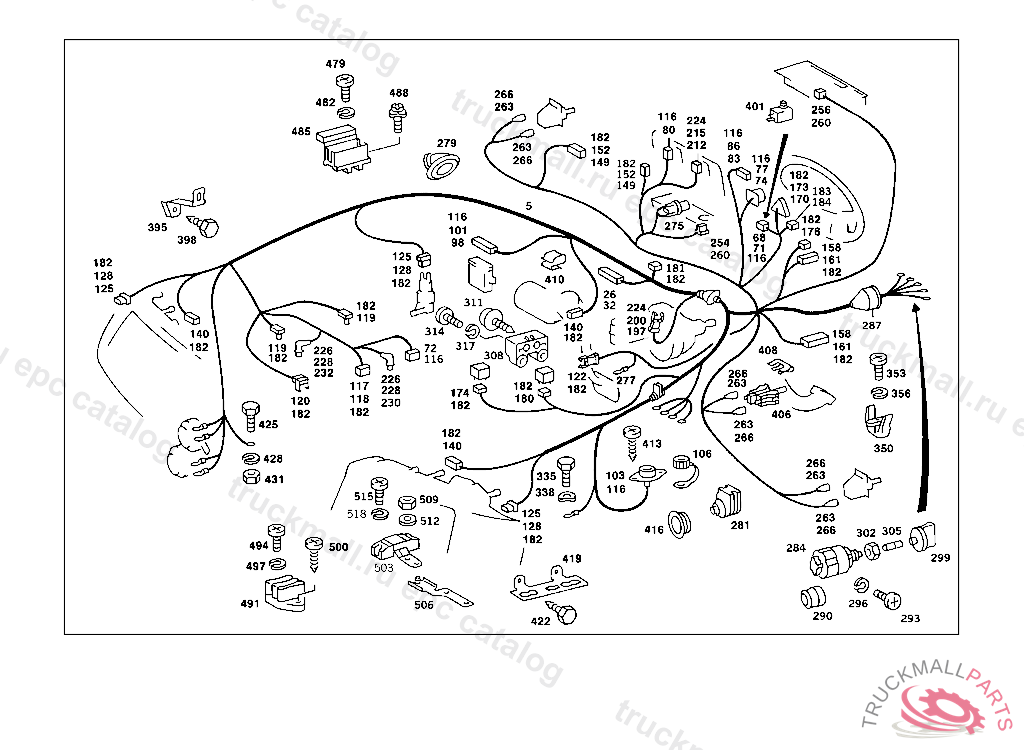

CABLE HARNESS MAIN CABLE HARNESS, FROM MODEL YEAR' 82
5
CABLE HARNESS , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 022 094679 033 048470 120 050512, Replaced By: A1265406205
26
PIN BUSHING HOUSING CONTROL UNIT, 14-POLE
32
COVERTO 019 545 29 28
68
PIN BUSHING HOUSING BIPOLAR
71
COVERTO 010 545 10 28
72
PIN BUSHING HOUSING MICRO-SWITCH
74
PIN BUSHING HOUSING INSTRUMENT CLUSTER,15-POLE
77
COVERTO 010 545 04 28
80
PLUG. PIN BUSHING HOUSING HAZARD WARNING LIGHT, 8-POLE
83
PIN BUSHING HOUSING SENSOR
86
COVERTO 009 545 16 28
98
PIN BUSHING HOUSING CONTROL UNIT
101
COVERTO 010 545 00 28
103
PLUG SOCKET DIAGNOSIS BOX
106
CAP DIAGNOSIS BOX
116
ROUND PIN BUSHING2.5 MM2
116
PIN BUSHING , Replaced By: A0025459926
117
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER
118
COVERTO 009 545 44 28
119
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
122
PIN BUSHING HOUSING BIPOLAR
125
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
128
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
140
PIN BUSHING HOUSING HEADLAMP,WIPER MOTOR,BLOWER SWITCH
149
PIN BUSHING HOUSING 4-POLE
149
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
152
COVER
152
COVERTO 006 545 81 28
158
PIN BUSHING HOUSING STEERING COLUMN MOUNTED CABLE HARNESS, 14-POLE
161
COVERTO 009 545 23 28
170
PIN BUSHING HOUSING IGNITION/STARTING SWITCH,7-POLE
173
COVERTO 009 545 73 28,
174
PIN BUSHING HOUSING COMPRESSOR CONTROL UNIT, 12-POLE
176
PLUG TRIPLE
180
PIN BUSHING HOUSING FUSE BOX
181
PIN BUSHING HOUSING OVERLOAD PROTECTOR
181
PIN BUSHING HOUSING OVERLOAD PROTECTOR
182
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
182
ROUND PIN BUSHING , Replaced By: A0035452626
197
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
200
COVERTO 008 545 08 28,008 545 09 28
212
CONNECTOR LOWER PART
215
COVER UPPER PART
224
ROUND PIN BUSHING4 MM2
226
PLUG WARM-UP SENDER,COLD START VALVE,AIRFLOW SENSOR PLATE CONTACT OR AIR SLIDE
226
PLUG SOCKET METERING PUMP
228
CONTACT SPRING , Replaced By: A0025451926
228
CONTACT SPRING , Replaced By: A0035450226
228
CONTACT SPRING1-2.5 MM2
230
BOOTTO 116 540 01 81
232
BOOT TIMING VALVE
254
PIN BUSHING HOUSING BIPOLAR
254
PIN BUSHING HOUSING , Replaced By: A0015458728
256
PIN BUSHING HOUSING 3-POLE
260
FLAT PIN BUSHING , Replaced By: A0075458426
263
PIN BUSHING RADIO SET
266
INSULATING SLEEVETO 000 546 43 40
266
INSULATING SLEEVE
275
SOCKET HEATING CONTROL LIGHTING,5 255830
275
SOCKET PRE-GLOW INDICATOR
277
CABLE SHOE GROUND
279
GROMMET ELECTRIC CABLE THRU FIRE WALL
281
GROMMET
284
LIGHT SWITCH
287
BOOT , FROM CHASSIS: 010 057200 ALSO INSTALLED ON: 056657,056772,057093,057094,057102,057104-057106,057115,057118,057119,057122-057124,057127,057129- 057131,057133,057134,057136,057137,057140-057158,057160-057162,057164,057165,057167,057186,057188- 057198.
290
BOOT LIGHT ROTARY SWITCH
293
SCREW ELECTRIC CABLE TO HORN
296
LOCK WASHER T-FITTING TO BRACKET
299
KNOB LIGHT ROTARY SWITCH
299
HANDLE LIGHT ROTARY SWITCH
299
HANDLE , Replaced By: A2025450081
302
NUT WIRE CABLE TO INSTRUMENT PANEL
305
BULB LIGHTING OF LEFT AND RIGHT OPERATING UNITS AND BLOWER SWITCH
305
BULB , Replaced By: N000000001061
335
SCREW COVER PLATE TO BRACKET
335
SCREW PUMP TO BRACKET
338
SPRING WASHER LICENSE PLATE TO BRACKET
350
CABLE CONNECTOR HEATED REAR WINDOW PANE CABLE, 023 016459 033 012020 123 008855 130 014466
353
SCREW JUNCTION BOX
356
LOCK WASHER T-FITTING TO BRACKET
395
BRACKET MAIN CABLE HARNESS TO RIGHT TORSION BAR BEARING COVERING
398
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
401
SWITCH WARNING BUZZER
401
SENDER UNIT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. SEE FOOTN. 805 IN CASE OF VEHICLES EQUIPPED WITH ANTI-LOCK BRAKING SYSTEM,DELIVER ADDITIONALLY: 1X 000 545 39 19, Replaced By: A1245450114
406
SWITCH HAND BRAKE CONTROL
408
BRACKET SWITCH, 021 011126 022,023 043062 032,033 020641 036,037 013439
410
CLIP TAIL LAMP CABLE HARNESS TO REAR LID
410
CLIP TAIL LAMP CABLE HARNESS TO REAR LID
413
SHEET METAL SCREW , Replaced By: N007981004233
419
BRACKET COMBINATION SWITCH PLUG-CONNECTION
419
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS A 007580, Replaced By: A1265452340
422
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
425
SCREW TAIL LAMP GROUND CABLE TO WHEEL ARCH PANEL
428
LOCK WASHER T-FITTING TO BRACKET
431
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
479
SCREW CONTROL UNIT TO BRACKET
479
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
479
SCREW , Replaced By: N007985004107
479
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
482
LOCK WASHER T-FITTING TO BRACKET
482
LOCK WASHER T-FITTING TO BRACKET
482
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
485
SOCKET-TERMINAL STRIP 4-POLE
488
COMBINATION BOLT INSTRUMENT PANEL TO COWL,BOTTOM
491
CABLE CONNECTOR , FROM CHASSIS:108.016 050831 108.018 053598 108.019 054235
494
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
494
SCREW , Replaced By: N007985004107
497
LOCK WASHER T-FITTING TO BRACKET
500
SHEET METAL SCREW CABLE CONNECTOR TO RIGHT WHEEL ARCH PANEL
