Поз.
Артикул
Описание

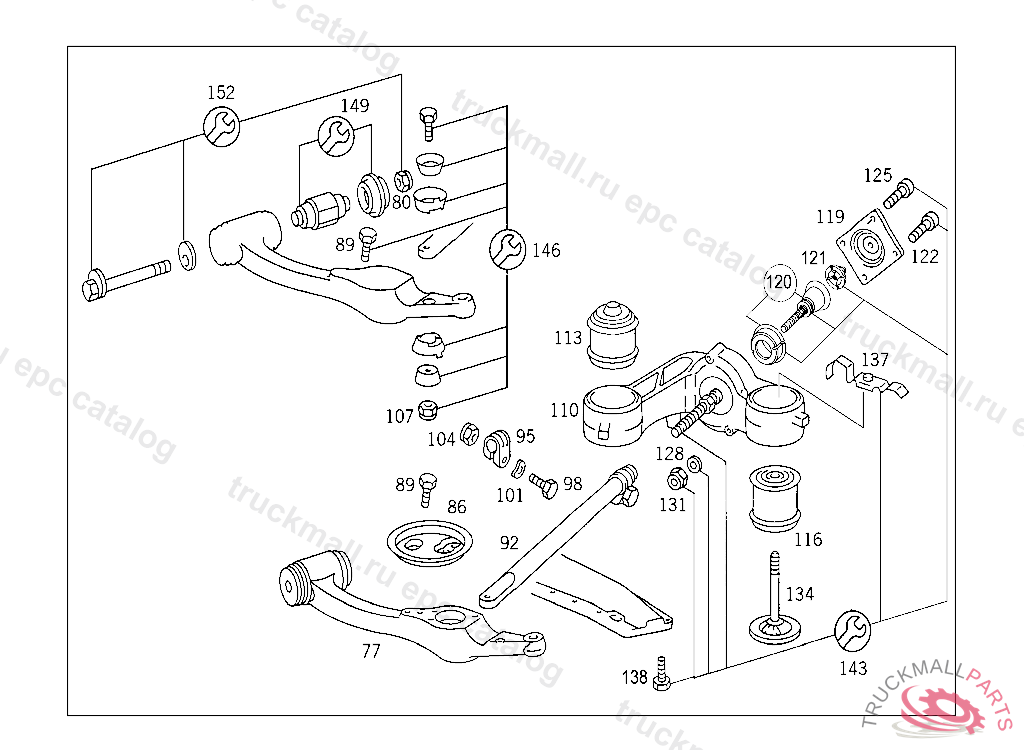

77
TRANSVERSE CONTROL ARM RIGHT,WITH RUBBER MOUNTING
77
TRANSVERSE CONTROL ARM LEFT,WITH RUBBER MOUNTING
80
NUT TIGHTENER PULLEY TO LEVER M16X1,5,D 124754
80
NUT CENTRAL JOINT
86
SPRING CASE RIGHT
86
SPRING CASE LEFT
89
SCREW SPRING CASE TO CONTROL ARM
92
GUIDE ROD , 000 032206 003 014989 102,103 021331 105 029120
95
CLAMP
98
SCREWM 8X40
101
SPRING WASHER , Replaced By: N000137008212
104
NUT , Replaced By: N913004008001
104
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
107
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
107
NUT , Replaced By: N910113012003
110
BEARING BRACKET RIGHT,A 386607
110
BEARING BRACKET LEFT,A 386607
113
BEARING FRONT
116
BEARING REAR
119
HOUSING (BEARING CUP),BRAKE BRACING
120
JOINT BRAKE BRACING
121
RUBBER BUFFER
122
SCREW BEARING CUP TO BEARING BRACKET
125
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
128
WASHER RADIATOR TO RUBBER MOUNTING
131
NUT COMPRESSOR TO MOUNTING PLATE, UP TO IDENT NO. 081148 EXCEPT FOR 079775
134
SCREW BEARING BRACKET TO FRAME
137
NUT BEARING BRACKET TO FRAME
138
SCREW FRONT SUBFRAME TO BEARING BRACKET
143
REPAIR KIT SUPPORTING JOINT,A 386607
146
REPAIR KIT BRAKE BRACING TO CONTROL ARM, 000 032206 003 014989 102,103 021331 105 029120
149
REPAIR KIT LOWER CONTROL ARM TO FRAME
152
REPAIR KIT ECCENTRIC PIN
