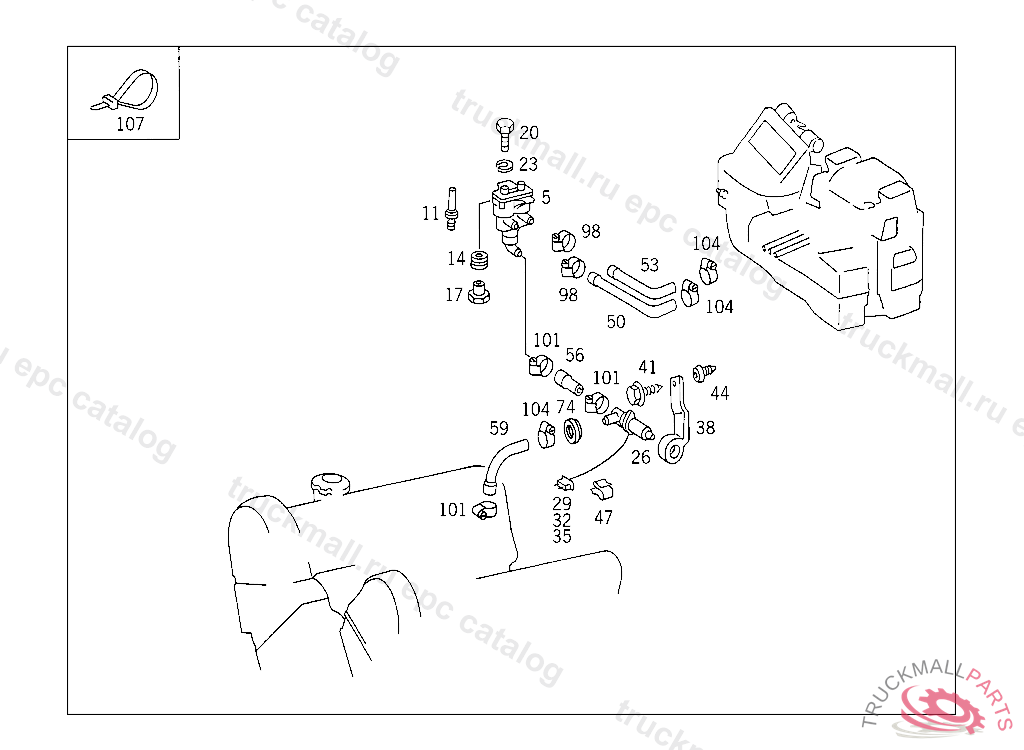

Поз.
Артикул
Описание
11
MAGNET
14
GROMMET TACHOGRAPH OR SPEEDOMETER
17
THREADED CHUCK WATER VALVE TO BRACKET, FROM MODEL YEAR '81
20
SCREW TAIL LAMP TO BRACKET
23
SPRING WASHER LICENSE PLATE TO BRACKET
26
RECIRCULATING PUMP , FROM MODEL YEAR '81
29
PLUG HOUSING
32
COVER
35
PLUG PIN ADDITIONAL CABLE TO SERIES CABLE
38
BRACKET CIRCULATION PUMP,A 346727
41
SHEET METAL SCREW
44
TREENAIL BRACKET TO WINDOW SILL
44
TREENAIL , Replaced By: A6739880025
47
CLIP PLUG TO REAR PILLAR
50
HOSE BETWEEN HEAT EXCHANGER AND WATER VALVE,LEFT
53
HOSE BETWEEN HEAT EXCHANGER AND WATER VALVE ,RIGHT
56
HOSE , Replaced By: A4635016382
56
HOSE FROM WATER VALVE TO RECIRCULATING PUMP
74
GROMMET FEED LINE TO FIRE WALL,F 016102
98
CLAMP PRESSURE REGULATOR
98
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
101
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
101
CLAMP , Replaced By: N000000000667
104
CLAMP , Replaced By: A0059970190
104
HOSE CLAMP LINE MOUNTING
107
LOOM TIE TO MOUNT PLASTIC PIPING
