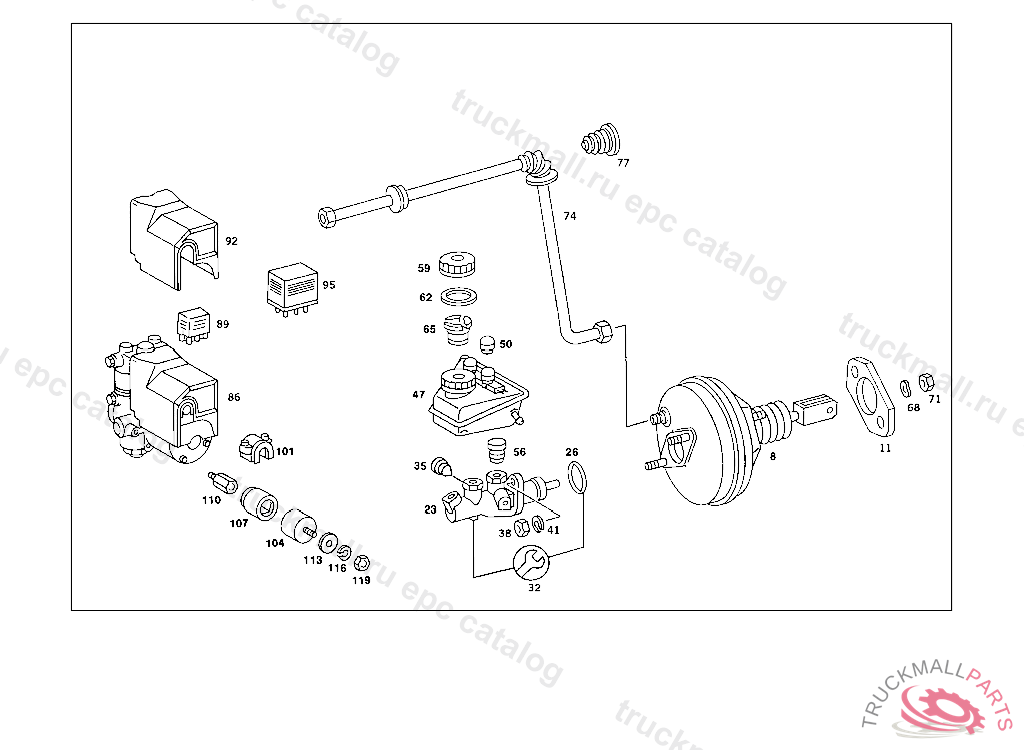

Поз.
Артикул
Описание
8
BRAKE BOOSTER ASSEMBLY
8
BRAKE BOOSTER , Replaced By: A0034309230
8
BRAKE BOOSTER ASSEMBLY , Replaced By: A0044306530
11
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30
11
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
23
BRAKE MASTER CYLINDER , DELIVER ADDITIONALLY: SCREW PLUG 126 997 02 32
23
BRAKE MASTER CYLINDER , Replaced By: A0044307501
26
SEAL RING
32
REPAIR KIT BRAKE MASTER CYLINDER
35
SCREW PLUG BRAKE MASTER CYLINDER
35
SCREW PLUG , Replaced By: A1269970232
38
NUT
41
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
47
RESERVOIR BRAKE MASTER CYLINDER
47
RESERVOIR , Replaced By: A0024310802
50
PROTECTIVE CAPGIRLING
50
PROTECTIVE CAP , 000 113166 003 057448 007 046963 083 001049 086 000766 093 000621 102,103 092825 105 116297 183 001424 190 001362
56
BUSHING
56
BUSHING , Replaced By: A0004311550
59
FILLER CAP BUTTRESS THREAD
62
SEAL RING
65
STRAINER
65
STRAINER , Replaced By: A0004314334
68
SPRING WASHER , Replaced By: N000137008212
71
NUT
74
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
77
GROMMET
86
BRAKE PRESSURE REGULATOR (HYDRAULIC UNIT)
86
BRAKE PRESSURE REGULATOR , Replaced By: A0014318012, +001A0015426719, +001A0005461375
89
RELAY (ENGINE RELAY) TO 001 431 80 12
89
RELAY (ENGINE RELAY)
92
PROTECTIVE CAP TO 001 431 66 12,001 431 67 12, 001 431 68 12
92
PROTECTIVE CAPTO 001 431 80 12
95
RELAY , 123.003,028 105805 123.026 106004 123.030 032306 123.033 090757 123.053 023337 123.086 007202 123.093 009553 123.120 262872 123.102,103,125 255626 123.123 254722 123.105,132 240923 123.130 240457 123.183 016222 123.190 022642 123.200 040194 123.220 031448 123.223 040309 123.243 006912 123.280 001558 123.283 005502
95
RELAY SOLENOID VALVE TO 001 431 80 12
101
CLAMPTO 001 431 80 12
101
CLAMPTO 001 431 68 12
104
BRACKET HYDRAULIC UNIT TO BRACKET
107
RUBBER BUFFER BRAKE POWER REGULATOR TO BRACKET
110
THREADED UNION BRAKE POWER REGULATOR TO BRACKET
110
SCREW , Replaced By: A1244310075
110
THREADED UNION , Replaced By: A2024310075
113
WASHER , Replaced By: N009021006208
113
WASHER COMPRESSED AIR LINE TO BRACKET
116
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
119
NUT BATTERY MOUNTING
119
NUT CYLINDER TO BRACKET TO0002902112
