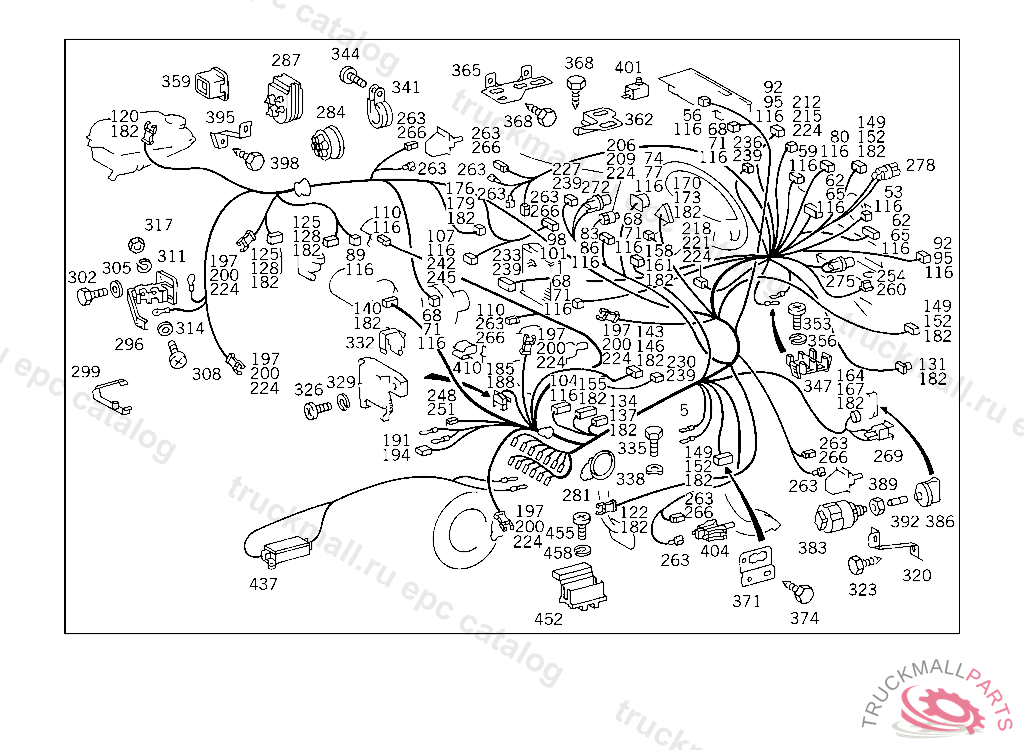

Поз.
Артикул
Описание
5
CABLE HARNESS INBOARD, WITH HEATING AUTOMATICS
5
CABLE HARNESS INBOARD,WITH TEMPMATIK
5
ELECTRIC CABLE INBOARD,WITH TEMPMATIK
5
CABLE HARNESS INBOARD,WITH TEMPMATIK
5
ELECTRIC CABLE INBOARD,WITH TEMPMATIK
5
CABLE HARNESS INBOARD,WITH AIR CONDITIONING AUTOMATICS
5
ELECTRIC CABLE INBOARD,WITH AIR CONDITIONING AUTOMATICS
5
ELECTRIC CABLE INBOARD,WITH AIR CONDITIONING AUTOMATICS
5
CABLE HARNESS INBOARD, WITH HEATING AUTOMATICS
5
ELECTRIC CABLE INBOARD, WITH HEATING AUTOMATICS
5
CABLE HARNESS INBOARD,WITH AIR CONDITIONING AUTOMATICS
5
CABLE HARNESS , Replaced By: A1265407106
5
CABLE HARNESS , Replaced By: A1265405232, +001A1265406610
5
CABLE HARNESS , Replaced By: A1265405106, +001A1265406610
5
CABLE HARNESS , Replaced By: A1265405032, +001A1265406610
5
CABLE HARNESS , Replaced By: A1265404932, +001A1265406610
5
CABLE HARNESS , Replaced By: A1265404832, +001A1265406610
53
CASE 4-POLE
56
PIN BUSHING HOUSING DOME LIGHTING
59
PIN BUSHING HOUSING SKID THRESHOLD SWITCH
62
PIN BUSHING HOUSING CONTROL UNIT, 14-POLE
62
PIN BUSHING HOUSING , Replaced By: A0195452928, +001A0195453128
62
PIN BUSHING HOUSING , Replaced By: A0145451328
65
COVERTO 019 545 29 28
68
PIN BUSHING HOUSING BIPOLAR
71
COVERTO 010 545 10 28
74
PIN BUSHING HOUSING INSTRUMENT CLUSTER,15-POLE
77
COVERTO 010 545 04 28
80
PLUG. PIN BUSHING HOUSING HAZARD WARNING LIGHT, 8-POLE
83
PIN BUSHING HOUSING SENSOR
86
COVERTO 009 545 16 28
89
PIN BUSHING HOUSING CRYOSTAT
92
PIN BUSHING HOUSING MIRROR ADJUSTMENT SWITCH, 6-POLE
95
COVERTO 010 545 11 28
98
PIN BUSHING HOUSING CONTROL UNIT
101
COVERTO 010 545 00 28
104
PIN BUSHING HOUSING LAMP CONTROL
107
PIN BUSHING HOUSING 4-POLE
110
PIN BUSHING HOUSING STOP LIGHT SWITCH
116
ROUND PIN BUSHING2.5 MM2
116
PIN BUSHING , Replaced By: A0025459926
120
PIN BUSHING HOUSING BIPOLAR
122
PIN BUSHING HOUSING BIPOLAR
125
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
128
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
131
PIN BUSHING HOUSING SPEED TRANSMITTER
134
PIN BUSHING HOUSING 4-POLE
137
COVER
140
PIN BUSHING HOUSING HEADLAMP,WIPER MOTOR,BLOWER SWITCH
143
PIN BUSHING HOUSING 12-POLE
146
COVERTO 009 545 26 28
149
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
152
COVERTO 006 545 81 28
155
PIN BUSHING HOUSING RELAY CLUSTER
155
PIN BUSHING HOUSING , Replaced By: A0155454828
158
PIN BUSHING HOUSING STEERING COLUMN MOUNTED CABLE HARNESS, 14-POLE
161
COVERTO 009 545 23 28
164
COVER LIGHT SWITCH
167
PIN BUSHING HOUSINGTO 014 545 64 28
170
PIN BUSHING HOUSING IGNITION/STARTING SWITCH,7-POLE
173
COVERTO 009 545 73 28,
176
PLUG TRIPLE
176
PIN BUSHING HOUSING 4-POLE, UP TO CHASSIS: 114.005,007,008,015,017 049721 114.010 044486 114.021 003371 114.022 007377 114.023 001704 FROM CHASSIS SEE 10948
179
COVERTO 007 545 00 28
182
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
182
ROUND PIN BUSHING , Replaced By: A0035452626
185
PLUG STARTING MOTOR CABLE HARNESS PLUGCONNECTION
188
ROUND PIN BUSHING4.0 MM
191
PLUG HOUSING
194
PLUG PIN
197
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
200
COVERTO 008 545 08 28,008 545 09 28
206
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
209
COVERTO 011 545 10 28
212
CONNECTOR LOWER PART
215
COVER UPPER PART
218
CONNECTOR SEAT HEATER SWITCH, 7-POLE, 107.042 011569 ALSO INSTALLED ON 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009132 ALSO INSTALLED ON 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 107.046 009987 ALSO INSTALLED ON 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
221
COVERTO 000 821 26 26
224
ROUND PIN BUSHING4 MM2
227
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
230
PIN BUSHING HOUSING TELL-TALE LAMP ASD
233
PIN BUSHING HOUSING VALVE STRIP,8-POLE
236
PIN BUSHING HOUSING SOLENOID VALVE
239
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
239
CONTACT BUSHING , Replaced By: A0035450626
242
PLUG SOCKET , Replaced By: A0165455728, +001A0005456183
242
PLUG TEMPMATIK CONTROL BOX, 6-POLE
245
CONTACT SPRING0.5-1.0 MM2
245
CONTACT SPRING , Replaced By: A0115458126
245
CONTACT SPRING
245
CONTACT SPRING , Replaced By: A0065458926
248
PIN BUSHING HOUSING DIAGNOSIS BOX
251
ROUND PIN BUSHING LIGHT SWITCH
254
PIN BUSHING HOUSING BIPOLAR
260
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
260
FLAT PIN BUSHING , Replaced By: A0075458426
263
PIN BUSHING RADIO SET
266
INSULATING SLEEVETO 000 546 43 40
269
SOCKET
272
SOCKET
275
SOCKET HEATING CONTROL LIGHTING,5 255830
278
SOCKET (SET POINT SENDER UNIT)
281
GROMMET
281
GROMMET
281
GROMMET , Replaced By: A1079971581
284
GROMMET ELECTRIC CABLE THRU FIRE WALL
287
GROMMET
296
SOCKET-TERMINAL STRIP TERMINAL: 30
296
BRACKET , FIRST EXHAUST STOCK OF OLD PART NUMBERS UP TO IDENT NO. A 434548, Replaced By: A1265400869
299
BRACKET ENGINE CABLE HARNESS TO BATTERY FRAME
302
SCREW APPARATUS PLATE M 6X80
302
SCREW COVER PLATE TO COVER PLATE M 6 X 12
302
SCREW , Replaced By: N304017006018
305
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
305
WASHER , Replaced By: A6739901140
305
WASHER COMPRESSED AIR LINE TO BRACKET
305
WASHER
305
WASHER CABLE CONNECTOR TO FOOT OPERATED PARKING BRAKE,A 434549
308
SCREW , Replaced By: A0029903712
311
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
314
WASHER COMPRESSED AIR LINE TO BRACKET
314
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
317
NUT BALL PIVOT TO LEVER
320
BRACKET , FIRST EXHAUST STOCK OF OLD PART NUMBERS UP TO IDENT NO. A 434548, Replaced By: A1265464043
320
BRACKET MAIN CABLE HARNESS TO LEFT TORSION BAR BEARING COVERING
323
SHEET METAL SCREW BRACKET TO CAB FLOOR
326
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
326
SCREW , Replaced By: N007985004107
329
LOCK WASHER T-FITTING TO BRACKET
332
CLIP BELT LOCK TO SEAT RAIL
335
SCREW PUMP TO BRACKET
335
SCREW COVER PLATE TO BRACKET
338
SPRING WASHER LICENSE PLATE TO BRACKET
341
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
344
SCREW ,K 062140, Replaced By: N007985006580
344
SCREW APPARATUS PLATE TO CAB,K 062140
347
SOCKET-TERMINAL STRIP TERMINAL 58 D
353
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
353
SCREW , Replaced By: N007985004107
356
LOCK WASHER T-FITTING TO BRACKET
359
PLUG SOCKET TERMINAL 58 D
362
BRACKET COMBINATION SWITCH PLUG-CONNECTION
365
BRACKET COMBINATION SWITCH PLUG-CONNECTION
368
SHEET METAL SCREW ALARM UNIT TO STRUT
368
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
371
BRACKET COUPLER
374
SHEET METAL SCREW BRACKET TO CAB FLOOR
383
SWITCH (LIGHT SWITCH)
383
SWITCH , Replaced By: A0005456204, +001A1249902140
383
SWITCH , FIRST EXHAUST STOCK OF OLD PARTS UP TO CHASSIS F 002086, Replaced By: A0005455404
386
HANDLE , Replaced By: A2025450081
386
KNOB LIGHT ROTARY SWITCH
389
NUT WIRE CABLE TO INSTRUMENT PANEL
392
BULB LIGHTING OF LEFT AND RIGHT OPERATING UNITS AND BLOWER SWITCH
392
BULB , Replaced By: N000000001061
395
BRACKET MAIN CABLE HARNESS TO RIGHT TORSION BAR BEARING COVERING
398
SHEET METAL SCREW PRE-GLOW TIME RELAY TO STEERING COLUMN JACKET TUBE CONSOLE
398
SHEET METAL SCREW ALARM UNIT TO STRUT
401
SWITCH WARNING BUZZER
404
SWITCH HAND BRAKE CONTROL
410
CLIP TAIL LAMP CABLE HARNESS TO REAR LID
410
CLIP LINE MOUNTING
437
CABLE HARNESS (ADDITIONAL FUSE BOX),F 023505F 051967
452
SOCKET-TERMINAL STRIP
455
SCREW ELECTRIC CABLE TO HORN
458
LOCK WASHER T-FITTING TO BRACKET
