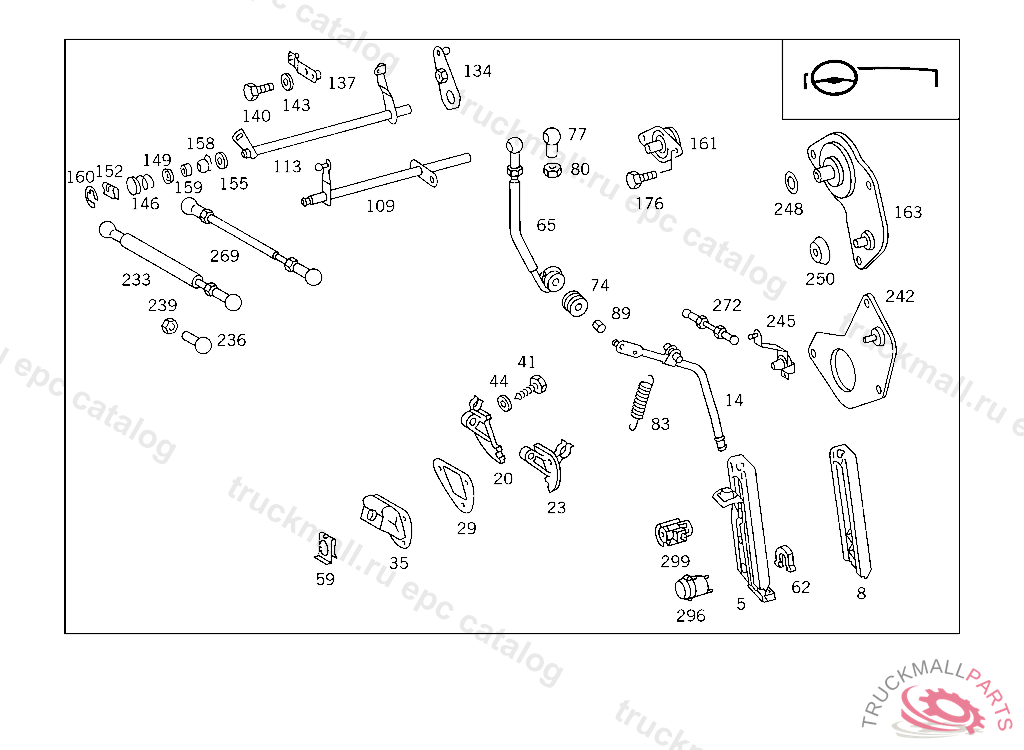

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
14
LEVER ACCELERATOR PEDAL
14
LEVER ACCELERATOR PEDAL, ONLY USED W/ACCELERATION SKID CONTROL (A S R)
20
BEARING ACCELERATOR PEDAL
23
BEARING ACCELERATOR PEDAL
29
SHIM BEARING TO FIRE WALL
35
BOOT BEARING TO FIRE WALL
41
SHEET METAL SCREW RIGHT TOP ANTINOISE CAPSULE TO CAB B 6.3X25
44
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
44
WASHER COMPRESSED AIR LINE TO BRACKET
59
LOCK
59
LOCK , Replaced By: A0029945545
62
BRACKET , Replaced By: A1249888678
62
CLIP
65
ROD ACCELERATOR PEDAL TO BRACKET
65
ROD ACCELERATOR PEDAL TO BRACKET, ONLY USED W/ACCELERATION SKID CONTROL (A S R)
65
ROD , Replaced By: A1263002115
65
ROD , Replaced By: A1263001515
74
RUBBER BUFFER
77
CONICAL CUPTO 102 070 09 75
77
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
77
BALL SOCKET , Replaced By: A0009918922
80
NUT TACHOGRAPH TO BRACKET
83
SPRING
89
BUSHING BALL SOCKET TO ROD
109
SHAFT
134
LEVER
140
SCREW COVER PLATE TO COVER PLATE M 6 X 12
140
SCREW , Replaced By: N304017006018
143
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
143
WASHER COMPRESSED AIR LINE TO BRACKET
146
SPRING CONTROL SHAFT TO ENGINE
149
RETAINER CONTROL LEVER
152
CLIP , Replaced By: N000000002965
152
SCREW
155
WASHER CONTROL LEVER
158
RUBBER BUFFER
158
JOINT BALL , Replaced By: A1263010485, +001A1163010150
159
BUSHING
160
LOCK PLATE RELEASE LEVER TO SHAFT
163
BRACKET
163
BRACKET , Replaced By: A1263002440
163
BRACKET , Replaced By: A1263002340
163
BRACKET
176
SCREW
176
SCREW , Replaced By: N910106006000
236
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
236
BALL SOCKET , Replaced By: A0009918922
236
CONICAL CUPTO 102 070 09 75
239
NUT TACHOGRAPH TO BRACKET
242
LEVER
245
LEVER
245
LEVER
245
LEVER , ONLY USED W/ACCELERATION SKID CONTROL (A S R)
245
LEVER , ONLY USED W/ACCELERATION SKID CONTROL (A S R)
245
LEVER
245
LEVER , ONLY USED W/ACCELERATION SKID CONTROL (A S R)
245
LEVER , ONLY USED W/ACCELERATION SKID CONTROL (A S R)
248
WASHER CONTROL LEVER
250
WASHER CONTROL LEVER
269
ROD FROM CONTROL SHAFT TO SLOTTED GATE
272
ROD CONTROL LEVER TO CONTROL SHAFT
296
STOP FULL THROTTLE
299
SWITCH (KICK-DOWN SWITCH)
999
SPRING , ONLY USED W/ACCELERATION SKID CONTROL (A S R)
999
SPRING , ONLY USED W/ACCELERATION SKID CONTROL (A S R)
999
WIRE CABLE , ONLY USED W/ACCELERATION SKID CONTROL (A S R)
999
WIRE CABLE , Replaced By: A1263005030
