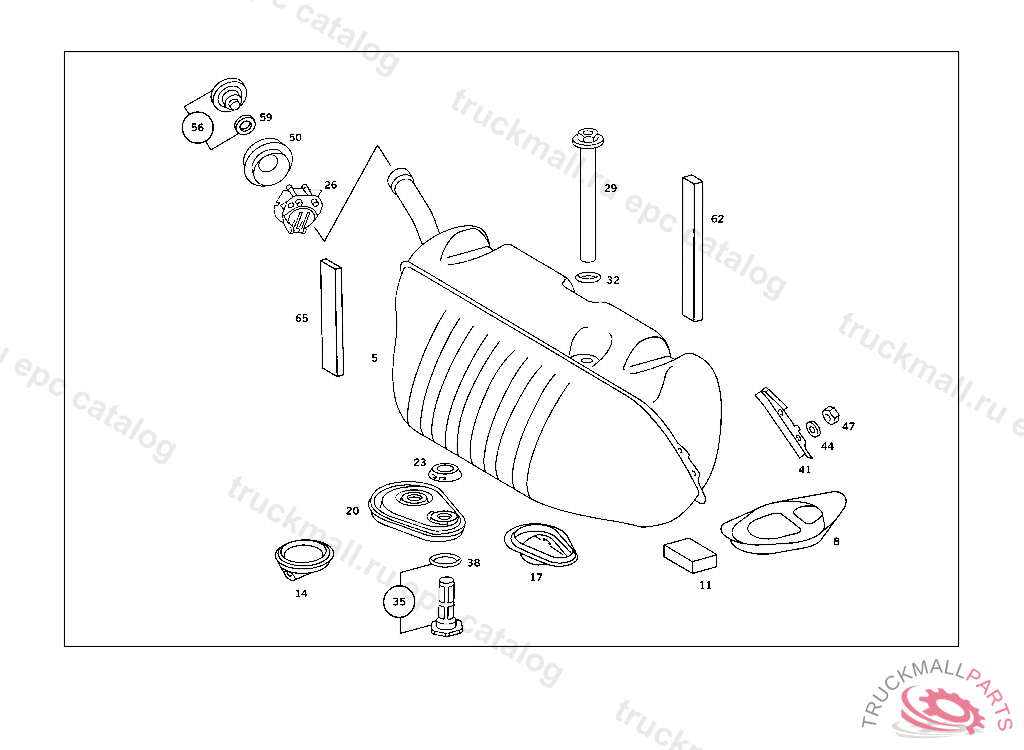

Поз.
Артикул
Описание
5
FUEL TANK90 L, NOT FOR R.S.A.
5
FUEL TANK , Replaced By: A1264702401
5
FUEL TANK , Replaced By: A1264704001
8
GASKET ,A175549
11
GASKET FLOOR
14
GASKET FLOOR,A175549
17
BOOT FLOOR
20
BOOT FLOOR
23
WASHER
26
FUNNEL , Replaced By: A1694700029
29
GAUGE SENDER UNIT
32
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
35
FUEL STRAINER PARTS KIT
35
FUEL STRAINER , Replaced By: A1264700086
35
SCREW PLUG , Replaced By: A1264700106
35
FUEL STRAINER , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.: A175549, Replaced By: A2014700506
38
SEAL RING
41
REINFORCEMENT LEFT
41
REINFORCEMENT RIGHT
44
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
47
NUT
47
NUT , Replaced By: N304032008006
50
GROMMET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 021 001206 022,023 047750 032,033 022999 036,037 015144, Replaced By: A1239973581
50
GROMMET , Replaced By: A1239973581
50
GROMMET FILLER NECK THRU FENDER RECESS
56
FILLER CAP , Replaced By: A0004700730
56
FILLER CAP , Replaced By: A1244700005
56
FILLER CAP , Replaced By: A1244700005
59
SEAL RING
62
PAD FUEL TANK,FRONT SIDE, 020 008805 023 010290 026 002881 120 012502 123 005628 126 006101 130 009362
