Mercedes A0008201582 - КОНСОЛЬ

420 SEL SONDERSCHUTZ/SPECIAL EDITION 126.035

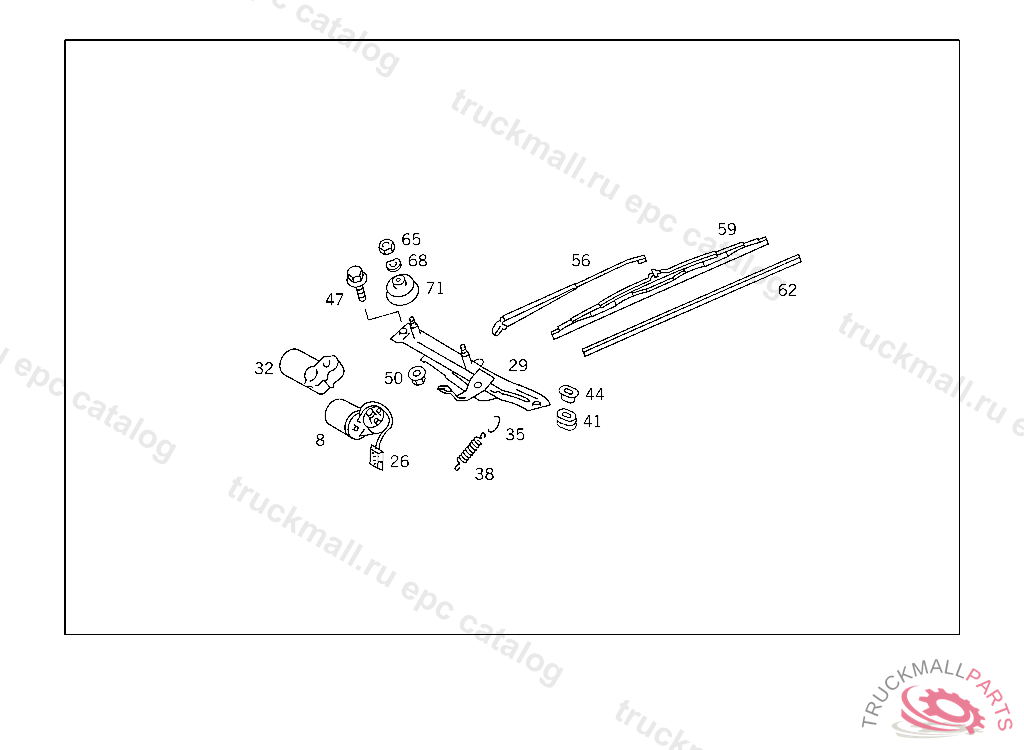

82 ELECTRICAL SYSTEM - 120 PANE WIPER

Поз.
Артикул
Описание
8
A1268209342
ELECTRIC MOTOR WIPER MOTOR
8
A1268201542
ELECTRIC MOTOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 02.04.89, Replaced By: A1268209342
26
A1238210125
PLUG 5-POLE
29
A0008201582
CONSOLE PANE WIPER LINKAGE WITH SHEET BAR TO FIRE WALL
32
A0008240949
CAP
35
A0008240432
CLAMP
38
A1268240035
SPRING WIPER MOTOR
41
A0008241217
BUSHING WIPER SYSTEM BOSCH
44
A0008243499
SLEEVE WIPER SYSTEM BOSCH
47
N914126006006
SCREW
50
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
56
A1268203044
WIPER ARM RIGHT
56
A1268202944
WIPER ARM LEFT
59
A1268200445
WIPER BLADE LEFT
59
A1268200345
WIPER BLADE LEFT
62
A0008242527
WIPER RUBBER
65
N304032008006
NUT
68
N000137008204
SPRING WASHER , Replaced By: N000137008212
71
A1268240072
CAPSULE WIPER SPINDLE COVERING
