Поз.
Артикул
Описание

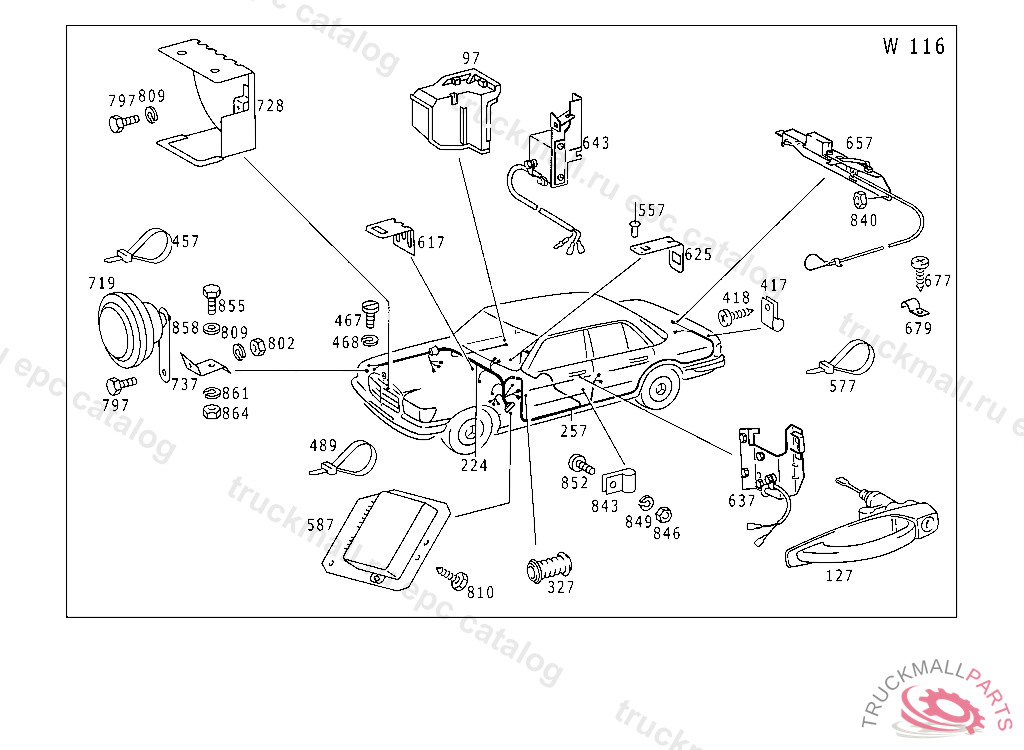

97
EDGING RIGHT,AT RIGHT FRONT DOOR SWITCH
127
DOOR HANDLE LEFT FRONT DOOR, WITH SPECIAL LOCK
224
ELECTRIC CABLE FROM CONTROL UNIT TO ACOUSTIC SIGNAL UNIT
257
ELECTRIC CABLE 6-PIN PLUG,REAR DOORS AND LUGGAGE COMPARTMENT CONTACT
327
HOSE LEFT AND RIGHT FRONT DOOR CABLE HARNESS
417
CLAMP WIRE CABLE TO FIRE WALL
418
SHEET METAL SCREW MODULE TO HOUSING
418
SHEET METAL SCREW , Replaced By: N000000000453
457
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
467
SCREW ELECTRIC CABLE TO HORN
468
LOCK WASHER T-FITTING TO BRACKET
489
LOOM TIE
557
RIVET
577
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
577
LOOM TIE TO MOUNT PLASTIC PIPING
587
CONTROL UNIT
617
ANGLE CONTACT SWITCH IN ENGINE COMPARTMENT
625
ANGLE CONTACT SWITCH TO INSTRUMENT PANEL
625
ANGLE CONTACT SWITCH TO INSTRUMENT PANEL
637
SWITCH LEFT FRONT DOOR
643
SWITCH RIGHT FRONT DOOR
657
LOCKING MECHANISM LUGGAGE COMPARTMENT
677
SCREW
677
SHEET METAL SCREW , Replaced By: N000000002062
679
CLAMP TO MOUNT PLASTIC PIPING
719
HORN HORN,IN ENGINE COMPARTMENT
728
BRACKET HORN,IN ENGINE COMPARTMENT
737
ANGLE HORN,IN ENGINE COMPARTMENT
797
SCREW , Replaced By: N304017008016
797
SCREW BRACKET TO CROSS CONNECTION STRUT
802
NUT
802
NUT , Replaced By: N304032008006
809
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
810
SHEET METAL SCREW ALARM UNIT TO STRUT
840
NUT TACHOGRAPH TO BRACKET
843
CLAMP WIRE CABLE TO FIRE WALL
846
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
849
LOCK WASHER T-FITTING TO BRACKET
852
SCREW ATTACHMENT, MARKER LIGHT M 4X12
855
SCREW PIPE CLAMP
858
WASHER EXHAUST MUFFLER TO STRAP
861
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
864
NUT , Replaced By: N304032008006
864
NUT
