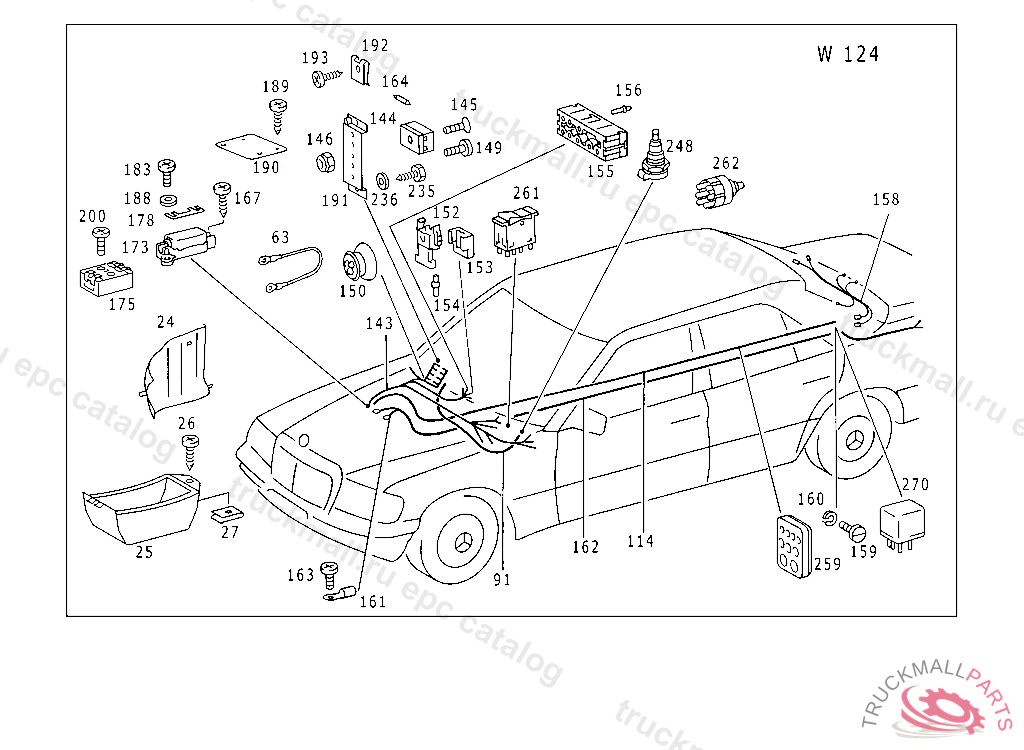

Поз.
Артикул
Описание
24
PANELLING FRONT PANEL,LATERAL RIGHT,NO.9051I NO.5076I NO.8316I NO.8326I NO.8412I NO.6122I NO.3112I NO.7101I I
25
COVERING
25
COVERING
26
SHEET METAL SCREW BRACKET TO FIRE WALL
27
LOCK. SHEET METAL NUT PLATE TO FRAME,V 202043
63
ELECTRIC CABLE FROM DISTRIBUTOR TERMINAL TO ADDITIONAL FUSE
63
ELECTRIC CABLE TELEPHONE FEED-IN
91
ELECTRIC CABLE FROM FUSE BOX TO PLUG SOCKET
114
ELECTRIC CABLE FROM FUSE BOX IN ENGINE COMPARTMENT TO APPARATUS PLATE IN LUGGAGE COMPARTMENT
114
ELECTRIC CABLE FROM FUSE BOX IN ENGINE COMPARTMENT TO APPARATUS PLATE IN LUGGAGE COMPARTMENT
114
ELECTRIC CABLE FROM FUSE BOX IN ENGINE COMPARTMENT TO APPARATUS PLATE IN LUGGAGE COMPARTMENT
143
ELECTRIC CABLE
143
ELECTRIC CABLE
143
ELECTRIC CABLE FROM FUSE BOX TO TAXIMETER AND TO RADIOPHONE
144
FUSE BOX DOUBLE,WITH DIODE A + C
144
FUSE BOX BIPOLAR,K 100807 MIT AUSNANME VON K 093739
145
WASHER
145
SCREW FUSE BOX TO BRACKET
146
NUT ANTENNA COMBINER TO COVERING
149
SCREW ELECTRIC CABLE TO FUSE BOX
150
GROMMET ELECTRIC CABLE THRU FIRE WALL
152
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
153
COVERTO 008 545 08 28,008 545 09 28
154
ROUND PIN BUSHING4 MM2
155
PIN BUSHING HOUSING SWITCH
156
ROUND PIN BUSHING2.5 MM2
158
ELECTRIC CABLE FROM APPARATUS PLATE TO TRANSCEIVER
159
SCREW ELECTRIC CABLE TO CABLE CONNECTOR
160
LOCK WASHER T-FITTING TO BRACKET
161
CABLE SHOE
162
ELECTRIC CABLE ADDITIONAL FUSE BOX
163
SCREW WIPER PULSE SENDER UNIT TO APPARATUS PLATE
163
SCREW , Replaced By: N007985004107
164
FUSEA8
164
FUSEA16
164
FUSE (SPARE FUSE) 5 A
164
FUSE , Replaced By: N072581005100
164
FUSE , Replaced By: N072581008101
167
SHEET METAL SCREW BRACKET TO CAB FLOOR
167
SHEET METAL SCREW RELAY TO APPARATUS SUPPORT,K 182153K 239549
167
SHEET METAL SCREW
173
FUSE BOX PRE-GLOW SYSTEM 50 A
175
FUSE BOXJ + L
175
FUSE BOXE + G
178
FUSE50 A
178
FUSE30A
183
COMBINATION BOLT FUSE IN FUSE BOX
183
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
188
LOCK WASHER PLUG SOCKET TO REAR CROSS MEMBER
189
SHEET METAL SCREW WINDOW SILL GIRDER LOWER PART,4 273689
190
BRACKET FUSE BOX TO DAMPER STRUT COVERING
191
BRACKET FUSE BOX
192
LOCK. SHEET METAL NUT PLATE TO FRAME,V 202043
192
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
193
SCREW
193
SHEET METAL SCREW , Replaced By: N000000002062
200
COMBINATION BOLT FUSE IN FUSE BOX
235
SHEET METAL SCREW BRACKET TO CAB FLOOR
235
SHEET METAL SCREW , ONLY FOR MODELS 123.020,023,043,083
236
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
248
PLUG SOCKET
248
PLUG SOCKET AT COVERING
259
GROMMET REAR PANEL,RIGHT
261
SWITCH TOP COVERING IN HOUSING
261
SWITCH GLOVE COMPARTMENT
261
SWITCH TAXI ROOF SIGN
262
SWITCH (LIGHT SWITCH)
270
RELAY , 123.003,028 105805 123.026 106004 123.030 032306 123.033 090757 123.053 023337 123.086 007202 123.093 009553 123.120 262872 123.102,103,125 255626 123.123 254722 123.105,132 240923 123.130 240457 123.183 016222 123.190 022642 123.200 040194 123.220 031448 123.223 040309 123.243 006912 123.280 001558 123.283 005502
