Поз.
Артикул
Описание
5

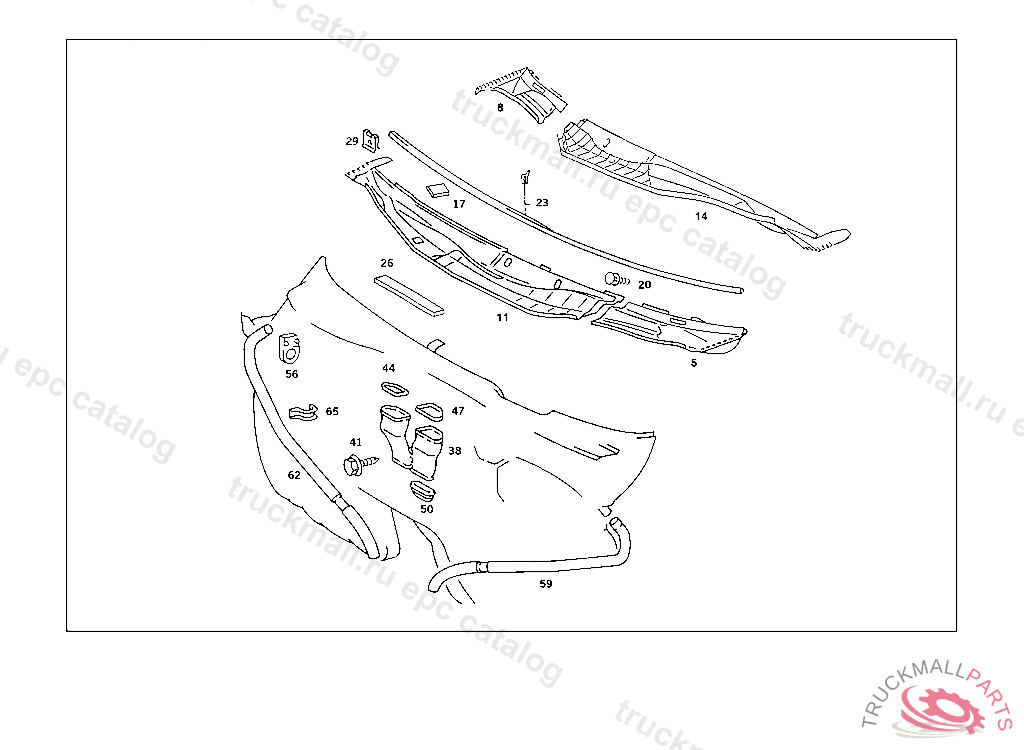

COVERING AIR INLET AT OUTSIDE CENTRAL PART ON THE LEFT BELOW WINDSHIELD
11
COVERING AIR INLET AT OUTSIDE CENTRAL PART ON THE RIGHT BELOW WINDSHIELD
17
COVERTO 126 830 12 13
20
RIVET COVERING TO BRACKET
23
SEAL BETWEEN CENTRAL PART BELOW WINDSHIELD AND COVERING 1604 MM
26
SEAL BETWEEN CENTRAL PART BELOW WINDSHIELD AND COVERING 125 MM
29
CLIP COVERING TO INSIDE CENTRAL PART BELOW WINDSHIELD
38
BAFFLE WATER DRAIN,CENTER
41
SHEET METAL SCREW
44
SEAL BAFFLE TO CENTRAL PART BELOW WINDSHIELD
47
SEAL
50
GROMMET WATER DRAIN,AT BAFFLE
56
VALVE
59
HOSE WATER DRAIN,INSIDE CENTRAL PART,LEFT
62
HOSE WATER DRAIN,INSIDE CENTRAL PART,RIGHT
65
BRACKET HOSE TO WHEELHOUSE
