Поз.
Артикул
Описание

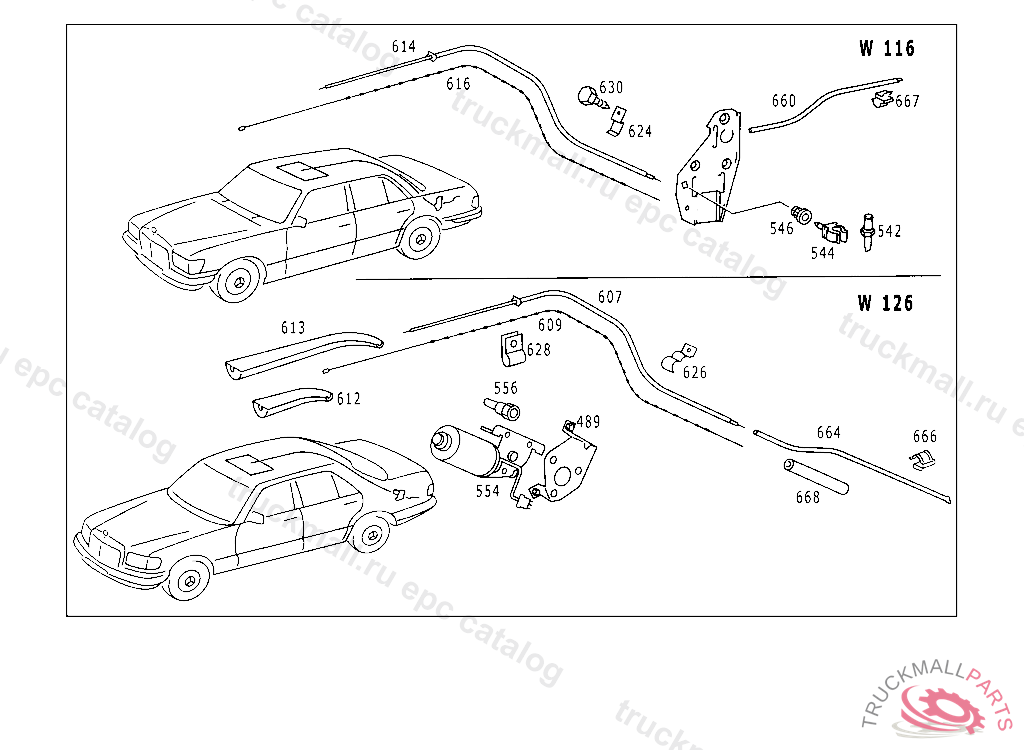

489
BRACKET ENGINE, 126.021 004329 022,023 014560 032,033 006154 036,037 005336 120 000196
542
LINK EMERGENCY CRANK, UP TO CHASSIS126.021 004328 022,023 014559 032,033 006153 036,037 005335 120 000195
544
BRACKET CONNECTOR
546
CLIP CONNECTOR
554
ELECTRIC MOTOR ELECTRIC SLIDING ROOF, 033 102016 123 329278 130 276373 ORDER ADDITIONALLY: 3X FUSE 000 994 89 45
556
CAP , 126.021 004329 022,023 014560 032,033 006154 036,037 005336 120 000196
607
TUBE SLIDING ROOF
607
TUBE SLIDING ROOF
609
CABLE SLIDING ROOF
609
CABLE
612
COVERING , FROM CHASSIS 126.021 023757 022,023 083406 032,033 042385 036,037 030831 120 041690
613
COVERING , FROM CHASSIS 126.021 023757 022,023 083406 032,033 042385 036,037 030831 120 041690
614
TUBE
614
TUBE
616
PULL. CABLE
616
CABLE
624
CLAMP TUBE TO REAR PILLAR
626
CLAMP TUBE TO REAR PILLAR
628
CLAMP TUBE TO REAR PILLAR
630
SHEET METAL SCREW ALARM UNIT TO STRUT
630
SHEET METAL SCREW BRACKET TO CAB FLOOR
660
TUBE IN LUGGAGE COMPARTMENT
660
TUBE IN LUGGAGE COMPARTMENT
660
TUBE IN LUGGAGE COMPARTMENT, 033 102016 123 329278 130 276373 133 008387 223 100393
664
TUBE IN LUGGAGE COMPARTMENT
666
CLIP CABLE HARNESS TO ROOF RAIL
667
CLIP13 MM, Replaced By: A0129884678
668
INSULATION150 MM, TO BE ADAPTED DURING ASSEMBLY
999
STAY
999
LOCK. PIN LOCK ORNAMENTAL COVER TO BUMPER
