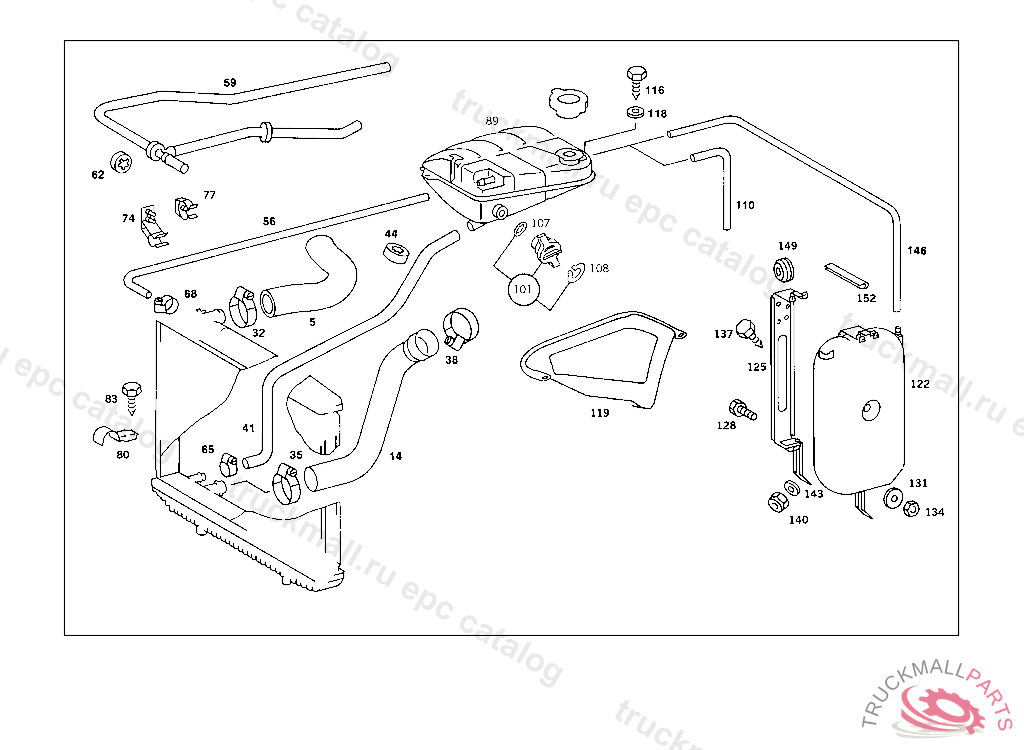

Поз.
Артикул
Описание
5
HOSE TOP, ONLY FOR JAPAN,AUSTRALIA AND SWEDEN
14
HOSE BOTTOM, ONLY APPLICABLE TO ECE VERSION WITH CATALYST SYSTEM FOR SWITZERLAND FROM IDENT NO. 032 041062
32
LOOM TIE. CLAMP HOSE FASTENING
32
CLAMP , Replaced By: A0069974390
35
LOOM TIE
38
CLAMP , Replaced By: A0069970690
38
LOOM TIE. CLAMP BRAKE HOSE 45-55 MM, DISCONTINUED,PART IS NO LONGER REQUIRED
41
HOSE , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS: 033 009947 120 005029, Replaced By: A1265011882
41
HOSE FROM EXPANSION TANK TO RADIATOR
56
HOSE , Replaced By: N000000000734
56
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
59
HOSE BREATHER LINE BETWEEN RADIATOR AND EXPANSION TANK
62
RUBBER RING
65
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
65
CLAMP PRESSURE REGULATOR
68
CLAMP , Replaced By: A0059970190
68
CLAMP , Replaced By: A1409950036
68
HOSE CLAMP LINE MOUNTING
74
BRACKET , Replaced By: A1265010220
74
BRACKET RIGHT FRONT
77
BRACKET JACK FIXTURE
80
CLAMP , Replaced By: A1239950320
80
CLAMP , UP TO CHASSIS107.024 012078 107.044 029875
83
SHEET METAL SCREW BRACKET TO CAB FLOOR, EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 5 180559
89
TANK EXPANSION TANK
89
TANK , Replaced By: A1265000349
89
TANK , Replaced By: A1265001549, +001A0005010044, +001A0129970348, +001N000471030002
101
COVER , Replaced By: A1265000084
101
COVER PARTS KIT TO 1245000649, A 136172 F 025324
107
SEAL RING
108
LOCK RING MAIN SHAFT,FRONT
110
HOSE , Replaced By: A0219977682
116
SHEET METAL SCREW
118
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
118
WASHER , Replaced By: N009021005205
122
TANK , Replaced By: A1265000549, +001A1264300310, +003N000933004067, +003N000934004006, +003N009021004108
122
TANK OVERFLOW, ONLY FOR USE WITH AIR CONDITIONER,OR WITH AIR CONDITIONING AUTOMATICS
125
BRACKET
128
SCREW AT INSTRUMENT PANEL M 4X16,036897
131
WASHER COVERING TO CYCLONE AIR TRAP
131
WASHER , Replaced By: N009021004207
134
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
137
SHEET METAL SCREW BRACKET TO CAB FLOOR
143
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
146
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
146
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
149
GROMMET MAIN CABLE HARNESS THRU WINDOW SILL 36X25 MM
152
EDGE GUARD SECTION , Replaced By: A0029873572
