Главная
›
Mercedes
›
CAR
›
500 SEL SONDERSCHUTZ/SPECIAL EDITION
›
126.037
›
83 HEATING AND VENTILATION
›
165 AIR GUIDE IL. 3

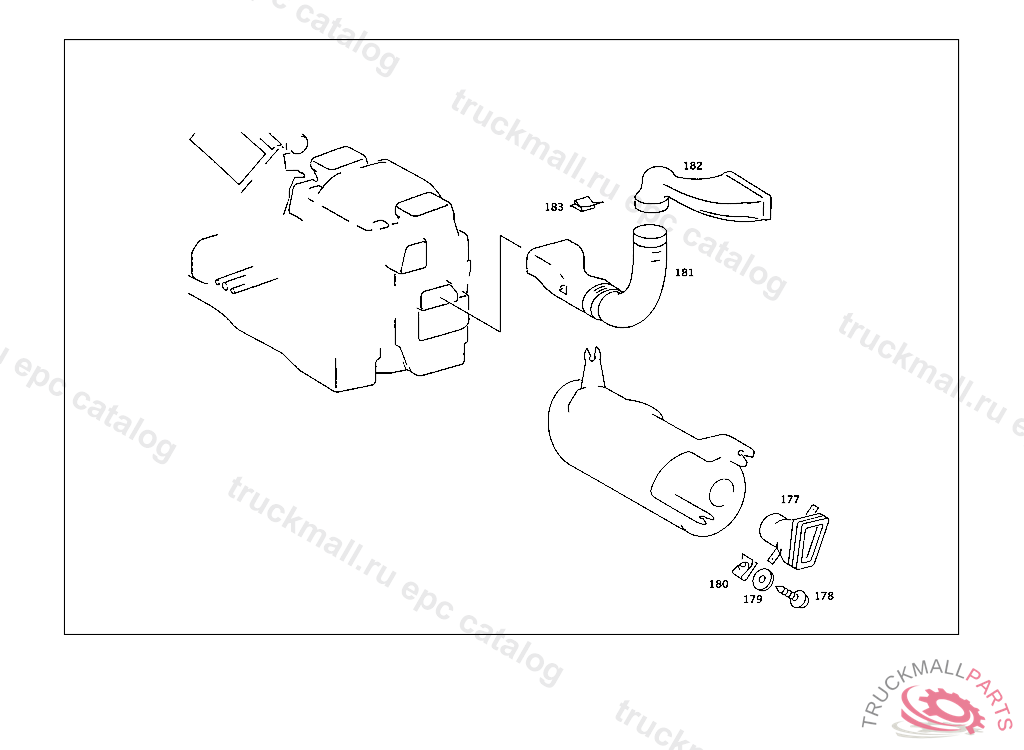

Mercedes A1268317646 -
500 SEL SONDERSCHUTZ/SPECIAL EDITION 126.037
83 HEATING AND VENTILATION - 165 AIR GUIDE IL. 3
Поз.
Артикул
Описание
177
A1268302144
AIR DUCT LEFT FRONT DOOR
178
N914127004207
SHEET METAL SCREW CONTROL UNIT TO COVERING,LATERAL LEFT
179
N009021005205
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
179
N009021005202
WASHER , Replaced By: N009021005205
180
A0049944545
CLIP-TYPE NUT BRACKET TO RELAY PLATE, A 994528 F 110300
180
A0009947245
LOCK BRACKET TO CROSS MEMBER
181
A1268322188
HOSE , Replaced By: A1268317646
181
A1268317646
DUCT , Replaced By: A1268317746
181
A1268315846
DUCT , Replaced By: A1268317646
181
A1268317746
DUCT BETWEN HEATER CASE & HOT AIR NOZZLE
182
A1268315746
DUCT BETWEN HEATER CASE & HOT AIR NOZZLE
183
A1239882278
CLIP
