Mercedes N912011006000 - ПРЕДОХРАНИТЕЛЬ

560 SE STANDARD FROM 09/85 126.038

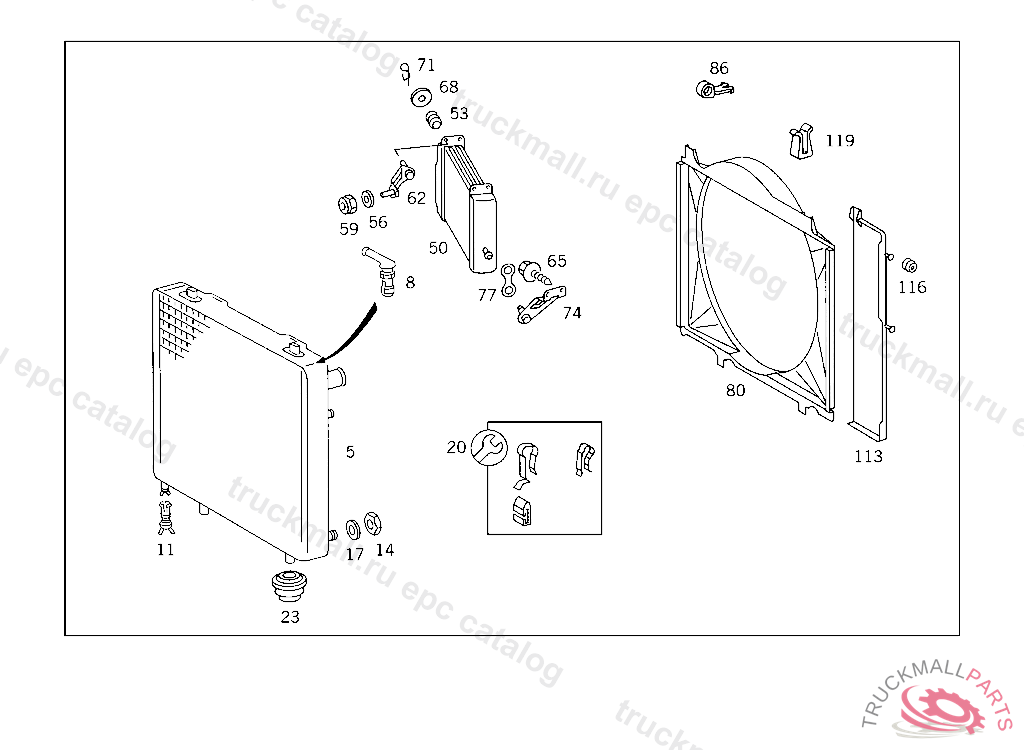

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1

Поз.
Артикул
Описание
5
A1265004803
RADIATOR
11
A0005010171
SCREW WATER DRAIN
14
A0039901651
NUT RADIATOR MOUNTING
17
A0039907740
WASHER RADIATOR MOUNTING
20
A1235000012
REPAIR KIT RADIATOR TO AIR DUCT
23
A1265040012
RUBBER MOUNTING
50
A2015018101
OIL COOLER ENGINE
53
A1265040212
RUBBER MOUNTING OIL COOLER
56
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
56
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
59
N913002006009
NUT OIL TANK TO BRACKET
59
N913002006001
NUT , Replaced By: N913002006009
62
A1265004631
BRACKET OIL COOLER
65
N914128004200
SHEET METAL SCREW
68
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
68
N009021006205
WASHER , Replaced By: N009021006208
71
N912011006000
LOCK OIL COOLER
74
A1265003231
BRACKET OIL COOLER
77
A1265040612
RUBBER MOUNTING , Replaced By: A1245040412
80
A1265050155
FAN SHROUD , ONLY FOR JAPAN,AUSTRALIA AND SWEDEN FOR SWITZERLAND 033 036748 ALSO INSTALLED ON 032377
