Поз.
Артикул
Описание

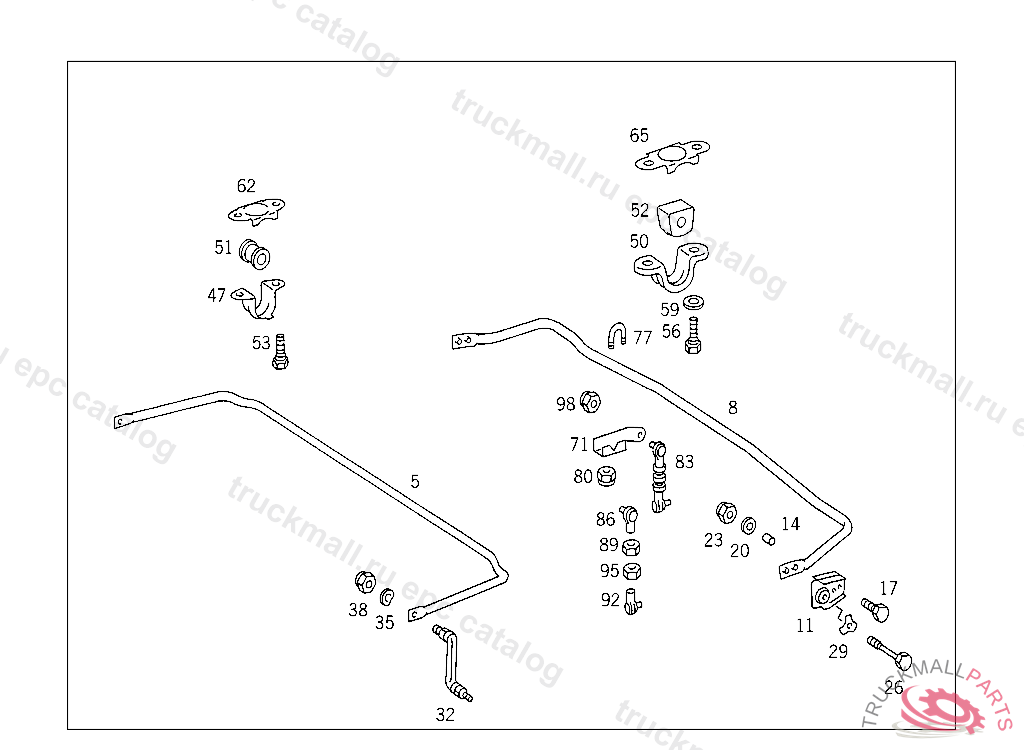

8
TORSION BAR
11
SHACKLE
14
CLAMPING SLEEVE SHACKLE TO TORSION BAR
17
SCREW BRACKET TO CROSS CONNECTION STRUT
17
SCREW , Replaced By: N304017008034
20
WASHER , Replaced By: N000125008443
20
WASHER EXHAUST MUFFLER TO STRAP
23
NUT SWITCH TO FLOOR PLATE
26
SCREW
29
WASHER TORSION BAR TO REAR AXLE
50
CLAMP TORSION BAR TO FRAME
52
RUBBER MOUNTING TORSION BAR TO FRAME
56
SCREW BRACKET TO BODY
59
WASHER
65
LOCK TORSION BAR TO FRAME
71
LEVER AT TORSION BAR,A 383213
77
MOUNTING BOW LEVER TO TORSION BAR
80
NUT RELAY TO BRACKET M5
80
NUT , Replaced By: N913023005002
83
ROD FROM TORSION BAR TO SELF-LEVELLING UNIT
86
JOINT R.H. THREAD
89
NUT BALL PIVOT TO LEVER
92
JOINT L.H. THREAD
95
NUT L.H. THREAD
98
NUT PUMP TO BRACKET
98
NUT , Replaced By: N913004006001
98
NUT HEATING PIPE TO BRACKET
