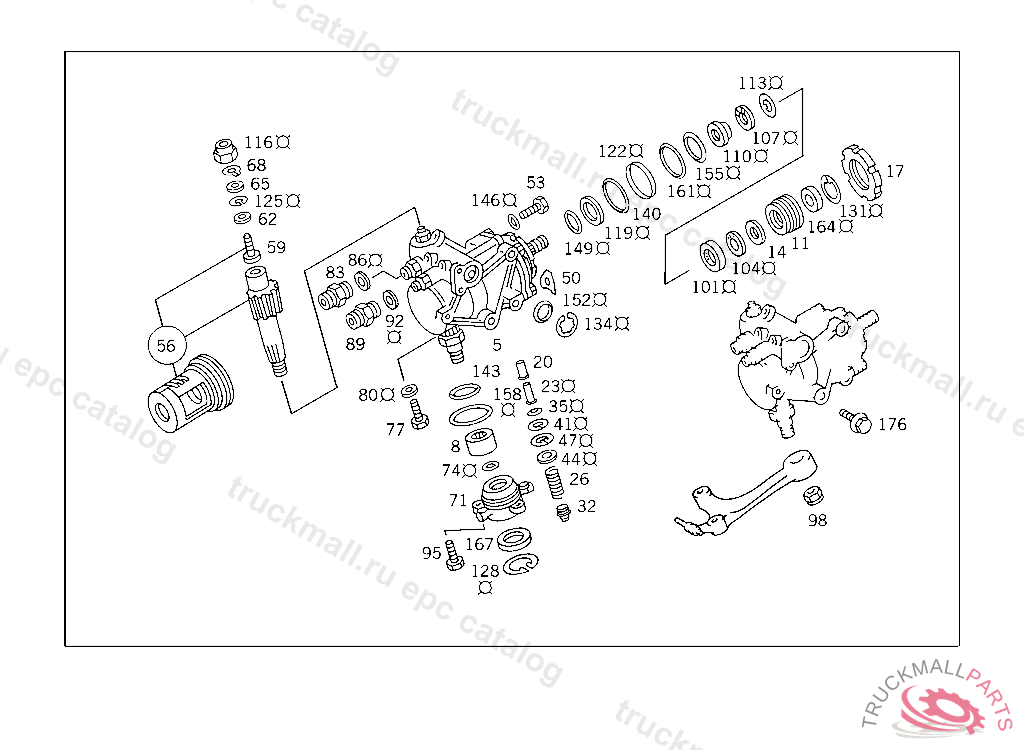

Поз.
Артикул
Описание
5
STEERING BOX ASSEMBLY , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
NEEDLE BEARING
11
THREADED INSERT
14
WASHER
17
NUT
20
BUSHING
23
PIN
26
SPRING , 1F 058035 2F 052098
26
SPRING , 1F 058034 2F 052097
32
COVER , 1F 058034 2F 052097
35
SEAL RING , 1F 058034 2F 052097
41
LOCK , 1F 058034 2F 052097
44
THRUST WASHER , 1F 058034 2F 052097
47
LOCK , 1F 058034 2F 052097
50
LOCK , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
53
SCREW BRACKET TO CROSS MEMBER
56
STEERG. WORM SECTOR SHAFT PARTS KIT
59
SCREW
62
THRUST WASHER2.65 MM
62
THRUST WASHER3.10 MM
62
THRUST WASHER2.95 MM
62
THRUST WASHER2.85M
62
THRUST WASHER2.70 MM
62
THRUST WASHER3.05 MM
62
THRUST WASHER2.80 MM, TO BE ADAPTED DURING ASSEMBLY
62
THRUST WASHER2.75 MM
62
THRUST WASHER3.00 MM
62
THRUST WASHER2.80 MM, Replaced By: A1074620262
65
THRUST WASHER SHOCK ABSORBER TO TOP BRACKET
68
LOCK RINGTO 000 553 37 01,000 553 39 01,
71
STEERING BOX COVER
74
SEAL RING VALVE
77
SCREW PLUG
80
SEAL RING SCREW PLUG
83
SCREW FITTING
86
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
89
SCREW FITTING
92
SEAL RING LINE CONNECTION
95
SCREW
98
NUT DRAG LINK END M 24X1.5
101
NEEDLE BEARING
104
ROLLER BEARING
107
ROLLER BEARING
110
ANGULAR CONTACT BEARING
113
WASHER
116
NUT
116
NUT , Replaced By: A0009904050
119
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
122
SEAL RING
125
LOCK
128
LOCK TOP TO 387 460 14 09
131
LOCK
134
LOCK
140
SEAL RINGTO 388 476 71 69
143
SEAL RING
146
SEAL RING VALVE
149
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
152
SEAL RING
155
SEAL RING , 000 10/50,12/52 056283 20/60,22/62 057848 003 10/50,12/52 026979 20/60,22/62 027742 102,103 10/50,12/52 029862 20/60,22/62 041002 105 10/50,12/52 051237 20/60,22/62 052678
158
SEAL RING
161
SEAL RING
164
SEAL RING
164
SEAL RING , Replaced By: A0199975147
164
SEAL RING , Replaced By: A0119976746
167
SEAL RING , Replaced By: A0199975047
167
SEAL RING
176
SCREW STEERING TO FRAME
