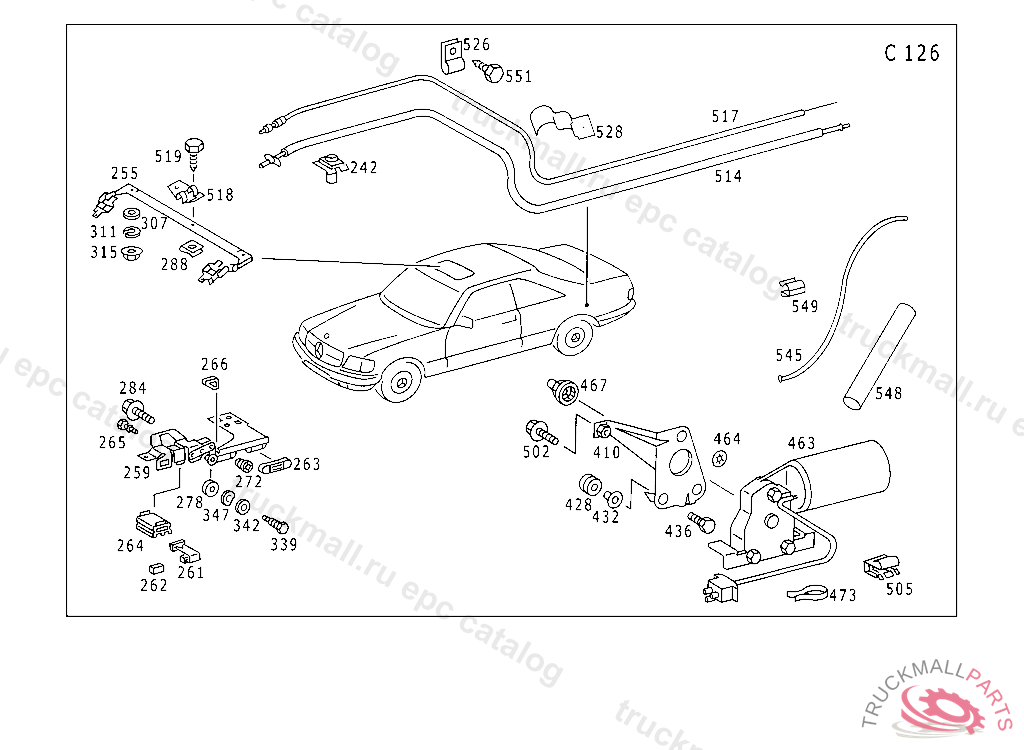

Поз.
Артикул
Описание
242
SCREW
255
BRIDGE (TRANSPORT BRIDGE)
259
ANGLE RIGHT
259
ANGLE LEFT
261
ANGLE REAR
262
SLIDING JAW AT LIFTING BOW
263
SLIDING JAW , Replaced By: A1267820130
264
GUIDE
265
SCREW
266
STOP
272
MOUNTING
278
ROLLER
284
SCREW
288
LOCK INSTRUMENT PANEL TO PANELLING
307
WASHER BOOT TO CAB FLOOR
311
LOCK WASHER T-FITTING TO BRACKET
315
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
339
SCREW
342
WASHER BOOT TO CAB FLOOR
347
LOCK WASHER T-FITTING TO BRACKET
410
BRACKET
428
GROMMET GEARING TO BRACKET
432
BUSHING MOTOR TO BRACKET
436
SCREW COVER PLATE TO BRACKET
436
SCREW PUMP TO BRACKET
463
ELECTRIC MOTOR ELECTRIC SLIDING ROOF, 033 102016 123 329278 130 276373 ORDER ADDITIONALLY: 3X FUSE 000 994 89 45
464
LOCK. PIN LOCK ORNAMENTAL COVER TO BUMPER
467
CAP , 126.021 004329 022,023 014560 032,033 006154 036,037 005336 120 000196
473
CLIP
502
HEXAGON HEAD BOLT
505
CLIP PLUG TO REAR PILLAR
514
TUBE FROM MOTOR TO SLIDING ROOF PLATE
517
CABLE
518
SHACKLE AT TRANSPORT BRIDGE
519
SHEET METAL SCREW BRACKET TO CAB FLOOR
526
CLAMP TUBE TO REAR PILLAR
528
CLAMP TUBE TO REAR PILLAR
545
TUBE IN LUGGAGE COMPARTMENT, 053 026854 153 002103 243 016628
545
TUBE IN LUGGAGE COMPARTMENT
545
TUBE IN LUGGAGE COMPARTMENT
548
INSULATION150 MM, TO BE ADAPTED DURING ASSEMBLY
549
CLIP CABLE HARNESS TO ROOF RAIL
551
SHEET METAL SCREW BRACKET TO CAB FLOOR
