Поз.
Артикул
Описание

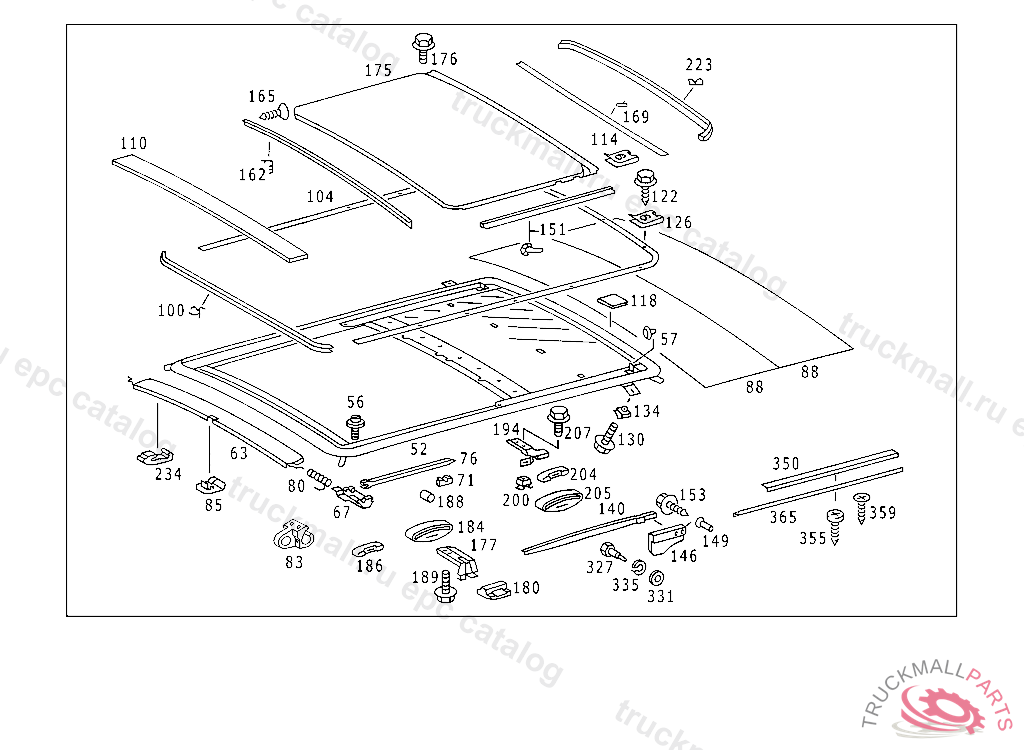

52
FRAME WITH DRAFT DEFLECTOR
52
FRAME WITH DRAFT DEFLECTOR, UP TO IDENT NO. DELIVER ADDITIONALLY 1X 123 782 03 13 043 000188 050 000300 053 001202
56
SCREW BOTTOM FRAME
57
RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
63
DRAFT DEFLECTOR ,123A 232400
67
MOUNTING FRONT LEFT
67
MOUNTING FRONT RIGHT
71
MOUNTING LATERAL
76
LEVER LEFT
76
LEVER RIGHT
80
SPRING LEFT
80
SPRING RIGHT
83
STAY
85
MOUNTING CENTRAL
88
FOAM PLASTICS FRONT ROOF RAIL
100
SEAL BOTTOM FRAME
104
SEAL BETWEEN TOP AND BOTTOM FRAMES
110
PAD BOTTOM FRAME,CENTRAL REAR
114
LOCK INSTRUMENT PANEL TO PANELLING
118
CLIP
122
SHEET METAL SCREW
126
LOCK FRAME TO REINFORCEMENT FRAME
130
HEXAGON HEAD BOLT
134
NUT RETAINER BOTTOM FRAME TO REAR LEFT AND RIGHT ROOF RAILS
134
NUT RETAINER , Replaced By: A3229900091
140
RAIL LEFT, A 372464 ALSO INSTALLED ON A 372469,A 372476,A 372477,A 372483,A 372490,A 372493,A 372505,A 372517,A 372519,A 372525,A 372539,A 372548,A 372572,A 372614, A 373051.EXCEPT FOR A 371956 F 348473
140
RAIL RIGHT, A 372464 ALSO INSTALLED ON A 372469,A 372476,A 372477,A 372483,A 372490,A 372493,A 372505,A 372517,A 372519,A 372525,A 372539,A 372548,A 372572,A 372614, A 373051.EXCEPT FOR A 371956 F 348473
146
STOP LEFT
146
STOP LEFT
146
STOP RIGHT
146
STOP RIGHT
149
RIVET
151
SEAL480 MM
153
SCREW
162
COVER RAIL BOTTOM FRAME,FRONT, 043 000189 050 000301 053 001203
162
COVER RAIL BOTTOM FRAME,FRONT, UP TO CHASSIS123.043 000188 050 000300 053 001202
165
SHEET METAL SCREW
169
PAD
175
SLIDING ROOF PLATE
176
SCREW
177
ANGLE LEFT FRONT, 033 114994 123 413673 130 310026 133 035427 223 172221
177
ANGLE LEFT FRONT, 033 114993 123 413672 130 310025 133 035426 223 172220
177
ANGLE FRONT RIGHT
177
ANGLE RIGHT FRONT, 033 114993 123 413672 130 310025 133 035426 223 172220
180
SLIDING JAW RIGHT
180
SLIDING JAW LEFT
184
SLIDING JAW , 023 143560 033 058449 123 130866 130 149678
186
SLIDING JAW
188
GROMMET
189
SCREW
194
ANGLE REAR RIGHT
194
ANGLE REAR LEFT
200
NUT RETAINER
204
SLIDING JAW , 023 143560 033 058449 123 130866 130 149678
205
SLIDING JAW
207
SCREW
223
SEAL SLIDING ROOF PLATE,REAR
234
SLIDE DRAFT DEFLECTOR
327
SCREW
331
WASHER BOOT TO CAB FLOOR
335
LOCK WASHER T-FITTING TO BRACKET
350
SLIDING RAIL FRAME,LEFT
350
SLIDING RAIL FRAME,RIGHT
350
SLIDING RAIL FRAME,LEFT
350
SLIDING RAIL FRAME,RIGHT
355
SCREW
359
SCREW
365
SLIDING RAIL LEFT
365
SLIDING RAIL RIGHT
