Поз.
Артикул
Описание

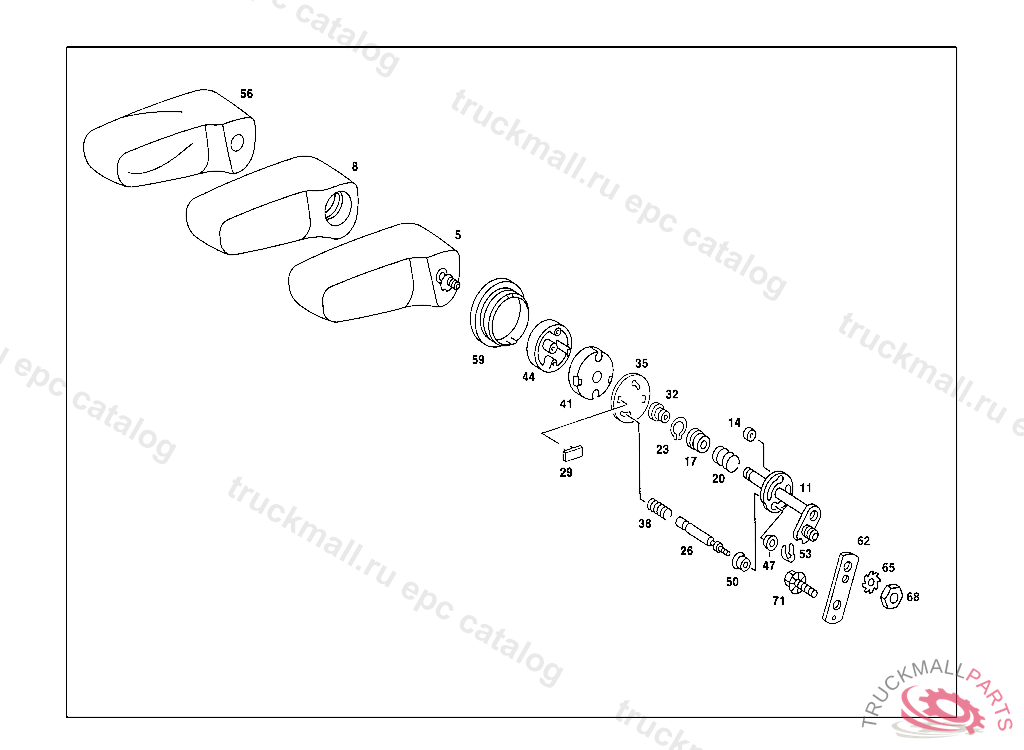

5
FOLDING ARMREST
5
FOLDING ARMREST ,A 479890 NO.9A88I NO.5B01I NO.8E94I NO.8E95I NO.8E93I NO.6B54I NO.3B35I NO.7C29I I
5
FOLDING ARMREST
5
FOLDING ARMREST , NO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
5
FOLDING ARMREST , Replaced By: A1269708930
5
FOLDING ARMREST , Replaced By: A1269709030
5
FOLDING ARMREST , Replaced By: A1269709130
8
FOLDING ARMREST
8
FOLDING ARMREST ,A 373733
11
SUPPORT ,A 373733
11
SUPPORT
14
ROLLER
17
BUSHING
17
BUSHING ,F 055237
20
SPRING ,F 055237
20
SPRING
23
LOCK RING BEARING BRACKET,4 972621
23
LOCK RING
26
PIN
29
RUBBER BUFFER USED WITH IMITATION LEATHER TRIM, 123 297292 EXCEPT FOR 306113-347407 133 002319 EXCEPT FOR 004116-012658
32
RUBBER BUFFER
35
PLATE
35
PLATE , A 233177 F 006123
38
SPRING USED WITH LEATHER AND VELOURS TRIM, 123 297292 133 002319
41
INSERT USED WITH IMITATION LEATHER TRIM, 123 297292 EXCEPT FOR 306113-347407 133 002319 EXCEPT FOR 004116-012658
44
CAP USED WITH IMITATION LEATHER TRIM, 123 297292 EXCEPT FOR 306113-347407 133 002319 EXCEPT FOR 004116-012658
47
BUSHING USED WITH LEATHER AND VELOURS TRIM, 123 297292 133 002319
50
BUSHING USED WITH LEATHER AND VELOURS TRIM, 123 297292 133 002319
53
LOCK HOSE FASTENING
56
COVER , NO.9A84I NO.5A98I NO.8E78I NO.8E79I NO.8E80I NO.6B52I NO.3B32I NO.7C12I I
56
COVER
56
COVER
56
COVER
59
RUBBER RING
62
PLATE
65
TOOTHED WASHER SENDER UNIT TO BRACKET
68
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
71
SCREW CONSOLE TO STEERING COLUMN M 8X16
