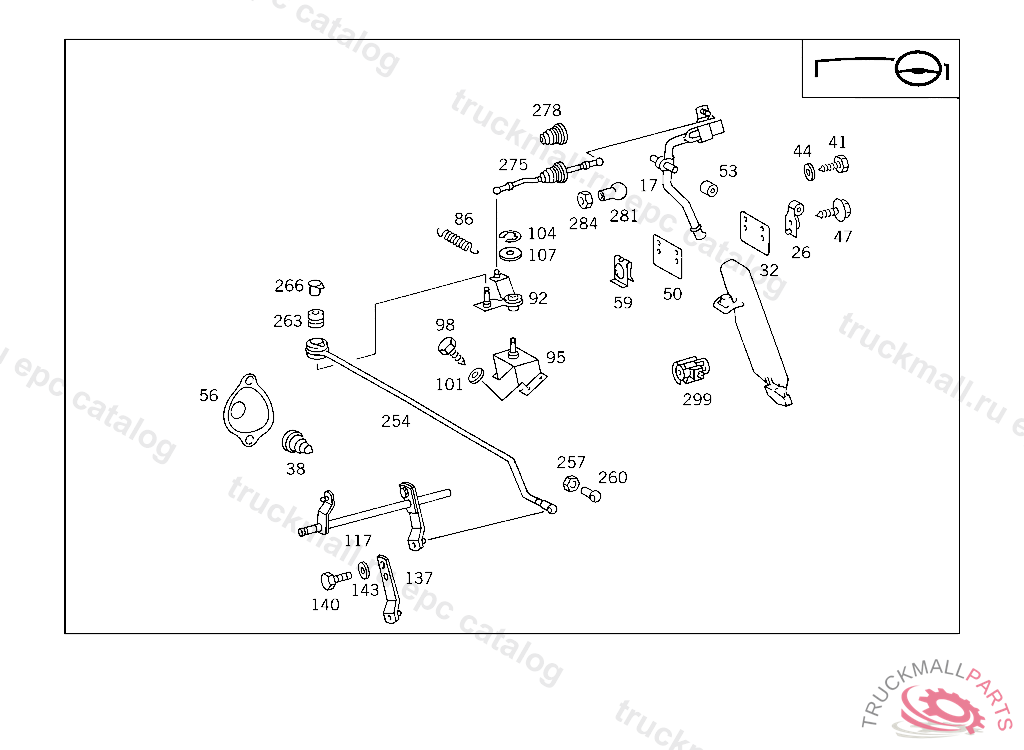

Поз.
Артикул
Описание
17
LEVER ACCELERATOR PEDAL
26
BEARING
32
SHIM BEARING TO FIRE WALL
38
BOOT BEARING TO FIRE WALL
41
SHEET METAL SCREW RIGHT TOP ANTINOISE CAPSULE TO CAB B 6.3X25
44
WASHER COMPRESSED AIR LINE TO BRACKET
44
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
47
COMBINATION BOLT. TAPPING SCREW , Replaced By: N000000000548
47
TAPPING SCREW PROTECTIVE GRILLE 4.8X16 MM
50
GASKET BEARING TO FIRE WALL
53
SPACER RING
56
BRACKET
59
LOCK
59
LOCK , Replaced By: A0029945545
86
SPRING ACCELERATOR PEDAL RESET, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
92
LEVER
95
BEARING BRACKET
98
SHEET METAL SCREW BRACKET TO CAB FLOOR
101
WASHER , Replaced By: N000125004319
101
WASHER BRACKET TO SUPPORT
104
LOCK PLATE RELEASE LEVER TO SHAFT
107
FITTED WASHER
117
SHAFT
137
LEVER (CONTROL LEVER)
140
SCREW COVER PLATE TO COVER PLATE M 6 X 12
140
SCREW , Replaced By: N304017006018
143
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
143
WASHER COMPRESSED AIR LINE TO BRACKET
254
ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT
257
NUT TACHOGRAPH TO BRACKET
260
CONICAL CUPTO 102 070 09 75
260
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
260
BALL SOCKET , Replaced By: A0009918922
263
RUBBER BUFFER
266
BUSHING
275
ROD
278
GROMMET
281
CONICAL CUPTO 102 070 09 75
281
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
284
NUT TACHOGRAPH TO BRACKET
299
SWITCH (KICK-DOWN SWITCH)
