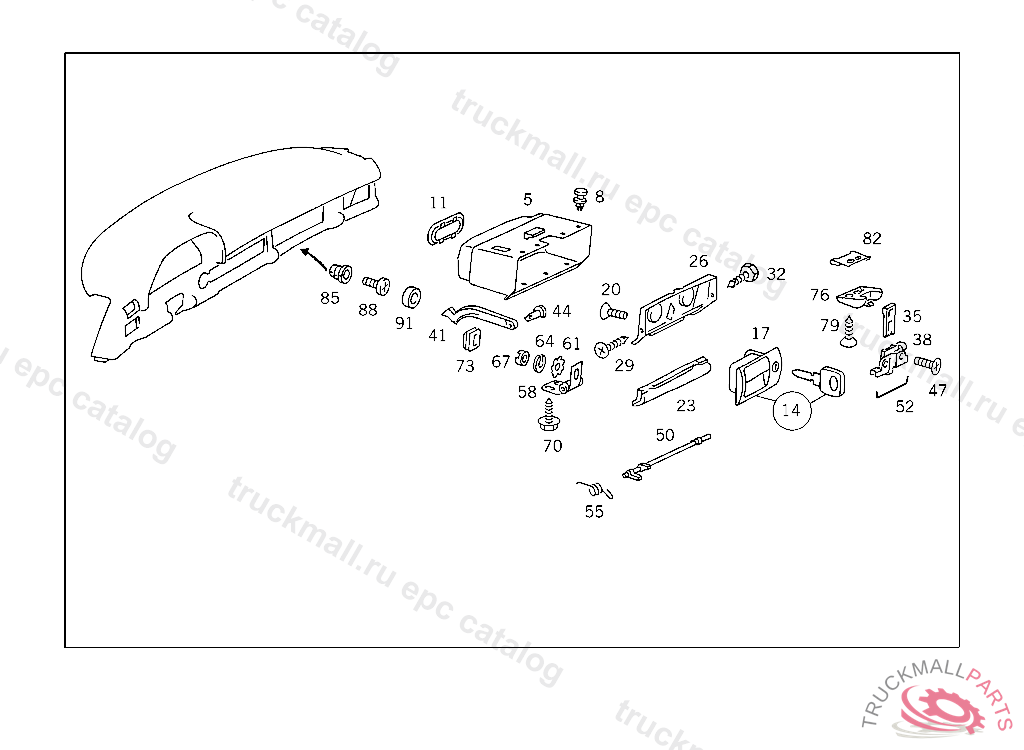

Поз.
Артикул
Описание
5
GLOVE COMPARTMENT , TO BE ADAPTED DURING ASSEMBLY
8
RIVET
11
COVERING GLOVE COMPARTMENT
14
FASTENER WITH KEY
17
FASTENER LESS KEY, STATE LOCK NUMBER WHEN ORDERING
20
SCREW WASHER TO STEERING COLUMN BRACKET M 4X10,4 231945
23
GLOVE COMPARTMENT LID OUTSIDE PART,NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BI IIIIIIII
26
COVER INSIDE PART
29
SHEET METAL SCREW
29
SHEET METAL SCREW , Replaced By: N007982003238
32
SHEET METAL SCREW BRACKET TO PROTECTIVE GRILL
35
CLAMP GLOVE COMPARTMENT LID INTERIOR PART
38
CLAMP GLOVE COMPARTMENT LID RETAINER GUIDE
41
STOP GLOVE COMPARTMENT LID RETAINER GUIDE
44
PIN LOCK TO GLOVE COMPARTMENT LID
47
SCREW WASHER TO STEERING COLUMN BRACKET M 4X10,4 231945
50
ROD GLOVE COMPARTMENT LID LOCKING MECHANISM
52
SPRING GLOVE COMPARTMENT LID RETAINER GUIDE
55
SPRING GLOVE COMPARTMENT LID LOCKING MECHANISM
58
HINGE GLOVE COMPARTMENT LID
61
LOCK HINGE TO GLOVE COMPARTMENT LID,F 078641
64
LOCK WASHER PLUG SOCKET TO REAR CROSS MEMBER
67
NUT
70
SHEET METAL SCREW BRACKET TO PROTECTIVE GRILL
73
GROMMET GLOVE COMPARTMENT LID TO INSTRUMENT PANEL
76
STRIKER GLOVE COMPARTMENT LID
79
SHEET METAL SCREW
82
LOCK
85
TREENAIL
88
SCREW
91
LOCKING CAP
