Mercedes A0005010171 - Болт

300 SD USA TO 09/85 126.120

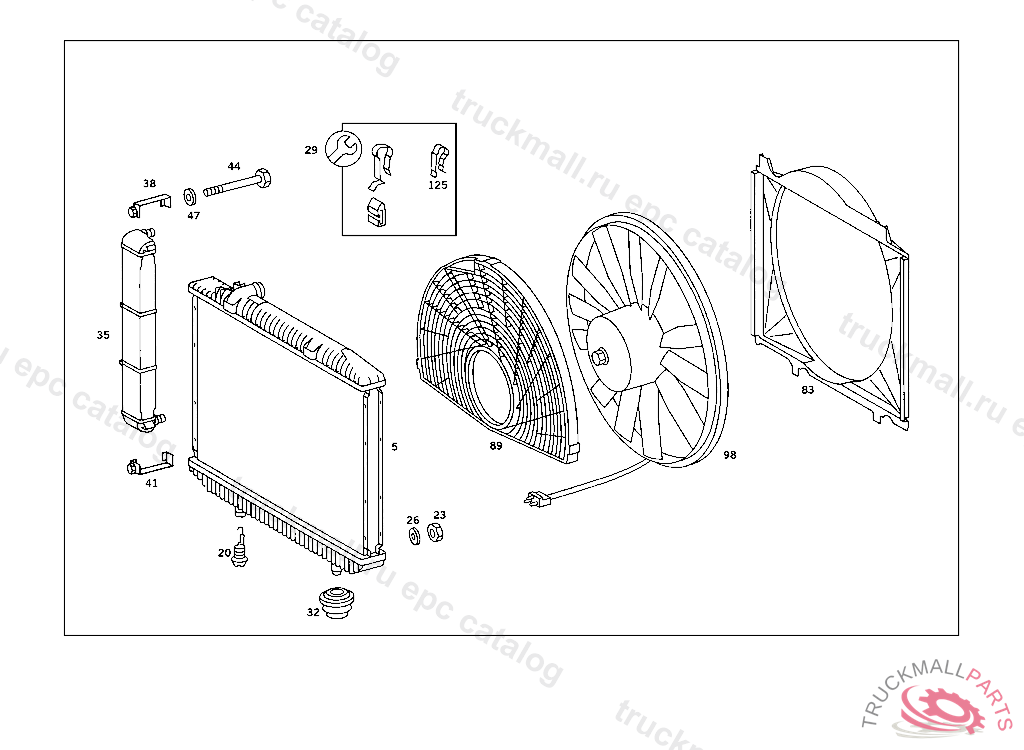

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1

Поз.
Артикул
Описание
20
A0005010171
SCREW WATER DRAIN
23
A0039901651
NUT RADIATOR MOUNTING
26
A0039907740
WASHER RADIATOR MOUNTING
29
A1235000012
REPAIR KIT RADIATOR TO AIR DUCT
32
A1265040012
RUBBER MOUNTING
35
A1261800065
OIL COOLER
38
A0005010520
BRACKET TOP
38
A1265001231
BRACKET , Replaced By: A0005010520
41
A1265001331
BRACKET , Replaced By: A0005010620
41
A0005010620
BRACKET BOTTOM
44
N000931006191
SCREW DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
47
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
89
A1075030001
PROTECTIVE GRILL
98
A0005004893
BLOWER , Replaced By: A0005006093
98
A0005006093
BLOWER ONLY FOR USE WITH AIR CONDITIONER
125
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
A1235040312
RUBBER MOUNTING , Replaced By: A1235000012
999
A1265040146
CLAMP RADIATOR TO CENTRAL STIFFENING
