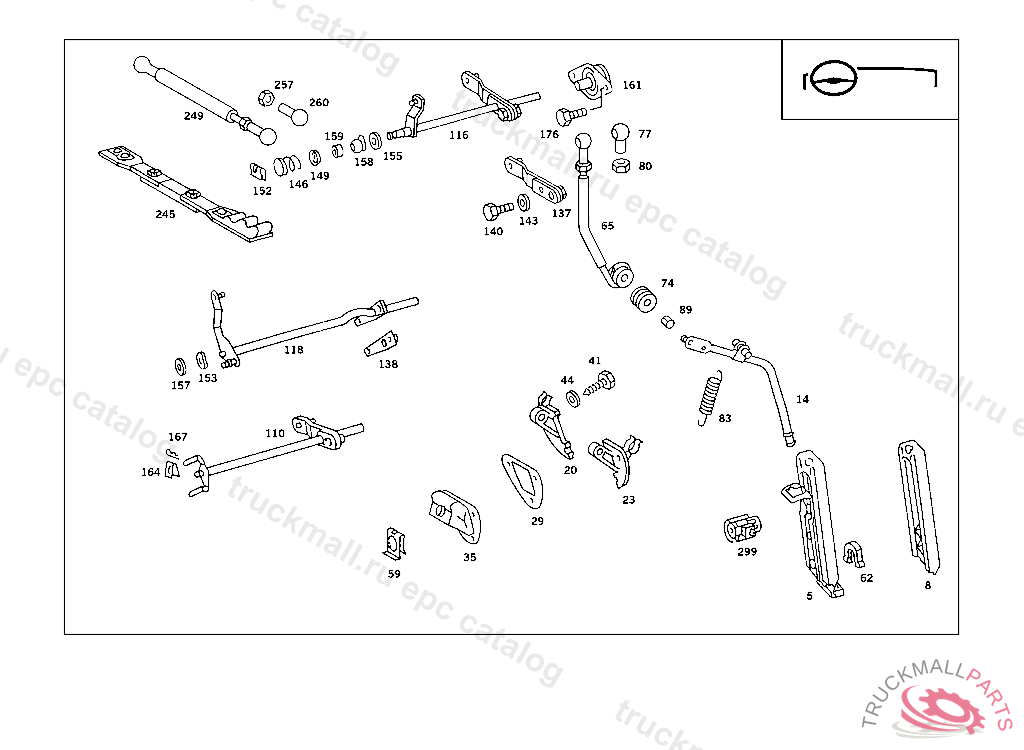

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
PAD , 000 112328 003 056792 007 046654 083 000998 086 000712 093 000557 102,103 091560 105 115062 183 001323 190 001262
14
LEVER ACCELERATOR PEDAL
20
BEARING ACCELERATOR PEDAL
23
BEARING ACCELERATOR PEDAL
29
SHIM BEARING TO FIRE WALL
35
BOOT BEARING TO FIRE WALL
41
SHEET METAL SCREW RIGHT TOP ANTINOISE CAPSULE TO CAB B 6.3X25
44
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
59
LOCK , Replaced By: A0019946045
59
LOCK , Replaced By: A0029945545
59
LOCK
62
BRACKET , Replaced By: A1249888678
62
CLIP
65
ROD ACCELERATOR PEDAL TO BRACKET
74
RUBBER BUFFER
74
RUBBER BUFFER
74
RUBBER BUFFER , Replaced By: A1263010585
77
BALL SOCKET , Replaced By: A0009918922
77
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
80
NUT TACHOGRAPH TO BRACKET
83
SPRING
89
BUSHING BALL SOCKET TO ROD
118
SHAFT
138
LEVER
140
SCREW , Replaced By: N304017006018
140
SCREW COVER PLATE TO COVER PLATE M 6 X 12
143
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
152
CLIP , Replaced By: N000000002965
153
SPRING WASHER SHIFTING CYLINDER TO YOKE
157
SPACER RING CONTROL SHAFT TO ENGINE
161
BRACKET
176
SCREW
176
SCREW , Replaced By: N910106006000
249
ROD
299
SWITCH , NOT USED
299
SWITCH , NOT USED
