Mercedes A1265005303 - РАДИАТОР

300 SDL USA FROM 09/85 126.125

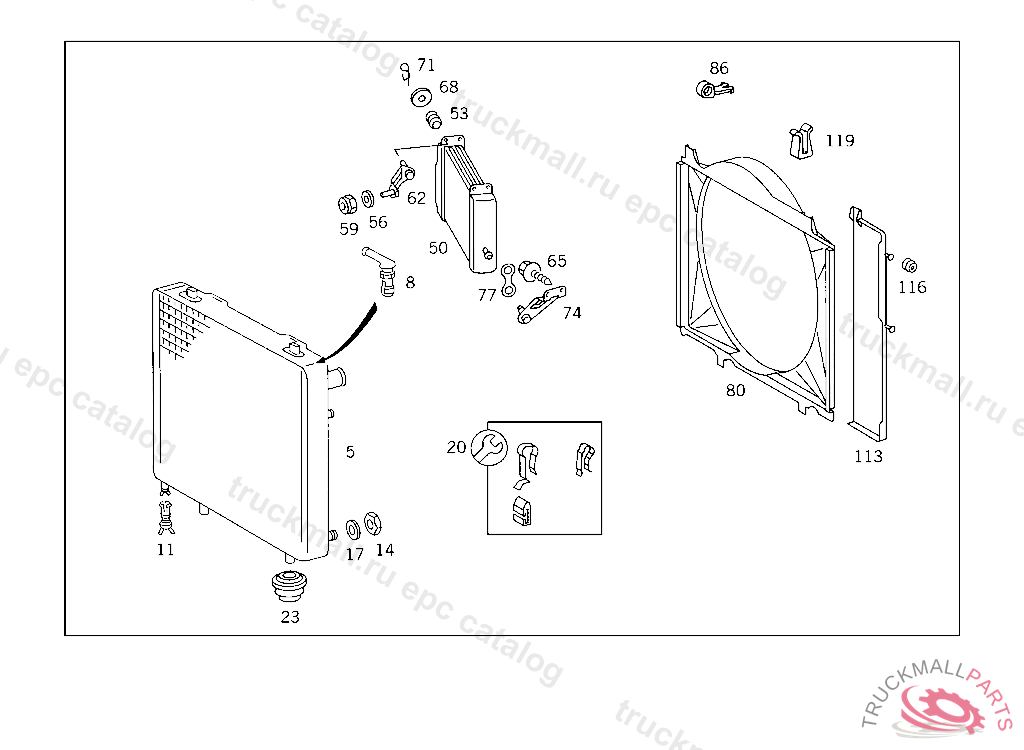

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1

Поз.
Артикул
Описание
5
A1265005303
RADIATOR
5
A1265002703
RADIATOR , Replaced By: A1265005303
11
A0005010171
SCREW WATER DRAIN
14
A0039901651
NUT RADIATOR MOUNTING
17
A0039907740
WASHER RADIATOR MOUNTING
20
A1235000012
REPAIR KIT RADIATOR TO AIR DUCT
23
A1265040012
RUBBER MOUNTING
50
A6031800065
OIL COOLER , Replaced By: A2015000200
50
A2015000200
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.B 065821, Replaced By: A2015018201
50
A2015018201
OIL COOLER ENGINE
53
A1265040212
RUBBER MOUNTING OIL COOLER
56
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
59
N913002006009
NUT OIL TANK TO BRACKET
62
A1265004131
BRACKET OIL COOLER,A 350796
62
A1265004831
BRACKET OIL COOLER,A 350797
65
N914128004200
SHEET METAL SCREW
71
N912011006000
LOCK OIL COOLER
74
A1265003131
BRACKET OIL COOLER
77
A1265040612
RUBBER MOUNTING , Replaced By: A1245040412
80
A1265051755
FAN SHROUD
