Mercedes A1265005303 - РАДИАТОР

350 SD USA FROM 09/85 126.134

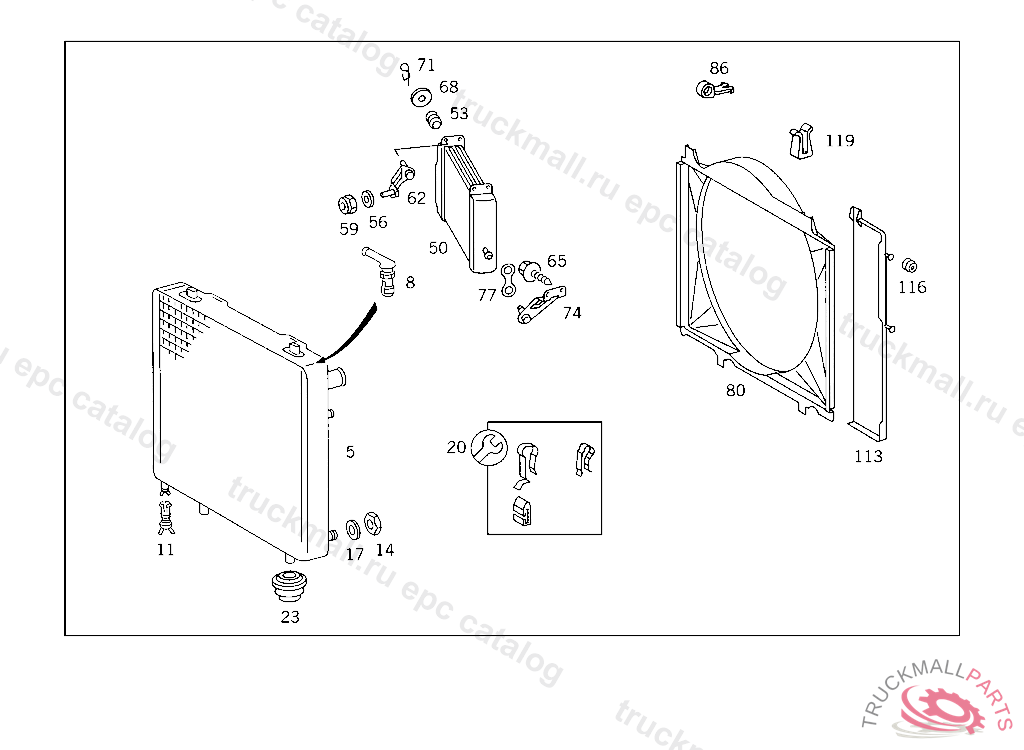

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1

Поз.
Артикул
Описание
5
A1265005303
RADIATOR
5
A1265002703
RADIATOR , Replaced By: A1265005303
11
A0005010171
SCREW WATER DRAIN
14
A0039901651
NUT RADIATOR MOUNTING
17
A0039907740
WASHER RADIATOR MOUNTING
20
A1235000012
REPAIR KIT RADIATOR TO AIR DUCT
23
A1265040012
RUBBER MOUNTING
50
A2015018201
OIL COOLER ENGINE
56
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
56
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
59
N913002006001
NUT , Replaced By: N913002006009
59
N913002006009
NUT OIL TANK TO BRACKET
62
A1265004831
BRACKET OIL COOLER,A 350797
62
A1265004631
BRACKET OIL COOLER
65
N914128004200
SHEET METAL SCREW
68
N009021006205
WASHER , Replaced By: N009021006208
68
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
74
A1265003131
BRACKET OIL COOLER
77
A1265040612
RUBBER MOUNTING , Replaced By: A1245040412
80
A1265051755
FAN SHROUD
116
A1265050081
GROMMET COVERING TO RADIATOR,FRONT LEFT, NOT FOR USE WITH AIR CONDITIONER NOR WITH AIR CONDITIONING AUTOMATICSA 496760
