350 SD USA FROM 09/85
126.134
35 REAR AXLE
001 HYDRAULIC SYSTEM USED WITH AUTOMATIC LOCKING DIFFERENTIAL (ASD) (FOR TYPE R129,W IL.4

Mercedes N000125006421 - КРЕПЕЖ

350 SD USA FROM 09/85 126.134

35 REAR AXLE - 001 HYDRAULIC SYSTEM USED WITH AUTOMATIC LOCKING DIFFERENTIAL (ASD) (FOR TYPE R129,W IL.4

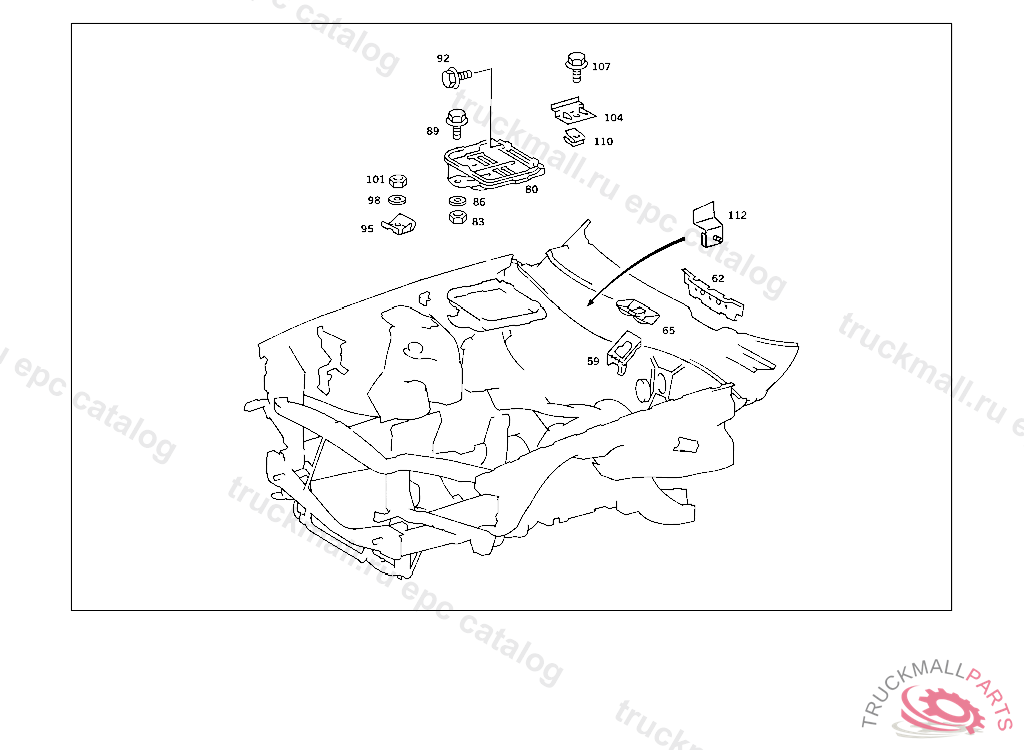

Поз.
Артикул
Описание
59
A1266261411
PLATE STEERING COLUMN JACKET TUBE CONSOLE, LEFT
62
A1266260916
REINFORCEMENT STEERING COLUMN JACKET TUBE CONSOLE, LEFT
65
A1266262716
REINFORCEMENT STEERING COLUMN JACKET TUBE CONSOLE
80
A1266200418
FRAME BATTERY,RIGHT
83
N000934006007
NUT BALL PIVOT TO LEVER
86
N009021006205
WASHER , Replaced By: N009021006208
86
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
89
N914007006000
COMBINATION BOLT BATTERY FRAME TO CONSOLE, TOP
92
N910105006002
HEXAGON HEAD BOLT
92
N914126006001
SCREW , Replaced By: N910105006002
95
A1236260242
RAIL BATTERY
98
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
98
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
101
N000934006007
NUT BALL PIVOT TO LEVER
112
A1266203714
BRACKET HORN
