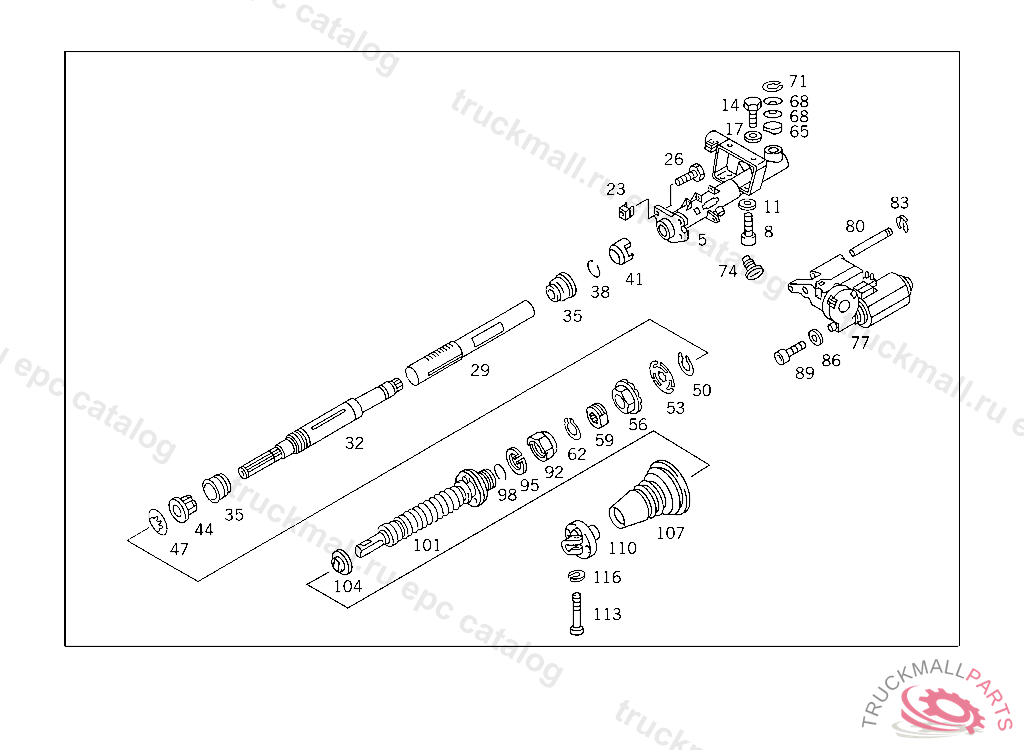

Поз.
Артикул
Описание
5
STEER. COLUMN JACKET TUBE OUTSIDE
8
SCREW BEARING BRACKET TO TRANSMISSION
8
SCREWM 6X16
11
WASHER LINE TO CROSS AND SIDE MEMBERS
14
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
14
SCREW , Replaced By: N304017008016
17
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
23
NUT RETAINER HEATER UNIT TOP BRACKET TO BODY
26
SCREW PUMP TO BRACKET
26
SCREW , Replaced By: N304017006016
29
STEER.COLUMN JACKET TUBE , Replaced By: A1244621220
29
STEER.COLUMN JACKET TUBE INSIDE, ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
32
STEERING SHAFT , Replaced By: A1264602109
32
STEERING SHAFT TOP
35
BALL BEARING
38
SNAP RING
41
RING
44
CONICAL SLEEVE , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
47
DISC SPRING , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
50
LOCK RING , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
53
LOCK
56
NUT
59
SCREW COLLAR , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN
62
LOCK RING. RETAINING RING ROLLER TO BRACKET TO 957 891 03 20, 04 20
65
THRUST WASHER , Replaced By: A1244600422
65
CLAMPING PIECE
68
CLAMPING PIECE
68
DISC SPRING , Replaced By: A1244600422
71
LOCK RING21 MM
74
SCREW
77
GEARING
77
GEARING , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN, Replaced By: A1264600325
80
PIN
83
LOCK HOSE FASTENING
86
WASHER , Replaced By: N000125008443
89
SCREW
89
SCREW , Replaced By: N000000000190
92
NUT
95
SPRING
95
SPRING , Replaced By: A1294620011
98
LOCK
101
STEERING SHAFT BOTTOM
104
SEAL RING
107
BOOT
110
STEERING COUPLING
113
SCREW
113
SCREW , Replaced By: A2029902101
116
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
