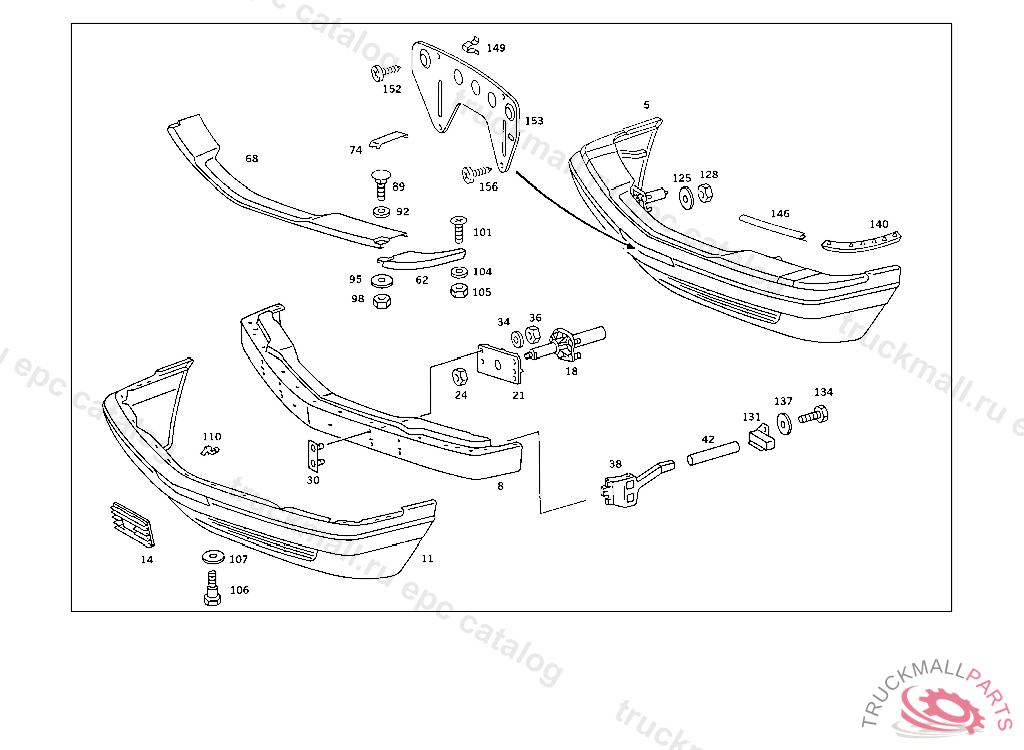

Поз.
Артикул
Описание
5
FRONT BUMPER FACE BAR WITH COVERING
8
FRONT BUMPER FACE BAR LESS COVERING
11
PANELLING FRONT BUMPER
14
FLAP RIGHT,TOWING BRACKET
18
ENERGY-ABSORBING UNIT , Replaced By: A1268801135
18
ENERGY-ABSORBING UNIT , Replaced By: A1268801235
18
ENERGY-ABSORBING UNIT FRONT LEFT FICHTEL & SACHS
18
ENERGY-ABSORBING UNIT FRONT RIGHT SUSPA
21
PLATE RIGHT, TO ENERGY-ABSORBING UNIT
21
PLATE LEFT, TO ENERGY-ABSORBING UNIT
24
NUT BRACKET TO SIDE MEMBER,K 035196
24
NUT , Replaced By: N308673014001
30
BRACKET ENERGY-ABSORBING UNIT PLATE TO BUMPER
34
WASHER , Replaced By: N000125008443
36
NUT
36
NUT , Replaced By: N304032008006
38
BRACKET FRONT OUTSIDE LEFT
38
BRACKET FRONT OUTSIDE RIGHT
42
HOSE OUTSIDE BRACKET TO FRONT BUMPER
62
FENDER SKIRT BUMPER PANELLING,RIGHT
62
FENDER SKIRT BUMPER PANELLING,LEFT
68
FENDER SKIRT BUMPER PANELLING,CENTRAL
74
BUMPER JOINT COVER ORNAMENTAL COVER JOINT,LEFT
74
BUMPER JOINT COVER ORNAMENTAL COVER JOINT,RIGHT
89
SCREW BRACKET TO FENDER,K 104588
92
WASHER LEFT AND RIGHT ORNAMENTAL COVERS TO CENTRAL ORNAMENTAL COVER
95
WASHER BRACKET TO LEFT SIDE MEMBER
98
NUT , Replaced By: N304032008006
98
NUT
101
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
104
WASHER COMPRESSED AIR LINE TO BRACKET
104
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
105
NUT BALL PIVOT TO LEVER
106
SCREW OUTSIDE BRACKET TO FRONT BUMPER
107
WASHER BRACKET TO LEFT SIDE MEMBER
110
LOCK ORNAMENTAL COVER TO BUMPER AND TO PANELLING
125
WASHER SUPPORT TO SIDE MEMBER,K 186867
128
NUT
128
NUT BRACKET TO SUPPORT AND TO END PIECE
128
NUT , Replaced By: N304032010002
131
BRACKET FOR BUMPER BRACKET,OUTSIDE LEFT
131
BRACKET FOR BUMPER BRACKET,OUTSIDE RIGHT
134
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
134
SCREW , Replaced By: N304017008016
137
WASHER BRACKET TO LEFT SIDE MEMBER
140
SEAL FRONT RIGHT,BETWEEN BUMPER AND FENDER
140
SEAL FRONT LEFT,BETWEEN BUMPER AND FENDER
146
SEAL PANELLING BELOW LIGHTING UNIT
149
BRACKET PLATE TO FRONT BUMPER
152
SCREW FOR LICENSE PLATE
153
PLATE FRONT LICENSE PLATE
156
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
156
SHEET METAL SCREW , Replaced By: N007981004339
156
SHEET METAL SCREW , Replaced By: N000000000459
