Поз.
Артикул
Описание
5

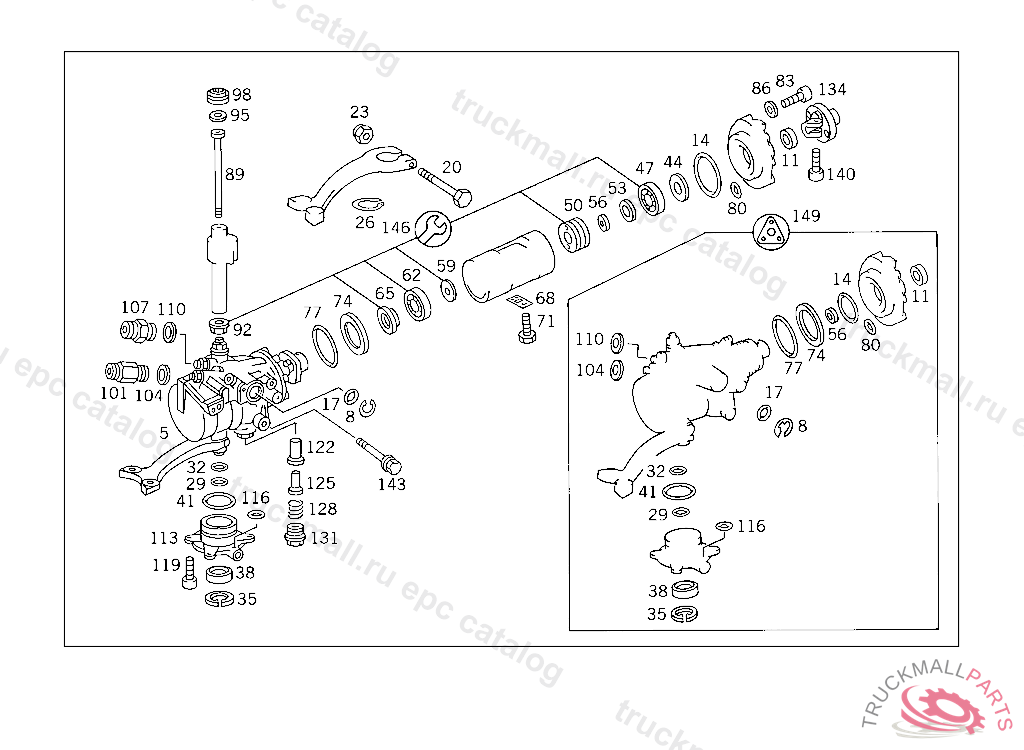

STEERING BOX ASSEMBLY WITH PITMAN ARM, FITTING TO BE REMOVED FROM HIGH PRESSURE CONNECTION TO BE ADAPTED DURING ASSEMBLY PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY , Replaced By: A1294603601
8
LOCK CONTROL VALVE
11
SEAL RING
14
SEAL RING STEERING NUT BEARING 75X3 MM
17
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
20
SCREW , Replaced By: N308676010017
20
SCREW CLAMP, ONE-HOLE
23
HEXAGON NUT
23
NUT , Replaced By: N910113010002
26
LOCK PITMAN ARM TO STEERING BOX ASSEMBLY
29
SEAL RING STEERING WORM SECTOR SHAFT
32
SEAL RING STEERING WORM SECTOR SHAFT
35
LOCK TOP TO 387 460 14 09
38
SEAL RING
38
SEAL RING , Replaced By: A0199975047
41
SEAL RING
44
THRUST WASHER
47
ROLLER BEARING
50
THREADED INSERT
53
WASHER
56
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
59
WASHER
62
ROLLER BEARING
65
ANGULAR CONTACT BEARING
68
LOCK , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
71
SCREW FEED LINE AND RETURN LINE
74
SEAL RING
77
SEAL RING
80
SEAL RING VALVE
83
SCREW. CAP BOLT COVER TO CASE M8X25
83
SCREW , Replaced By: N000912008202
86
WASHER BRACKET TO CROSS MEMBER
89
SCREW
92
NUT
92
NUT , Replaced By: A0009904050
95
THRUST WASHER AS REQUIRED 1.15 MM
95
THRUST WASHER AS REQUIRED 1.10 MM
95
THRUST WASHER AS REQUIRED 0.95 MM
95
THRUST WASHER AS REQUIRED 1.05 MM
95
THRUST WASHER AS REQUIRED 1.00 MM
98
SCREW PLUG
101
FITTING ENGINE BREATHING
104
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
107
FITTING LOW PRESSURE
110
SEAL RINGTO 000 553 03 05,000 553 18 05,
113
STEERING BOX COVER
116
SEAL RING VALVE
119
SCREW
122
BUSHING
125
PIN
128
SPRING , 1F 058035 2F 052098
131
SCREW PLUG
134
STEERING COUPLING
140
SCREW
143
SCREW
143
SCREW , Replaced By: A1299901101
146
REPAIR KIT
149
GASKET KIT
