Mercedes A1295240830 - ОБШИВКА

500 SL USA TO 06/98 129.066

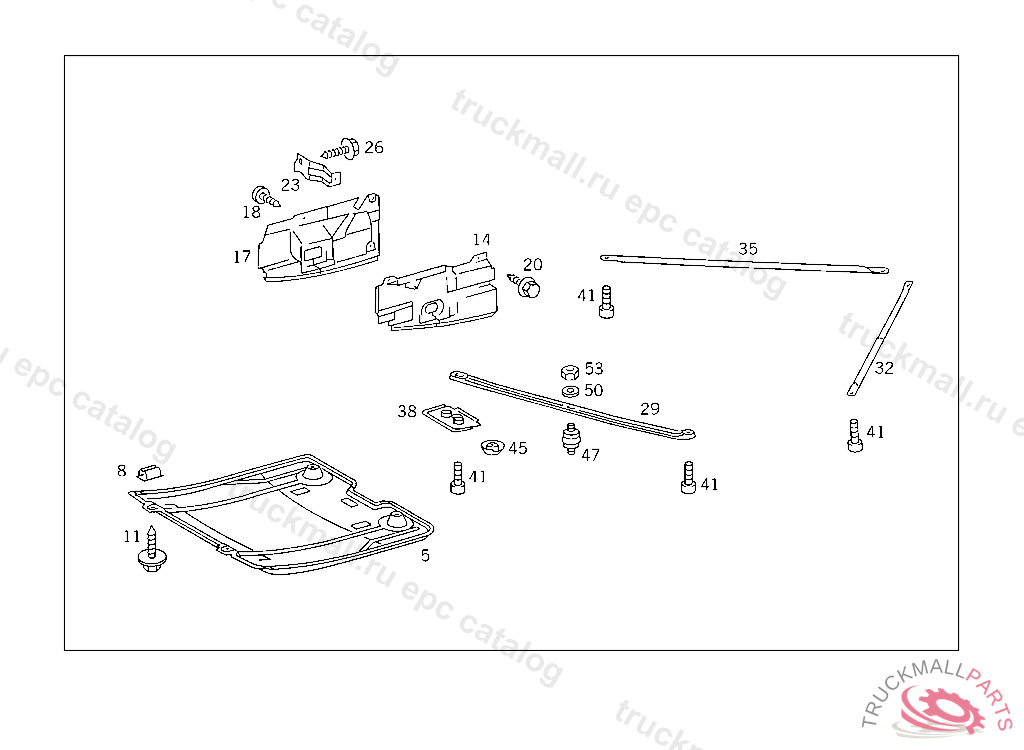

52 CHASSIS SHEET METAL - 015 ENGINE COMPARTMENT PANELLING

Поз.
Артикул
Описание
5
A1295240930
PANELLING ENGINE COMPARTMENT
5
A1295240430
PANELLING , Replaced By: A1295240930
8
A0019949845
LOCK. CLIP-TYPE NUT
11
A2019900536
SCREW. SHEET METAL SCREW
14
A1295241030
PANELLING SIDE PART,LEFT, TO BE ADAPTED DURING ASSEMBLY
14
A1295240530
PANELLING , Replaced By: A1295241030, +001A1295241240, +001N914128004200
17
A1295240830
PANELLING RIGHT SIDE PART
18
N914128004200
SHEET METAL SCREW
20
A2019901136
SCREW
23
A1295240840
BRACKET RIGHT SIDE PART
26
N914128004200
SHEET METAL SCREW
29
A1295240247
STRUT
32
A1295240347
STRUT
35
A1295240447
STRUT
38
A1295240088
COVER PLATE
41
A0019902512
SCREW
41
A0019901612
SCREW , Replaced By: A0019902512
41
A1295240076
WASHER , Replaced By: A0019902512
45
A1295240176
WASHER
47
A1039880111
BUFFER
50
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
50
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
53
N000934006007
NUT BALL PIVOT TO LEVER
